P7136.0X6.0
P7136.0X6.0
P7136.0X6.0

P7136.0X6.0

UGC DOR7059560
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.66 CAD - $23.66 CAD
$23.66 CAD
$23.66 CAD - $23.66 CAD
$23.66 CAD

Vendu en lots de : 1

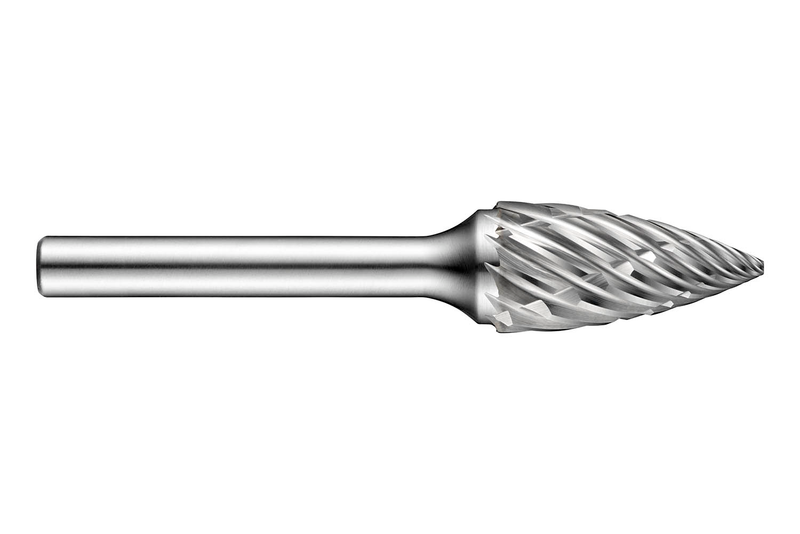

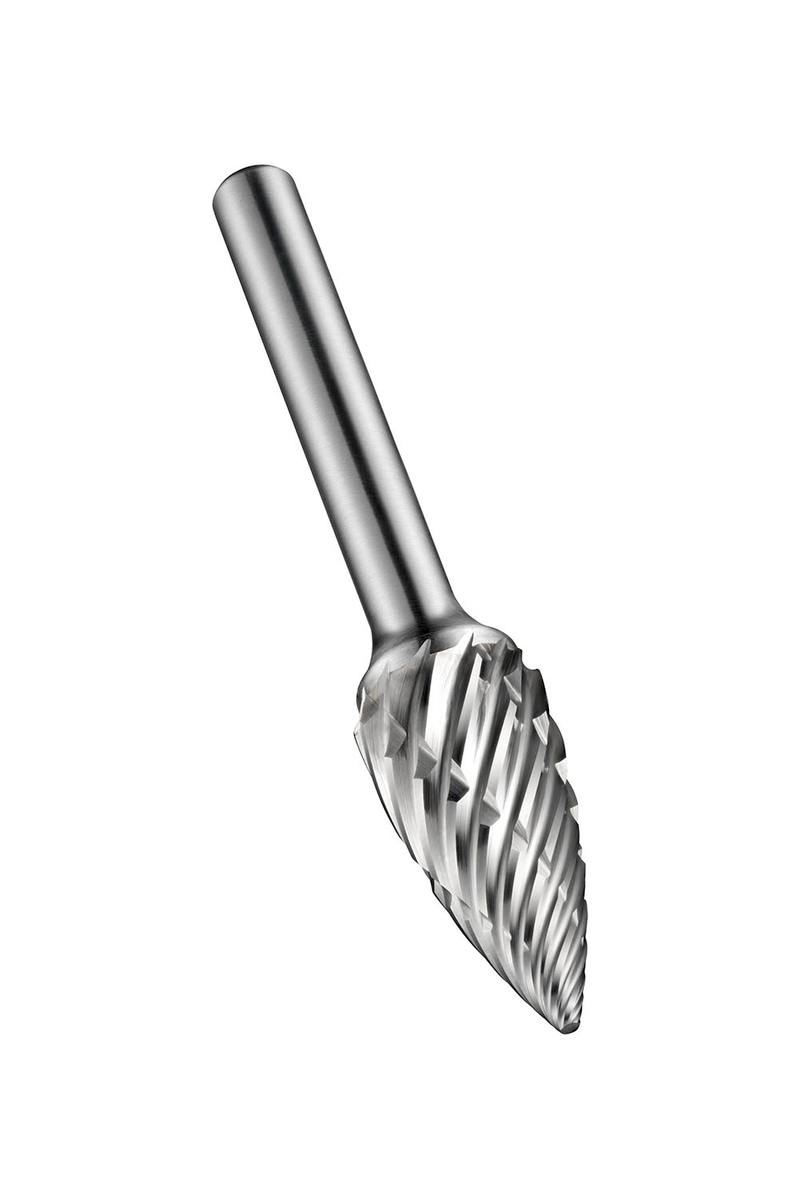

Fraise-lime conique (forme G), diamètre de 6 mm avec longueur de coupe de 18 mm, longueur totale de 50 mm et queue de 6 mm, carbure monobloc avec finition brillante, style de cannelure ST simple coupe avec brise-copeaux et arêtes moyennement espacées pour le contournage multi-angles et la coupe d'angles étroits dans les zones difficiles d'accès dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P7136.0X6.0
GradeLumineux
Product Number7059560
Product FamilyP713

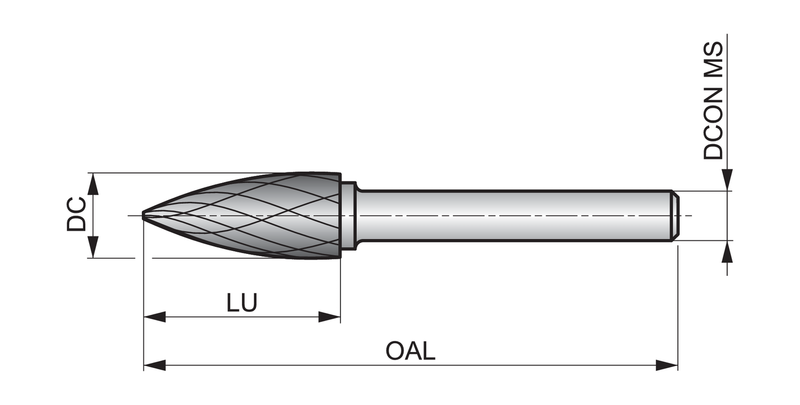

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059560
EAN7320760693360
File Type Download
P7136.0X6.0 — Line Drawing PDF Download
