P7138.0X6.0
P7138.0X6.0
P7138.0X6.0

P7138.0X6.0

UGC DOR7059561
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.69 CAD - $28.69 CAD
$28.69 CAD
$28.69 CAD - $28.69 CAD
$28.69 CAD

Vendu en lots de : 1

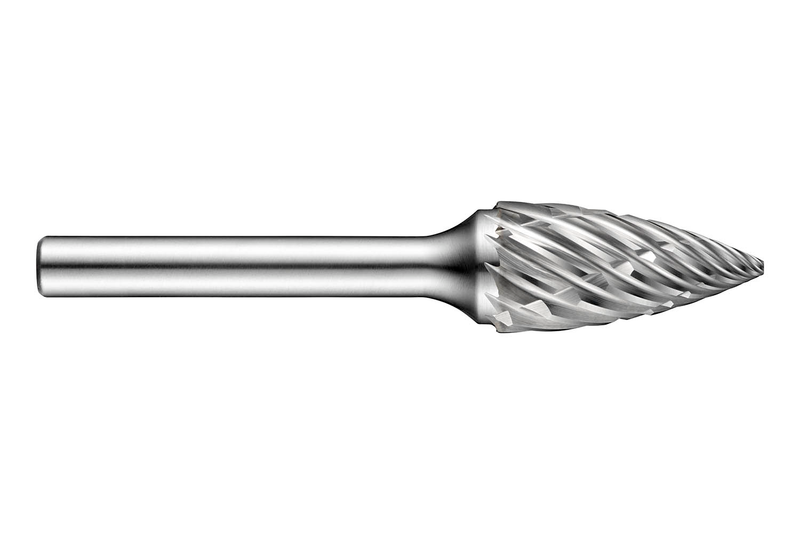

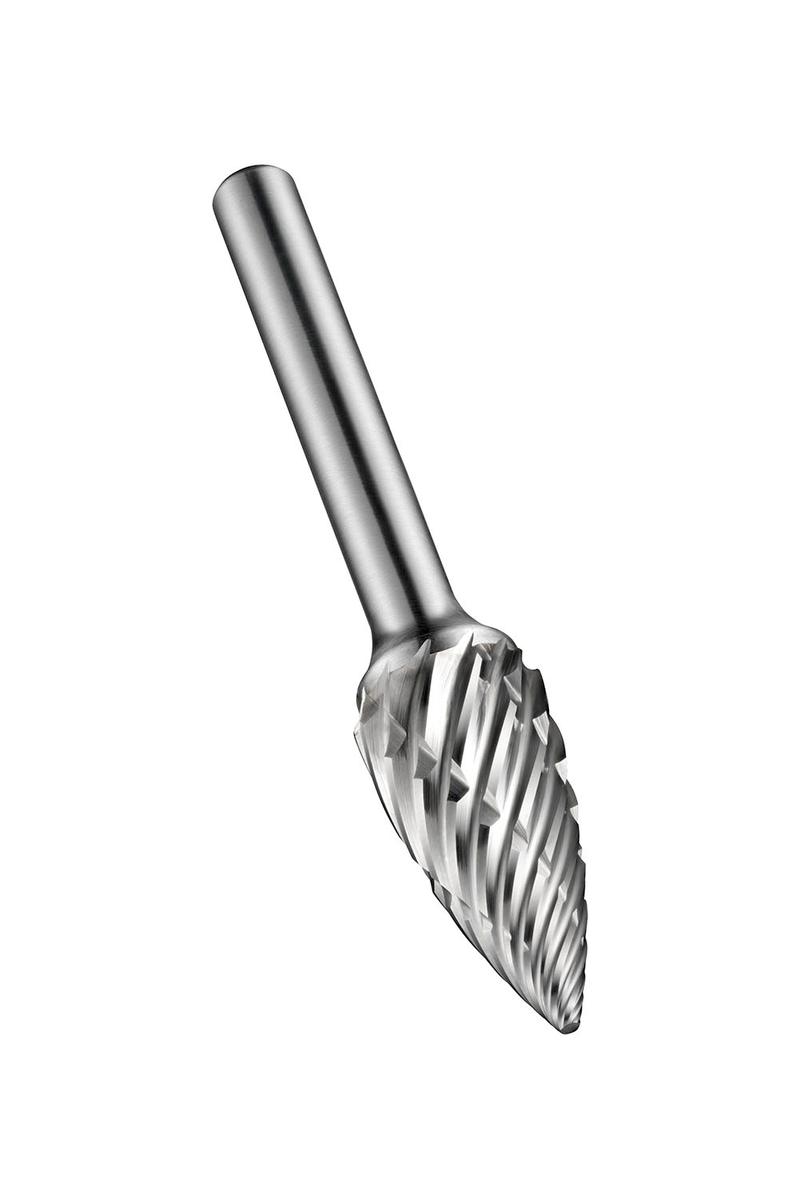

Fraise-lime conique (forme G), diamètre 8 mm avec longueur de coupe 19 mm, longueur totale 64 mm et tige 6 mm, à pointe carbure avec tige en acier trempé et revenu et finition brillante, style de cannelure à coupe unique ST avec brise-copeaux et arêtes espacées moyennes pour le contournage multi-angle et la coupe d'angles étroits dans les zones difficiles d'accès dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P7138.0X6.0
GradeLumineux
Product Number7059561
Product FamilyP713

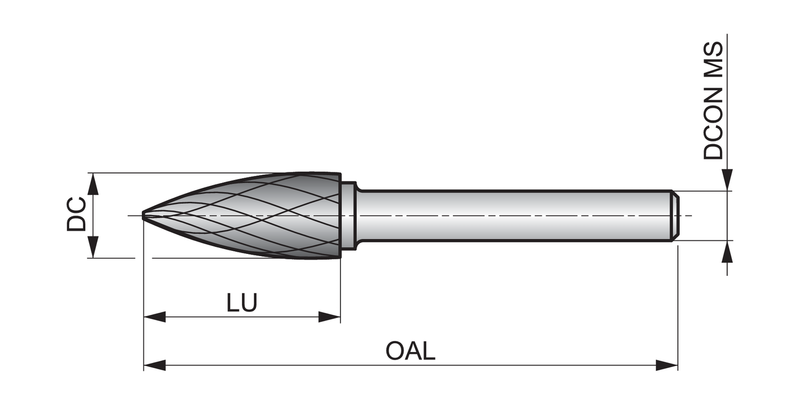

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059561
EAN7320760693377
File Type Download
P7138.0X6.0 — Line Drawing PDF Download
