P7139.6X6.0
P7139.6X6.0
P7139.6X6.0

P7139.6X6.0

UGC DOR7059562
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.03 CAD - $41.03 CAD
$41.03 CAD
$41.03 CAD - $41.03 CAD
$41.03 CAD

Vendu en lots de : 1

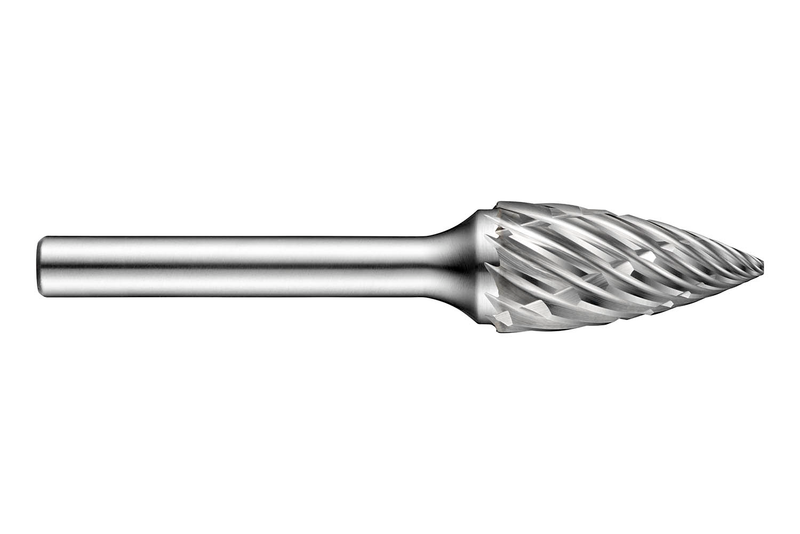

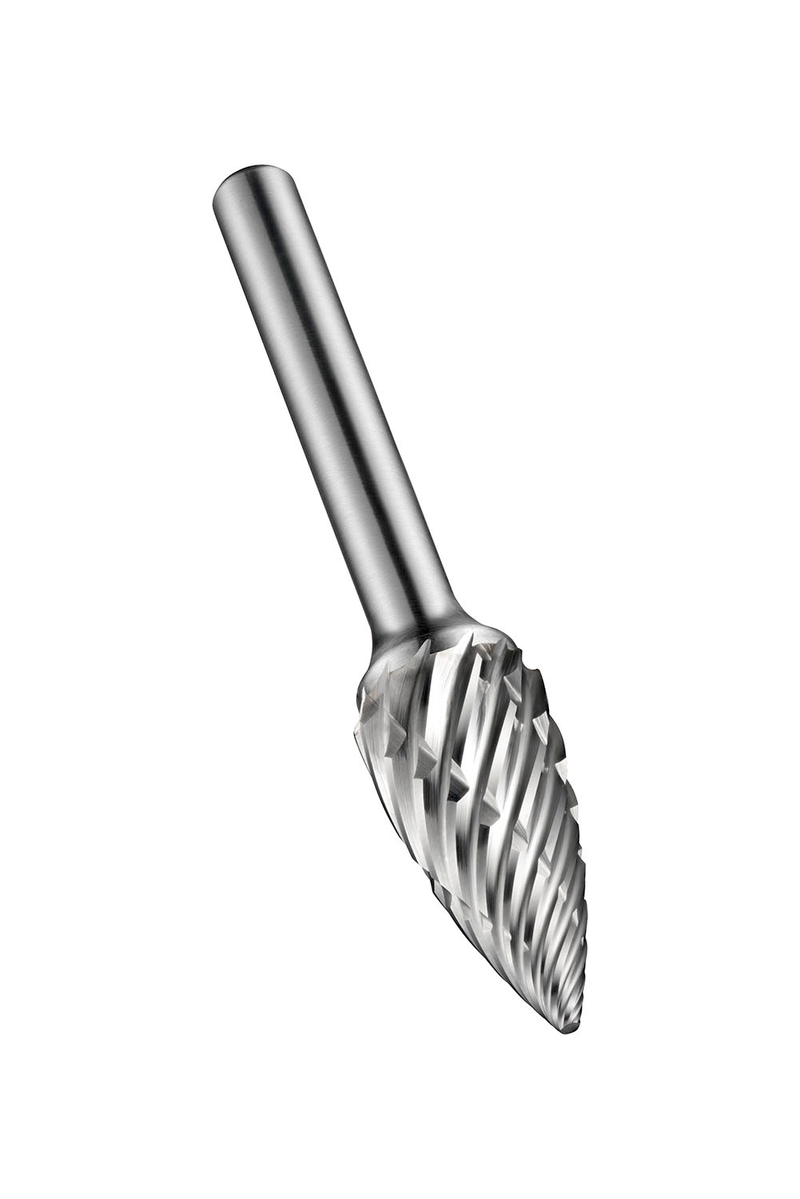

Fraise-lime conique (forme G), diamètre 9,6 mm avec longueur de coupe de 19 mm, longueur totale de 64 mm et queue de 6 mm, à pastilles de carbure avec queue en acier trempé et revenu et finition brillante, style de goujure unique ST avec brise-copeaux et arêtes moyennement espacées pour le profilage multi-angle et la coupe d'angles étroits dans les zones difficiles d'accès dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P7139.6X6.0
GradeLumineux
Product Number7059562
Product FamilyP713

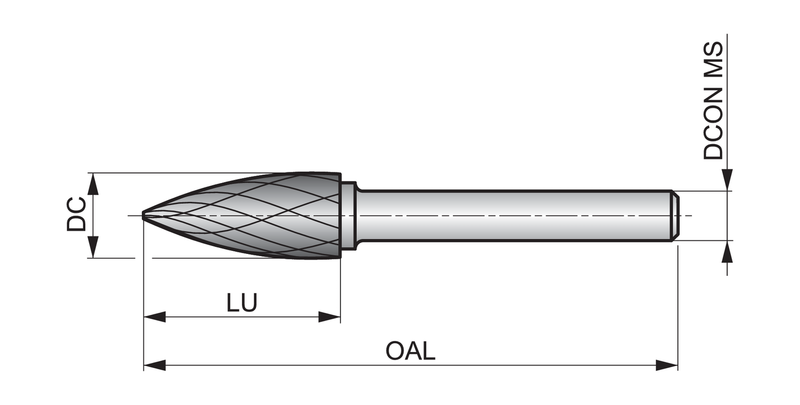

Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059562
EAN7320760693384
File Type Download
P7139.6X6.0 — Line Drawing PDF Download
