P71312.7X6.0
P71312.7X6.0
P71312.7X6.0

P71312.7X6.0

UGC DOR7059563
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.77 CAD - $55.77 CAD
$55.77 CAD
$55.77 CAD - $55.77 CAD
$55.77 CAD

Vendu en lots de : 1

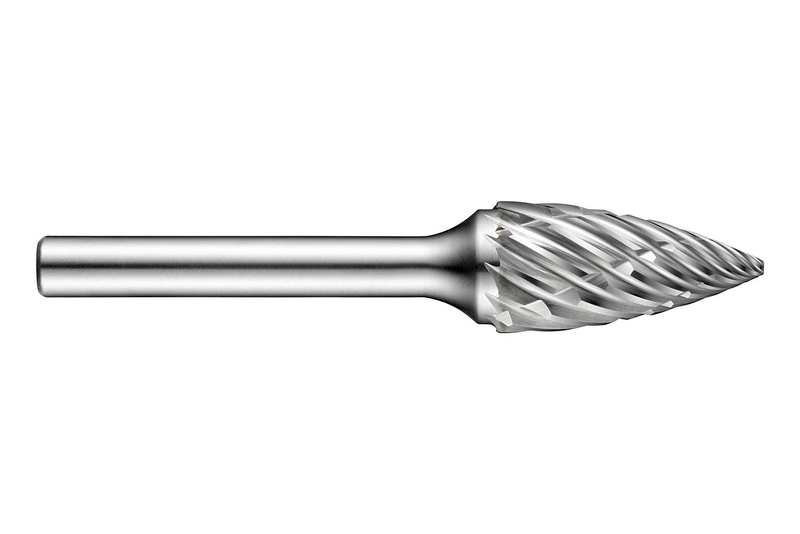

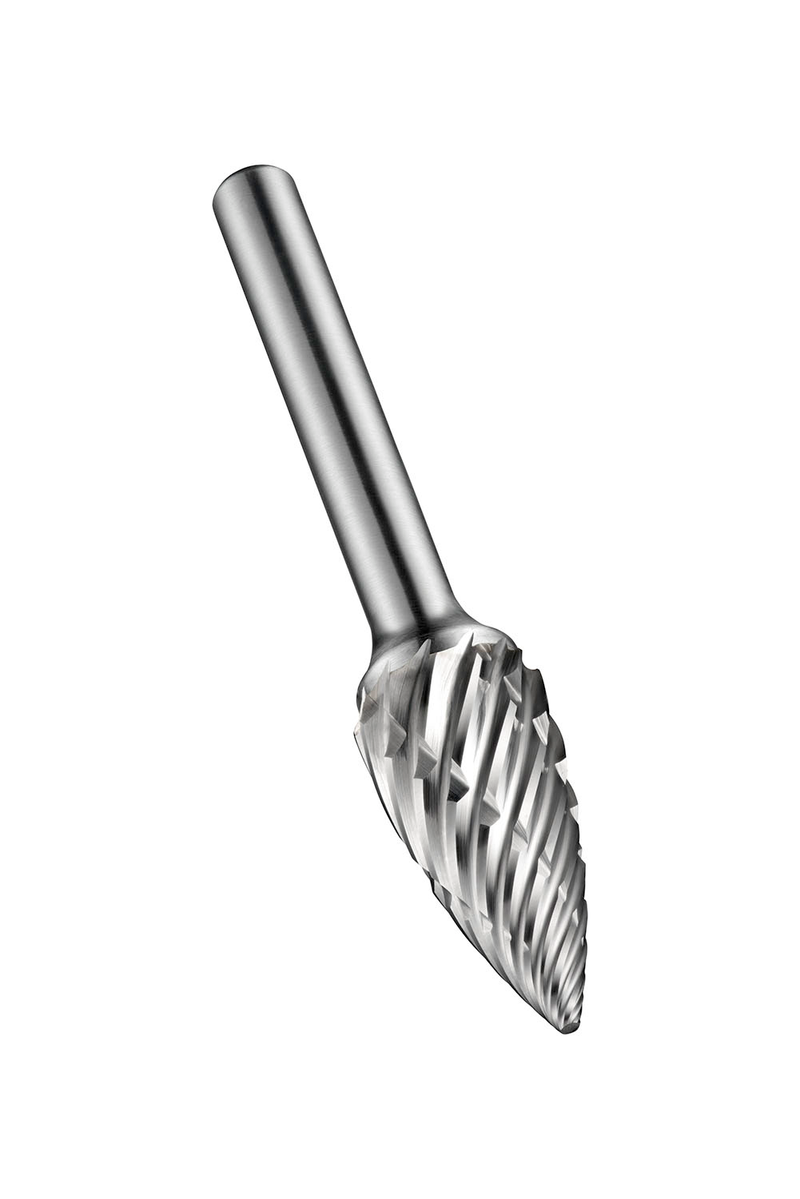

Fraise-lime conique (forme G), diamètre 12,7 mm avec longueur de coupe de 25 mm, longueur totale de 70 mm et queue de 6 mm, à pastilles carbure avec queue en acier trempé et revenu et finition brillante, à denture simple ST avec brise-copeaux et arêtes moyennement espacées pour le contournage multi-angle et la coupe d'angles étroits dans les zones difficiles d'accès dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P71312.7X6.0
GradeLumineux
Product Number7059563
Product FamilyP713
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059563
EAN7320760693391
File Type Download

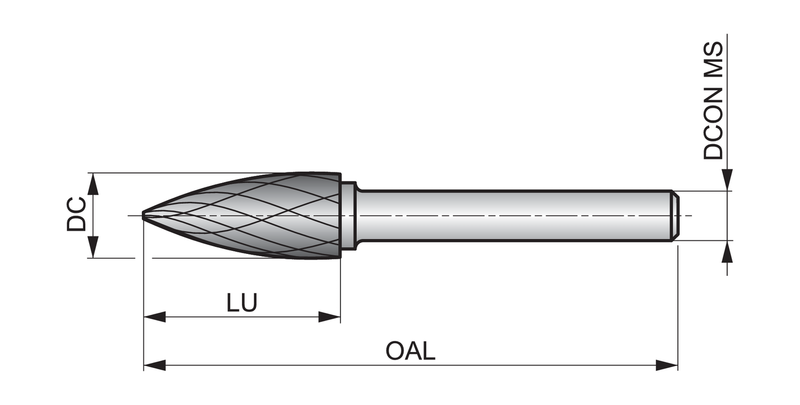

P71312.7X6.0 — Line Drawing PDF Download
