P8433.0X3.0
P8433.0X3.0
P8433.0X3.0

P8433.0X3.0

UGC DOR7059572
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.86 CAD - $70.86 CAD
$70.86 CAD
$70.86 CAD - $70.86 CAD
$70.86 CAD

Vendu en lots de : 1

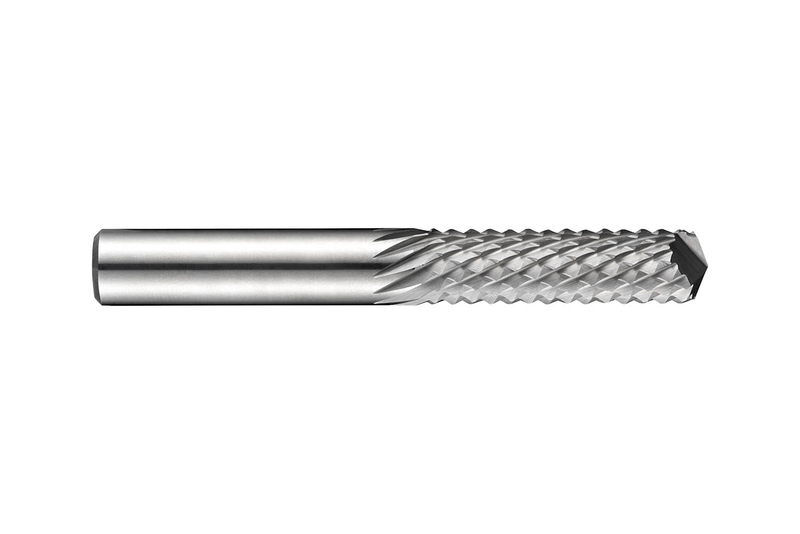

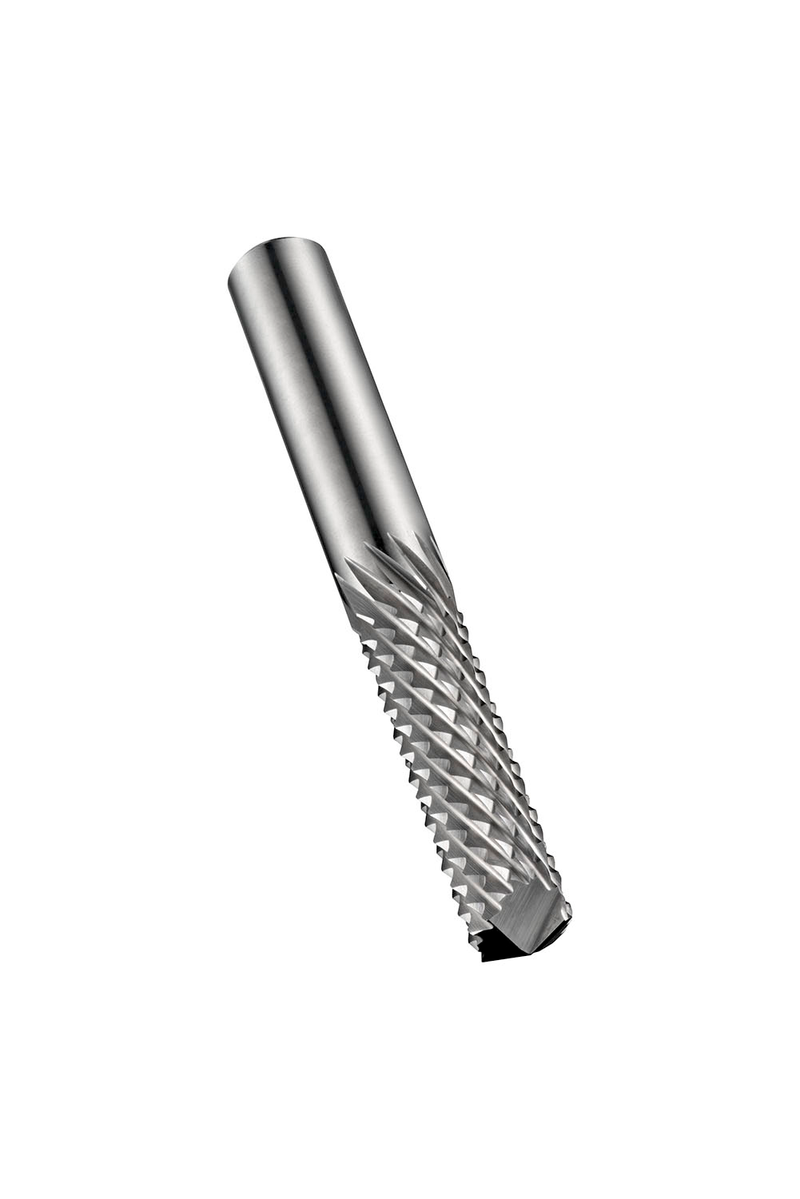

Défonceuse avec pointe de perçage à 135°, diamètre 3mm avec longueur de coupe 13mm, longueur totale 45mm et queue 3mm, carbure monobloc avec finition brillante, style de cannelure diamantée GRP avec bords espacés pour le profilage, la découpe de formes et de trous dans les polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8433.0X3.0
GradeLumineux
Product Number7059572
Product FamilyP843

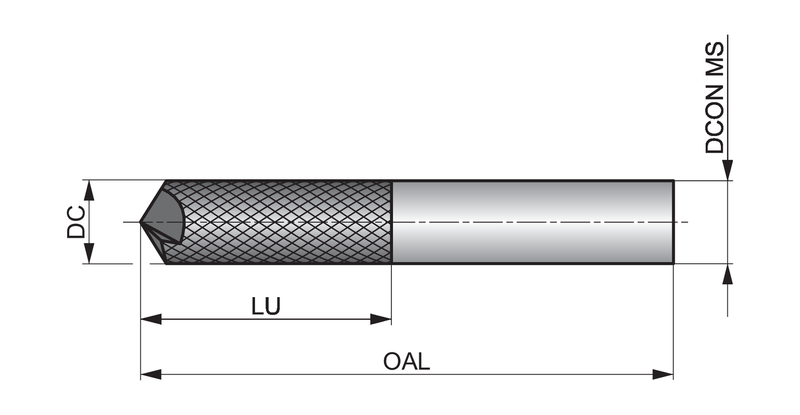

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Usable Length — mm (LU)13.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059572
EAN7320760693483
File Type Download
P8433.0X3.0 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
