P8436.0X6.0
P8436.0X6.0
P8436.0X6.0

P8436.0X6.0

UGC DOR7059573
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$135.43 CAD - $135.43 CAD
$135.43 CAD
$135.43 CAD - $135.43 CAD
$135.43 CAD

Vendu en lots de : 1

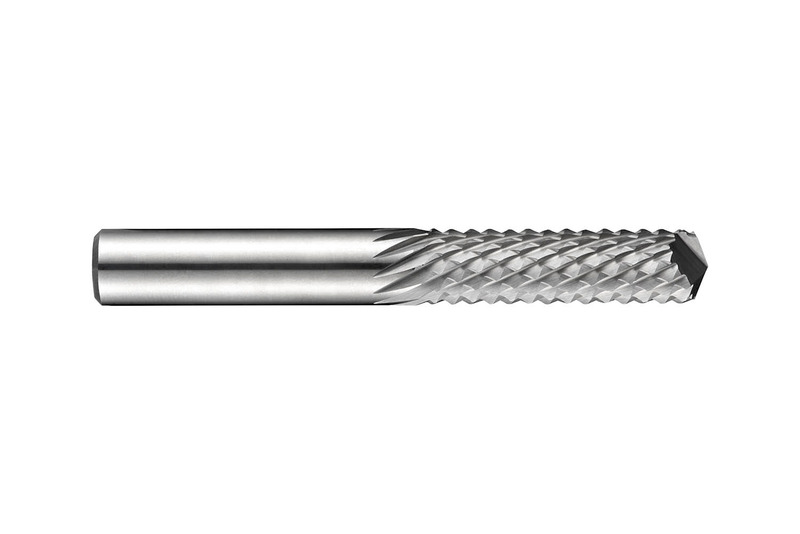

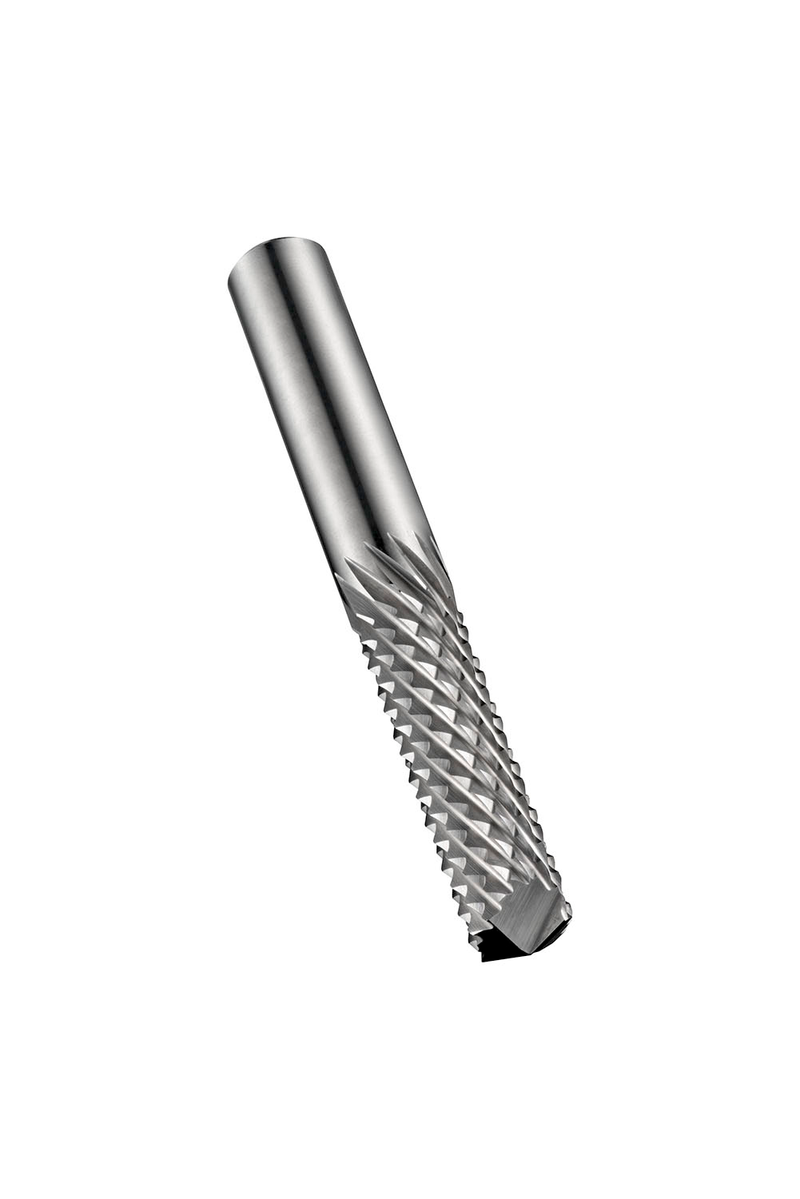

Défonceuse avec pointe de perçage de 135°, diamètre 6mm avec longueur de coupe de 19mm, longueur totale de 63mm et queue de 6mm, carbure monobloc avec finition brillante, cannelure diamantée GRP avec bords espacés moyens pour le profilage, la découpe de formes et de trous dans les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8436.0X6.0
GradeLumineux
Product Number7059573
Product FamilyP843

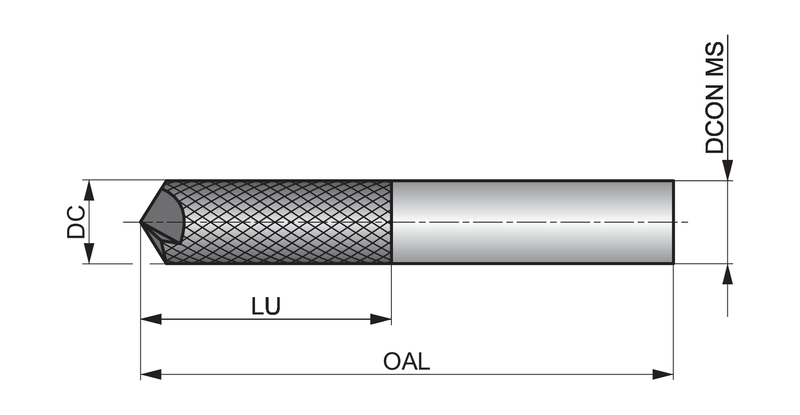

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059573
EAN7320760693490
File Type Download
P8436.0X6.0 — Line Drawing PDF Download
