P8438.0X8.0
P8438.0X8.0
P8438.0X8.0

P8438.0X8.0

UGC DOR7059574
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$241.14 CAD - $241.14 CAD
$241.14 CAD
$241.14 CAD - $241.14 CAD
$241.14 CAD

Vendu en lots de : 1

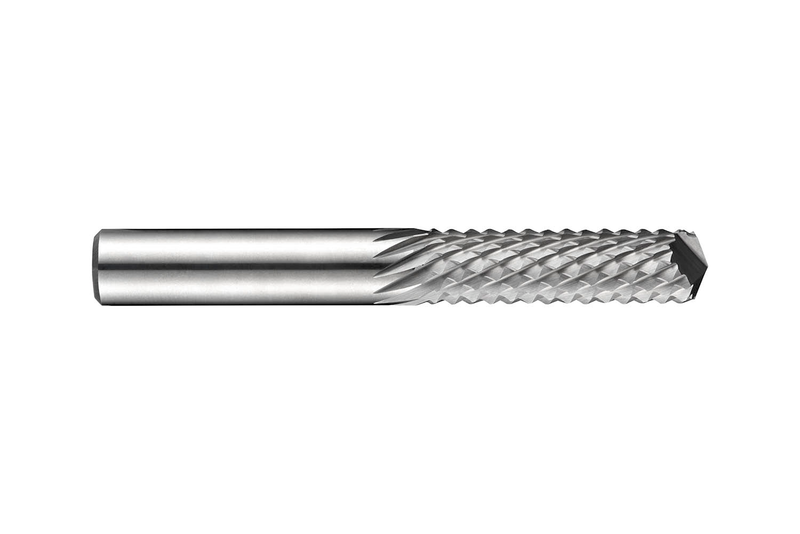

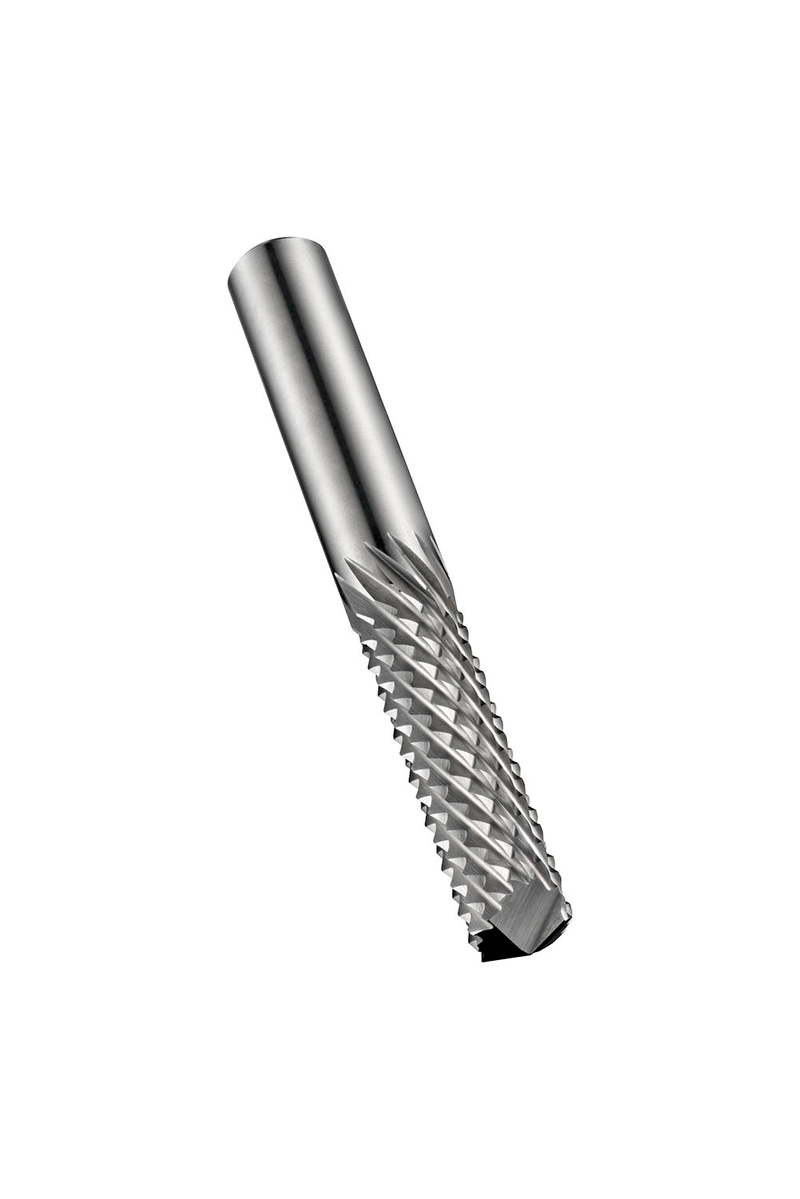

Fraise avec pointe de perçage à 135°, diamètre 8mm avec longueur de coupe de 25mm, longueur totale de 63mm et queue de 8mm, pointe en carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure diamantée GRP avec bords espacés moyens pour le contournage, la découpe de formes et de trous dans les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8438.0X8.0
GradeLumineux
Product Number7059574
Product FamilyP843
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059574
EAN7320760693506
File Type Download

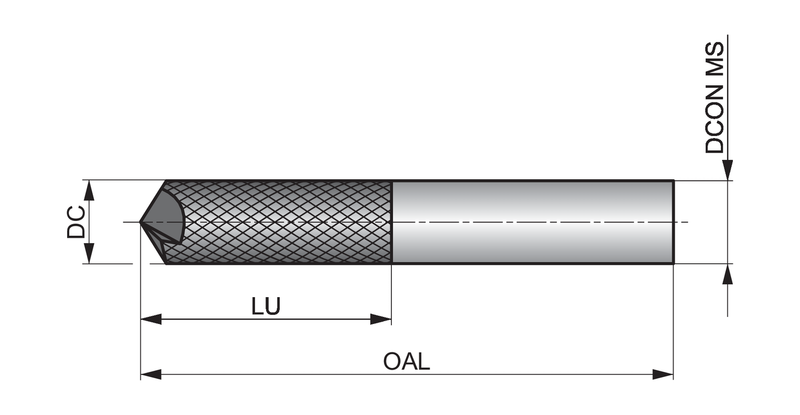

P8438.0X8.0 — Line Drawing PDF Download
