P8443.0X3.0
P8443.0X3.0
P8443.0X3.0

P8443.0X3.0

UGC DOR7059575
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.43 CAD - $67.43 CAD
$67.43 CAD
$67.43 CAD - $67.43 CAD
$67.43 CAD

Vendu en lots de : 1

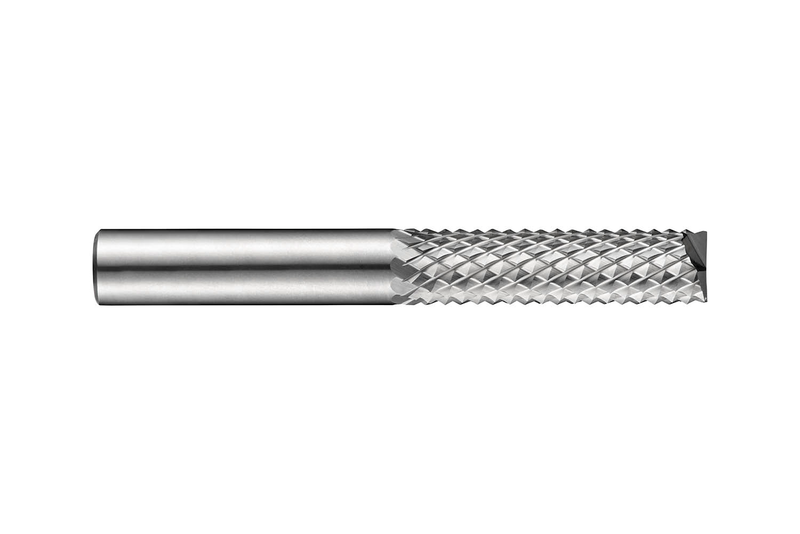

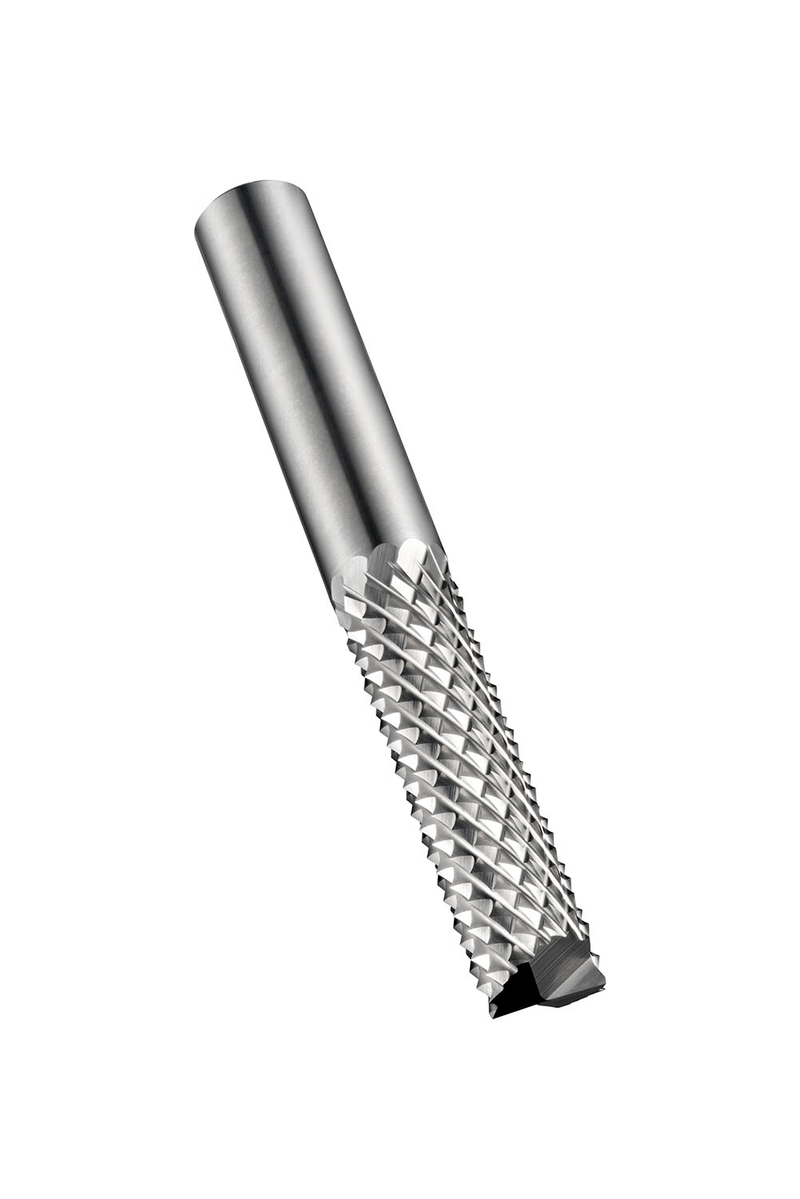

Défonceuse avec fraise en bout de 3 mm de diamètre, longueur de coupe de 13 mm, longueur totale de 45 mm et queue de 3 mm, carbure monobloc avec finition brillante, style de cannelure diamantée GRP avec bords espacés moyens pour le profilage, le fraisage de rainures et de poches et la découpe de formes dans les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8443.0X3.0
GradeLumineux
Product Number7059575
Product FamilyP844

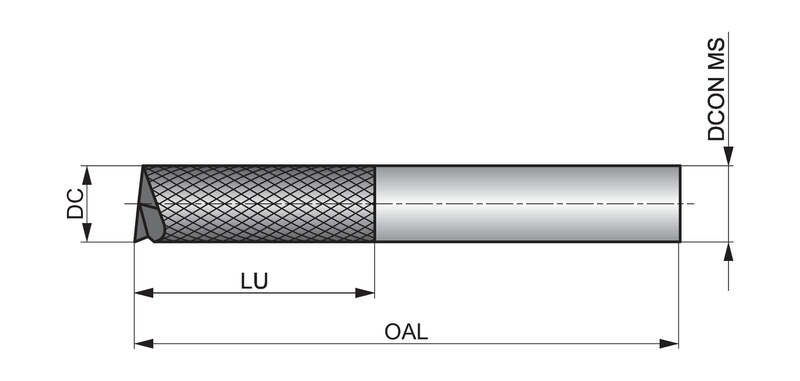

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Usable Length — mm (LU)13.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Drill Point Angle (SIG)180°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059575
EAN7320760693513
File Type Download
P8443.0X3.0 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
