P8446.0X6.0
P8446.0X6.0
P8446.0X6.0

P8446.0X6.0

UGC DOR7059576
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$126.86 CAD - $126.86 CAD
$126.86 CAD
$126.86 CAD - $126.86 CAD
$126.86 CAD

Vendu en lots de : 1

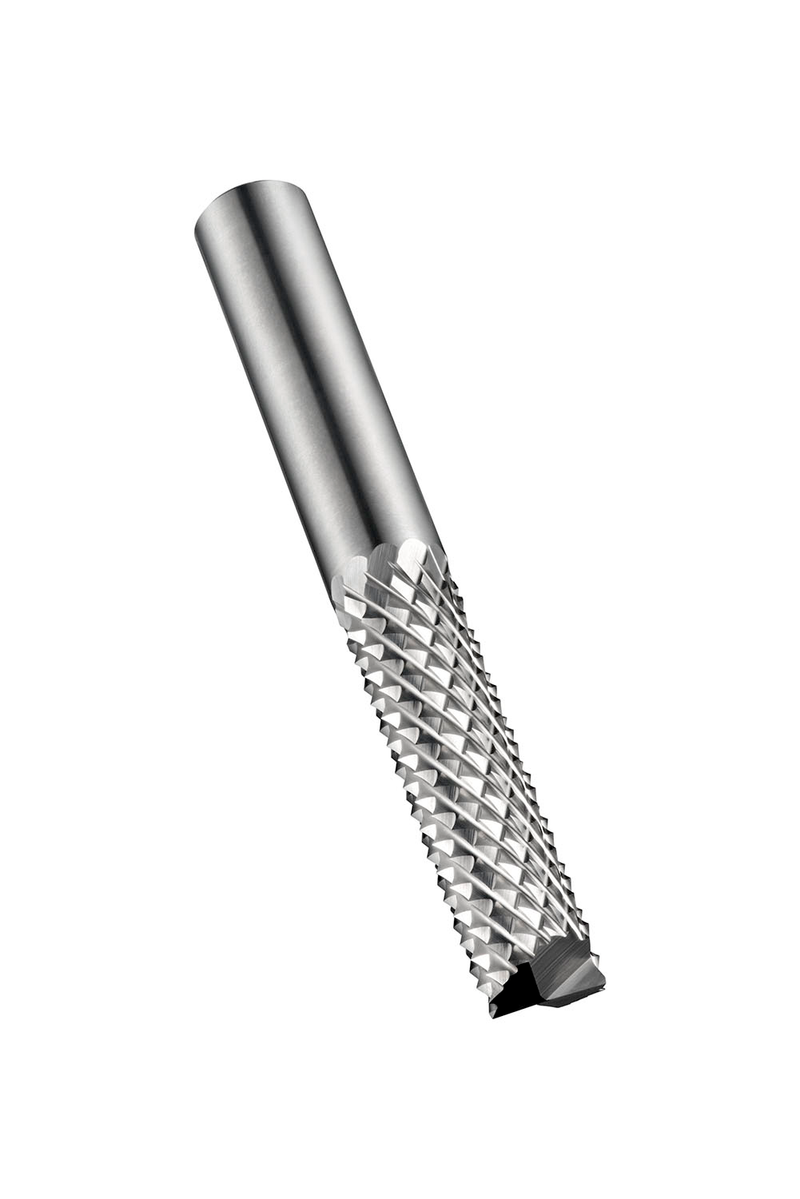

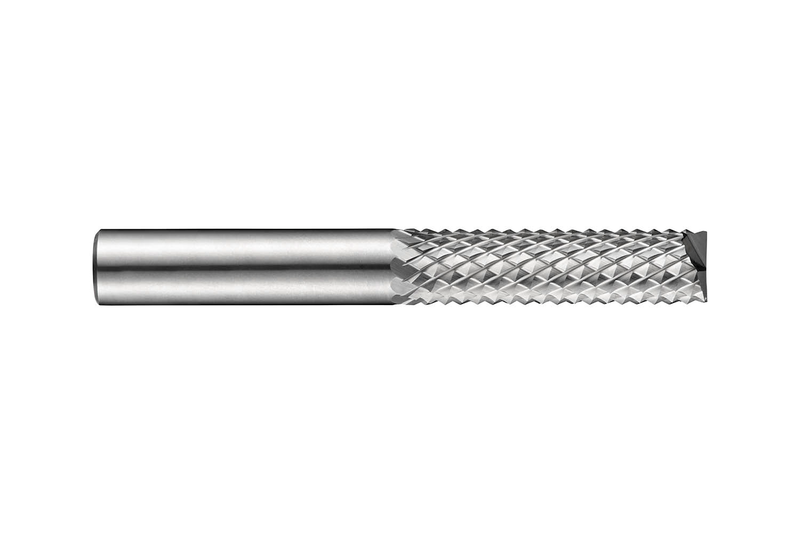

Fraise avec coupe en bout type fraise en bout, diamètre 6mm avec 19mm de longueur de coupe, 63mm de longueur totale et queue de 6mm, carbure monobloc avec finition brillante, style de cannelure GRP à coupe diamantée avec arêtes espacées moyennes pour le contournage, le fraisage de rainures et de poches et la découpe de formes dans les polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8446.0X6.0
GradeLumineux
Product Number7059576
Product FamilyP844

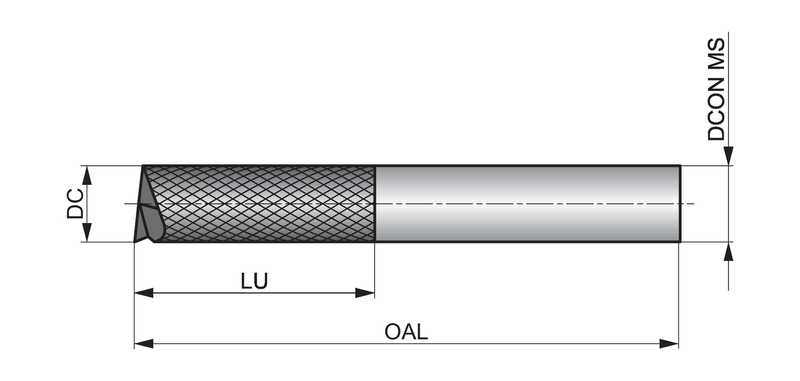

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)180°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059576
EAN7320760693520
File Type Download
P8446.0X6.0 — Line Drawing PDF Download
