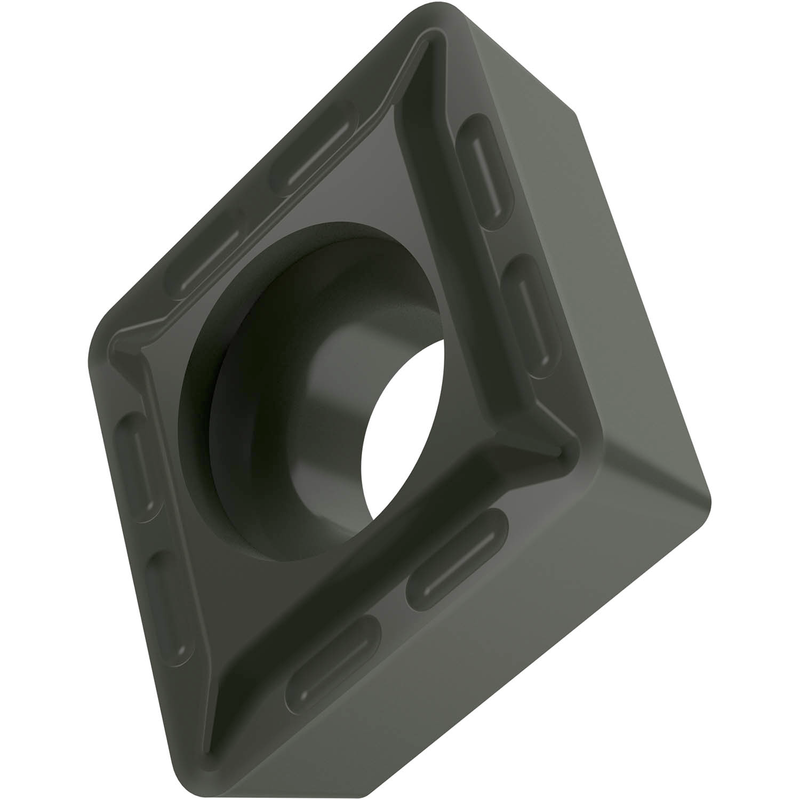

CCMT 21.50.5-FF2:TT010
CCMT 21.50.5-FF2:TT010

CCMT 21.50.5-FF2:TT010

UGC DOR7080612
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.36 CAD - $10.36 CAD
$10.36 CAD
$10.36 CAD - $10.36 CAD
$10.36 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde à 80° avec un dépouille de 7°, un diamètre de cercle inscrit de 1/4", une épaisseur de 3/32", un rayon de bec de 1/128" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FF2, en nuance TT010, un cermet non revêtu de la gamme ISO P01-P10, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.50.5-FF2:TT010
Product Name (ISO)CCMT 060202E-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number7080612
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number7080612
EAN3603603129078
File Type Download
CCMT 21.50.5-FF2:TT010 — Line Drawing PDF Download
