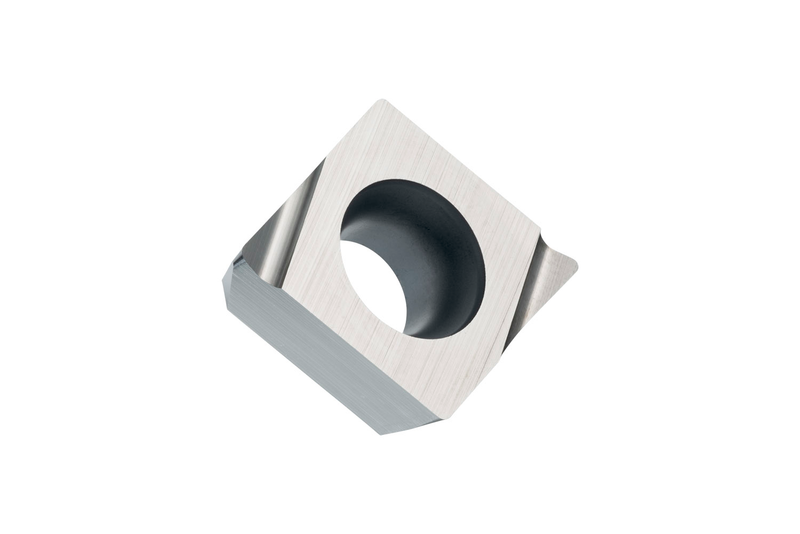

CPGX 32.51FL-JQ:TT010
CPGX 32.51FL-JQ:TT010

CPGX 32.51FL-JQ:TT010

UGC DOR7080614
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.07 CAD - $25.07 CAD
$25.07 CAD
$25.07 CAD - $25.07 CAD
$25.07 CAD

Vendu en lots de : 10

Plaquette de tournage positive à conception spéciale, rhomboïde 80° avec dépouille 11°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64", précision d'indexage selon la classe de tolérance ISO- G, brise-copeaux JQ avec arêtes vives, en nuance TT010, un cermet non revêtu de la gamme ISO P01-P10, pour l'usinage fin des aciers avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)CPGX 32.51FL-JQ:TT010
Product Name (ISO)CPGX 09T304FL-JQ:TT010
GradeTT010
Chipbreaker (CBMD)JQ
Product Number7080614
Product FamilyCPGX
Insert Geometry
Insert DesignCPGX
Insert Shape Code (SC)C - angle de 80° inclus rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.047"
Depth of Cut Max — mm (APMX)1.2 mm
Tool Information
Reference Numbers
EDP Number7080614
EAN3603603129092
File Type Download
CPGX 32.51FL-JQ:TT010 — Line Drawing PDF Download
