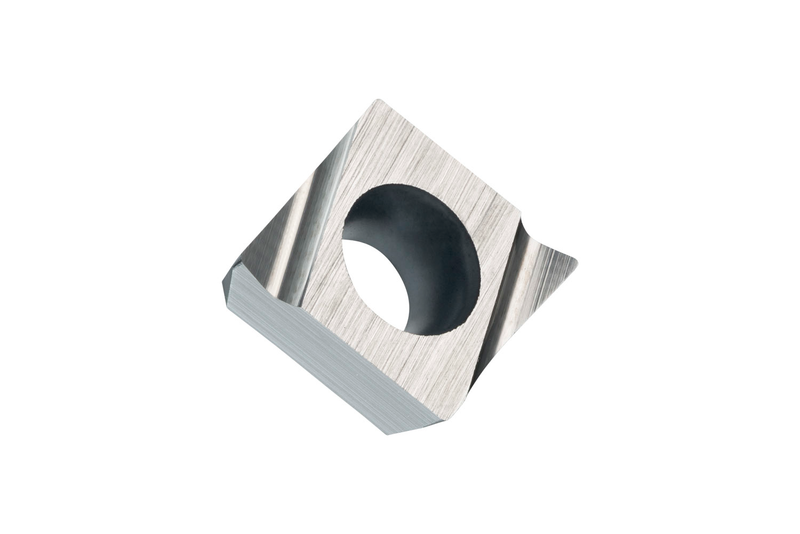

CPGX 21.50.5FL-JZ:TT010
CPGX 21.50.5FL-JZ:TT010

CPGX 21.50.5FL-JZ:TT010

UGC DOR7080615
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.26 CAD - $23.26 CAD
$23.26 CAD
$23.26 CAD - $23.26 CAD
$23.26 CAD

Vendu en lots de : 10

Plaquette positive spéciale, rhomboïdale 80° avec dépouille 11°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de bec 1/128", précision d'indexage selon la classe de tolérance ISO G, brise-copeaux JZ à arêtes vives, en nuance TT010, un cermet non revêtu dans la plage ISO P01-P10, pour la finition des aciers avec un outil à tourner à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)CPGX 21.50.5FL-JZ:TT010
Product Name (ISO)CPGX 060202FL-JZ:TT010
GradeTT010
Chipbreaker (CBMD)JZ
Product Number7080615
Product FamilyCPGX
Insert Geometry
Insert DesignCPGX
Insert Shape Code (SC)C - angle inclus rhomboïde de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.02"
Depth of Cut Max — mm (APMX)0.5 mm
Tool Information
Reference Numbers
EDP Number7080615
EAN3603603129108
File Type Download
CPGX 21.50.5FL-JZ:TT010 — Line Drawing PDF Download
