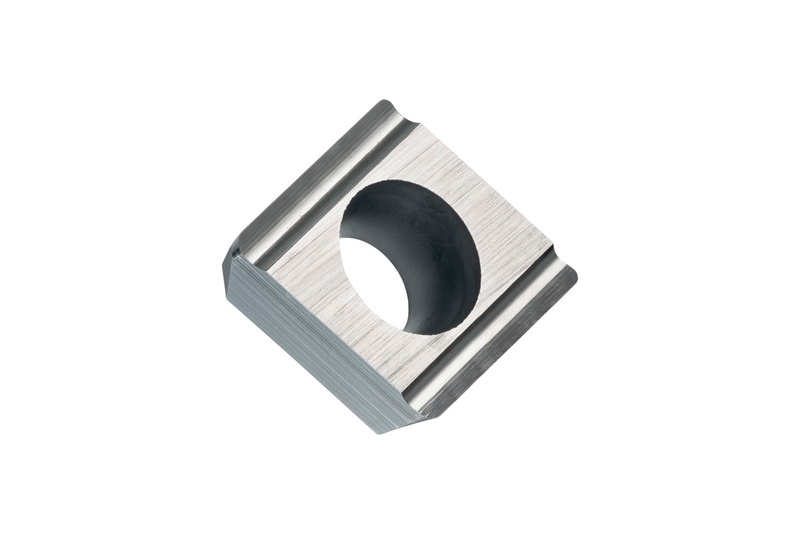

CPGX 21.51FL-JR:TT010
CPGX 21.51FL-JR:TT010

CPGX 21.51FL-JR:TT010

UGC DOR7080617
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.86 CAD - $21.86 CAD
$21.86 CAD
$21.86 CAD - $21.86 CAD
$21.86 CAD

Vendu en lots de : 10

Plaquette positive à conception spéciale, rhomboïdale à 80° avec un dépouille de 11°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/64", précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux JR avec arêtes vives, en nuance TT010, un cermet non revêtu dans la plage ISO P01-P10, pour la finition des aciers avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)CPGX 21.51FL-JR:TT010
Product Name (ISO)CPGX 060204FL-JR:TT010
GradeTT010
Chipbreaker (CBMD)JR
Product Number7080617
Product FamilyCPGX
Insert Geometry
Insert DesignCPGX
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.165"
Depth of Cut Max — mm (APMX)4.2 mm
Tool Information
Reference Numbers
EDP Number7080617
EAN3603603129122
File Type Download
CPGX 21.51FL-JR:TT010 — Line Drawing PDF Download
