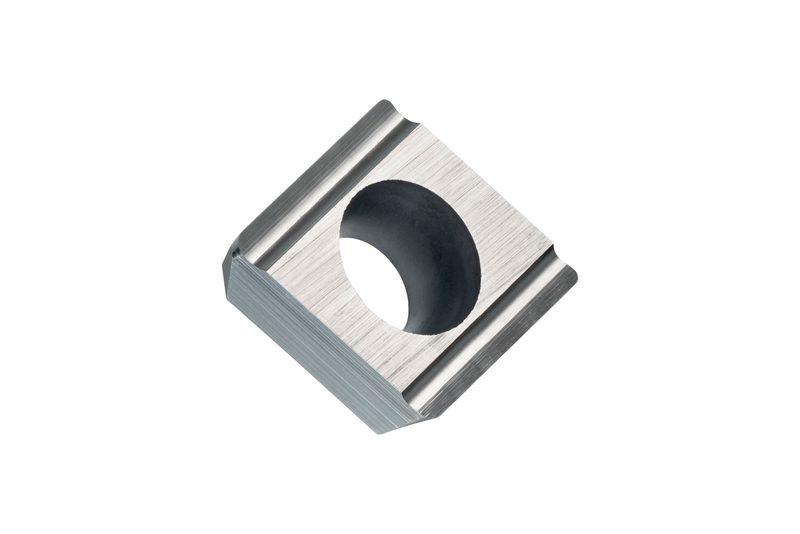

CPGX 2.521FL-JR:TT010
CPGX 2.521FL-JR:TT010

CPGX 2.521FL-JR:TT010

UGC DOR7080620
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.64 CAD - $22.64 CAD
$22.64 CAD
$22.64 CAD - $22.64 CAD
$22.64 CAD

Vendu en lots de : 10

Plaquette de tournage positive de conception spéciale, rhomboïde à 80° avec un angle de dépouille de 11°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/64", précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux JR avec arêtes vives, en nuance TT010, un cermet non revêtu de la gamme ISO P01-P10, pour la finition d'aciers avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)CPGX 2.521FL-JR:TT010
Product Name (ISO)CPGX 080304FL-JR:TT010
GradeTT010
Chipbreaker (CBMD)JR
Product Number7080620
Product FamilyCPGX
Insert Geometry
Insert DesignCPGX
Insert Shape Code (SC)C - angle de 80° inclus, rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.22"
Depth of Cut Max — mm (APMX)5.6 mm
Tool Information
Reference Numbers
EDP Number7080620
EAN3603603129153
File Type Download
CPGX 2.521FL-JR:TT010 — Line Drawing PDF Download
