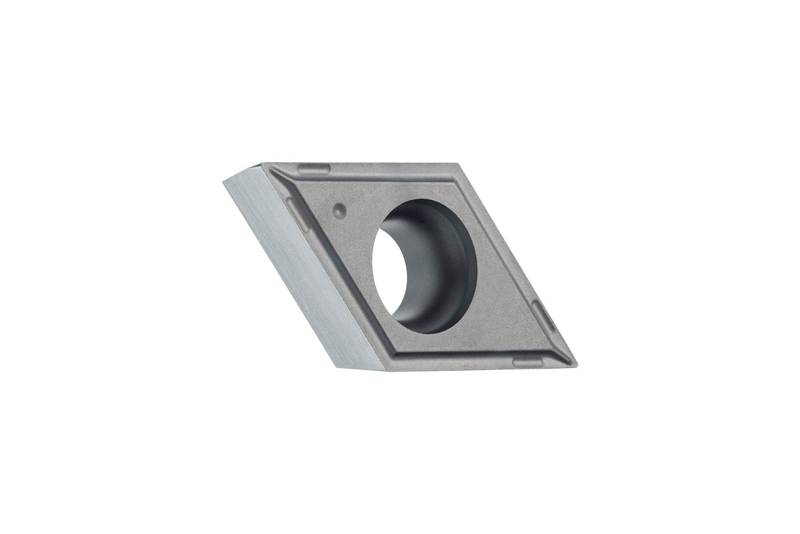

DCGT 32.50.5-FF2:TT010
DCGT 32.50.5-FF2:TT010

DCGT 32.50.5-FF2:TT010

UGC DOR7080623
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.97 CAD - $22.97 CAD
$22.97 CAD
$22.97 CAD - $22.97 CAD
$22.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de pointe 1/128" et précision de positionnement selon la classe de tolérance ISO G, brise-copeaux FF2, en nuance TT010, un cermet non revêtu dans la gamme ISO P01-P10, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGD 32.50.5-FF2:TT010
Product Name (ISO)DCGT 11T302E-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number7080623
Product FamilyDCGT
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7080623
EAN3603603129184
File Type Download
DCGT 32.50.5-FF2:TT010 — Line Drawing PDF Download
