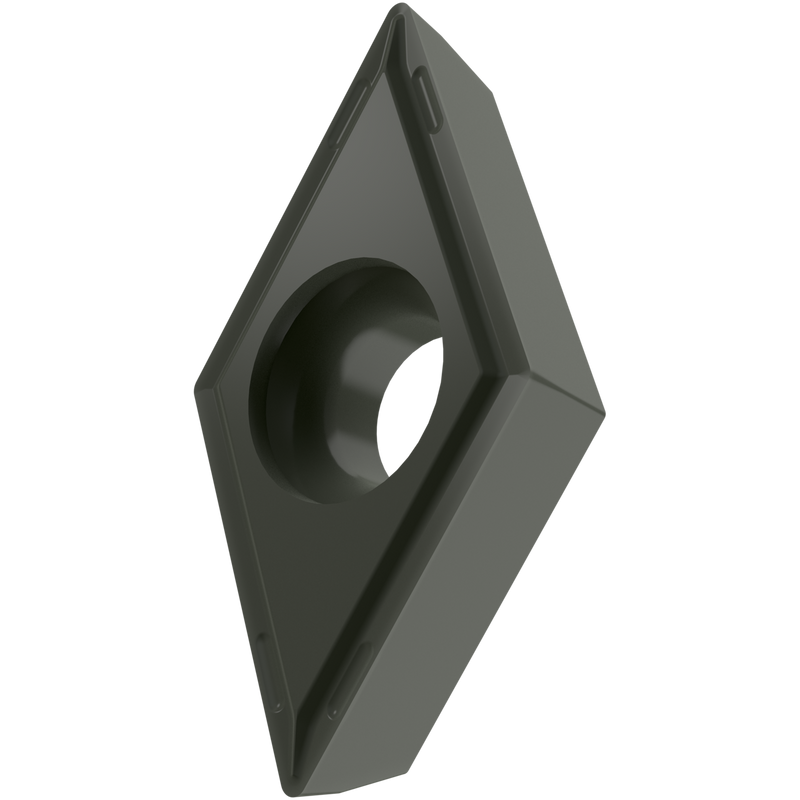

DCMT 32.51-FF2:TT010
DCMT 32.51-FF2:TT010

DCMT 32.51-FF2:TT010

UGC DOR7080624
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.54 CAD - $14.54 CAD
$14.54 CAD
$14.54 CAD - $14.54 CAD
$14.54 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde à 55° avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance TT010, un cermet non revêtu de gamme ISO P01-P10, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.51-FF2:TT010
Product Name (ISO)DCMT 11T304E-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number7080624
Product FamilyTDCM
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle compris 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7080624
EAN3603603129191
File Type Download
DCMT 32.51-FF2:TT010 — Line Drawing PDF Download
