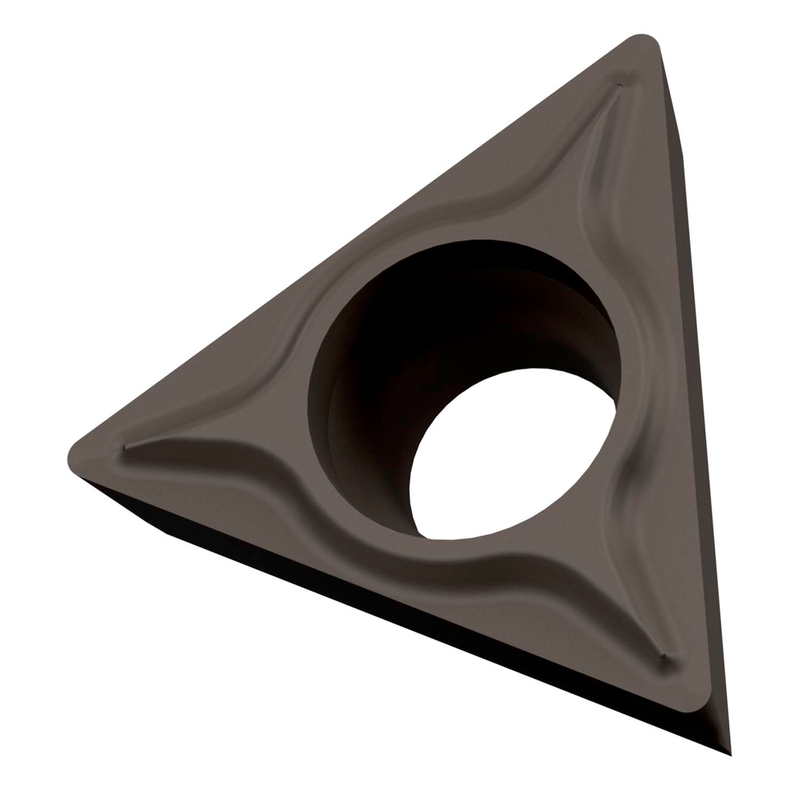

TCGT 1.21.20.5-FF2:TT010
TCGT 1.21.20.5-FF2:TT010

TCGT 1.21.20.5-FF2:TT010

UGC DOR7080629
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.83 CAD - $12.83 CAD
$12.83 CAD
$12.83 CAD - $12.83 CAD
$12.83 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 5/32", épaisseur de 5/64", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux FF2, en nuance TT010, un cermet non revêtu dans la gamme ISO P01-P10, pour l'usinage de finition à semi-finition des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGT 1.21.20.5-FF2:TT010
Product Name (ISO)TCGT 06T102E-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number7080629
Product FamilyTCGT
Insert Geometry
Insert DesignTCGT
Insert Shape Code (SC)T - angle inclus de 60° triangulaire
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.078"
Insert Thickness — mm (S)1.98 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7080629
EAN3603603129245
File Type Download
TCGT 1.21.20.5-FF2:TT010 — Line Drawing PDF Download
