TCGT 1.81.50.5-FF2:TT010
TCGT 1.81.50.5-FF2:TT010

TCGT 1.81.50.5-FF2:TT010

UGC DOR7080630
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.47 CAD - $13.47 CAD
$13.47 CAD
$13.47 CAD - $13.47 CAD
$13.47 CAD

Vendu en lots de : 10

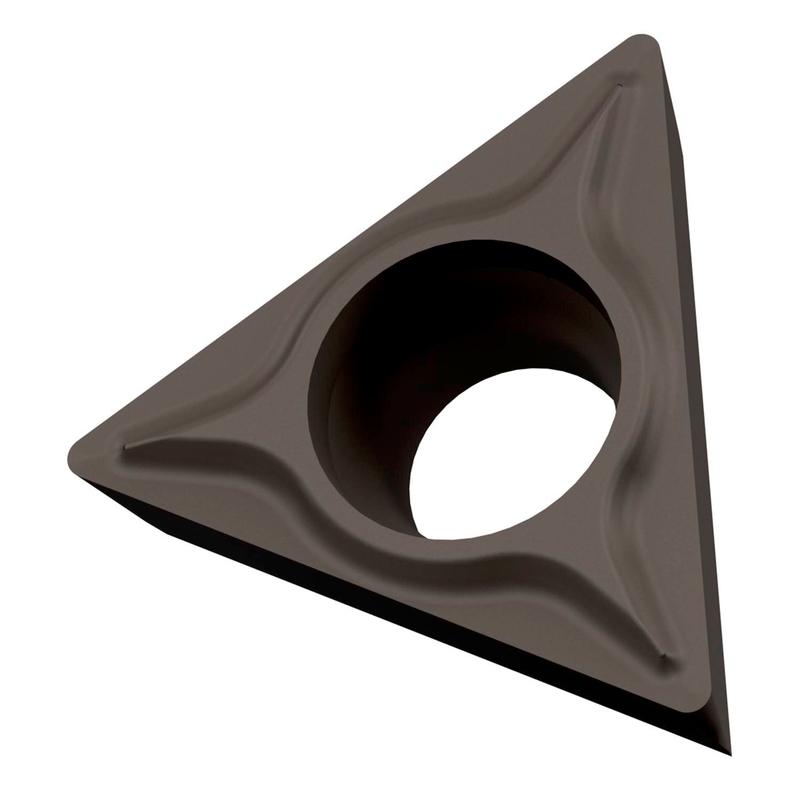

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 7/32, épaisseur de 3/32", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux FF2, en nuance TT010, un cermet non revêtu dans la plage ISO P01-P10, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGT 1.81.50.5-FF2:TT010
Product Name (ISO)TCGT 090202E-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number7080630
Product FamilyCTGT
Insert Geometry
Insert DesignTGCT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number7080630
EAN3603603129252
File Type Download
TCGT 1.81.50.5-FF2:TT010 — Line Drawing PDF Download
