TPGX 32.51FL-JR:TT010
TPGX 32.51FL-JR:TT010

TPGX 32.51FL-JR:TT010

UGC DOR7080632
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.07 CAD - $30.07 CAD
$30.07 CAD
$30.07 CAD - $30.07 CAD
$30.07 CAD

Vendu en lots de : 10

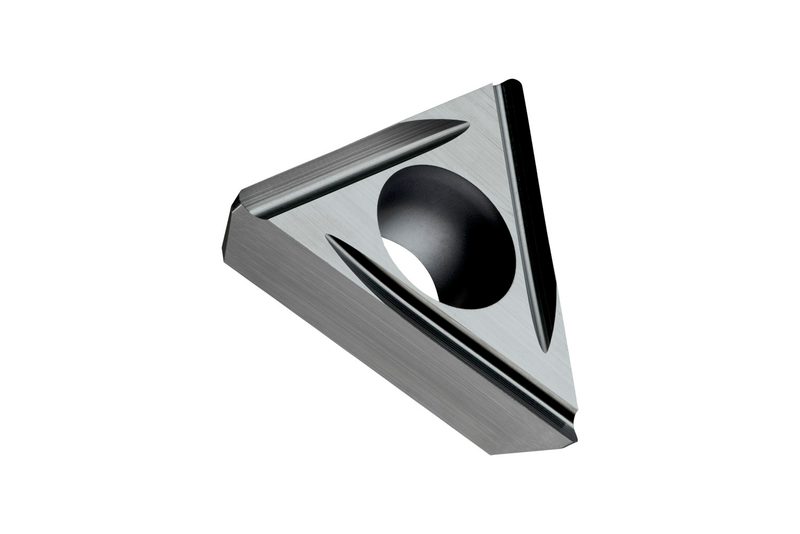

Plaquette de tournage positive de conception spéciale, triangulaire avec un dépouille de 11°, diamètre du cercle inscrit de 3/8", 5/32" d'épaisseur, rayon de bec de 1/64", précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux JR avec arêtes vives, en nuance TT010, un cermet non revêtu dans la gamme ISO P01-P10, pour la finition d'aciers avec un outil à tourner à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)TPGX 32.51FL-JR:TT010
Product Name (ISO)TPGX 16T304FL-JR:TT010
GradeTT010
Chipbreaker (CBMD)JR
Product Number7080632
Product FamilyTPGX
Insert Geometry
Insert DesignTPGX
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.209"
Depth of Cut Max — mm (APMX)5.3 mm
Tool Information
Reference Numbers
EDP Number7080632
EAN3603603129276
File Type Download
TPGX 32.51FL-JR:TT010 — Line Drawing PDF Download
