TPGX1.81.50.5FL-JZ:TT010
TPGX1.81.50.5FL-JZ:TT010

TPGX1.81.50.5FL-JZ:TT010

UGC DOR7080633
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

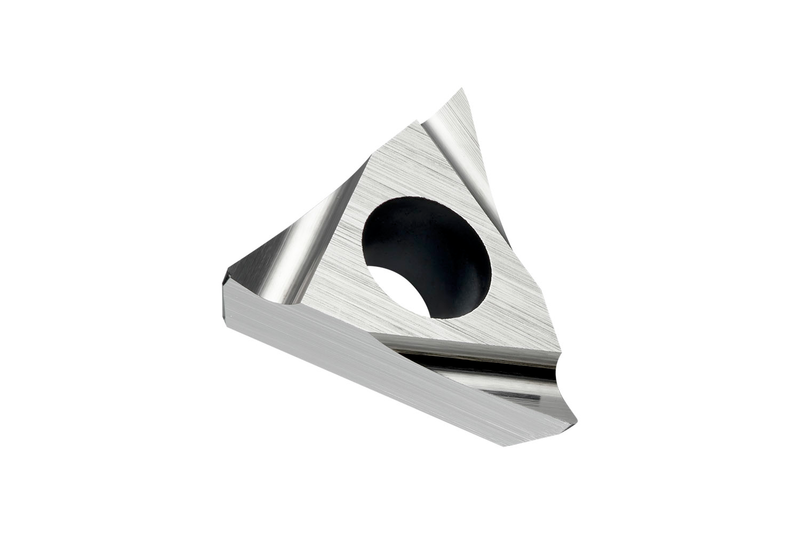

Plaquette de tournage positive de conception spéciale, triangulaire avec un dépouille de 11°, diamètre du cercle inscrit de 7/32, 3/32" d'épaisseur, rayon de bec de 1/128", précision d'indexation selon la classe de tolérance ISO G, brise-copeaux JZ avec arêtes vives, en nuance TT010, un cermet non revêtu de la gamme ISO P01-P10, pour la finition des aciers avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)TPGX1.81.50.5FL-JZ:TT010
Product Name (ISO)TPGX 090202FL-JZ:TT010
GradeTT010
Chipbreaker (CBMD)JZ
Product Number7080633
Product FamilyTPGX

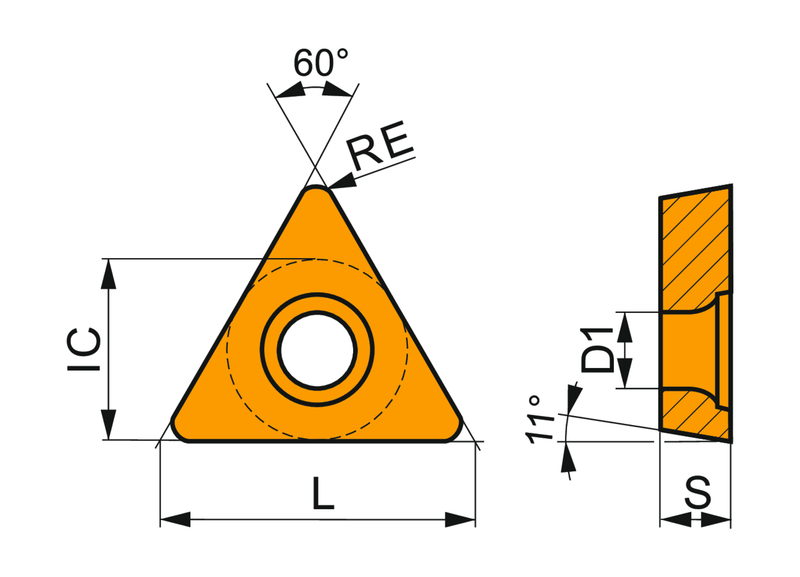

Insert Geometry
Insert DesignTPGX
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.02"
Depth of Cut Max — mm (APMX)0.5 mm
Tool Information
Reference Numbers
EDP Number7080633
EAN3603603129283
File Type Download
TPGX1.81.50.5FL-JZ:TT010 — Line Drawing PDF Download
