TPGX 1.81.51FL-JQ:TT010
TPGX 1.81.51FL-JQ:TT010

TPGX 1.81.51FL-JQ:TT010

UGC DOR7080635
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.33 CAD - $19.33 CAD
$19.33 CAD
$19.33 CAD - $19.33 CAD
$19.33 CAD

Vendu en lots de : 10

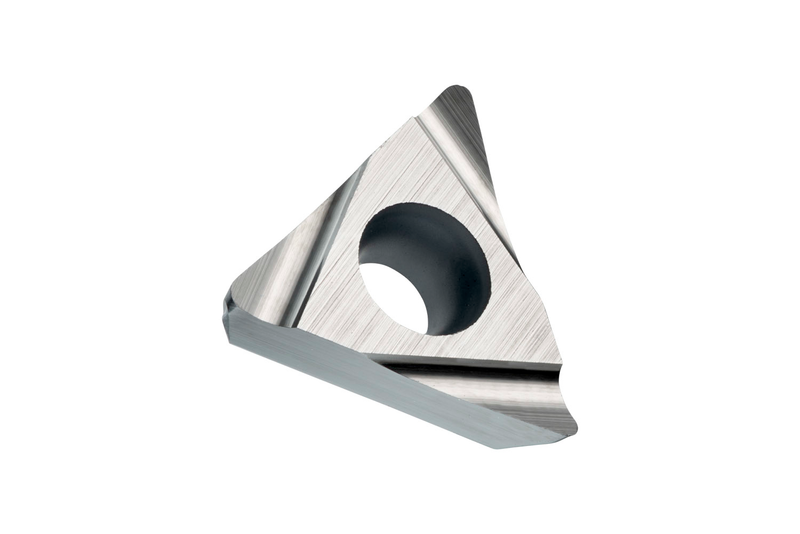

Plaquette de tournage positive de conception spéciale, triangulaire avec un angle de dépouille de 11°, diamètre du cercle inscrit de 7/32, épaisseur de 3/32", rayon de bec de 1/64", précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux JQ avec arêtes de coupe vives, en nuance TT010, un cermet non revêtu dans la plage ISO P01-P10, pour la finition des aciers avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)TPGX 1.81.51FL-JQ:TT010
Product Name (ISO)TPGX 090204FL-JQ:TT010
GradeTT010
Chipbreaker (CBMD)JQ
Product Number7080635
Product FamilyTPGX

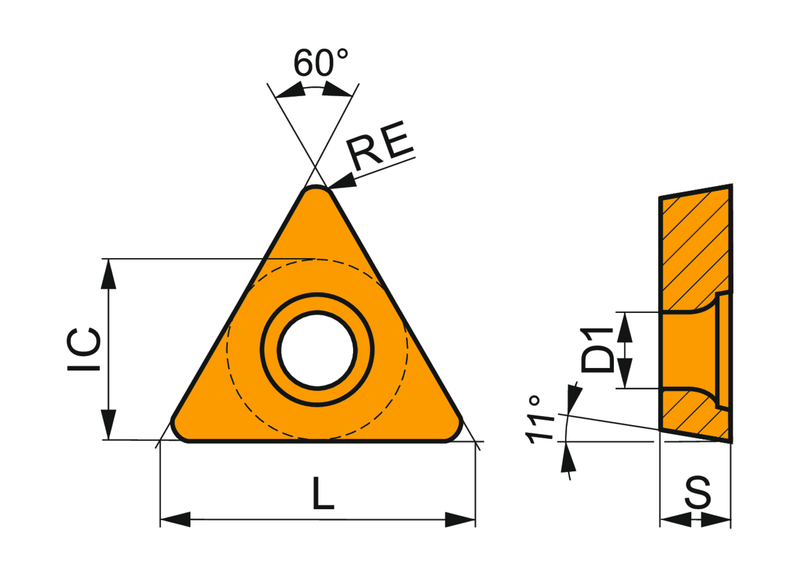

Insert Geometry
Insert DesignTPGX
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.047"
Depth of Cut Max — mm (APMX)1.2 mm
Tool Information
Reference Numbers
EDP Number7080635
EAN3603603129306
File Type Download
TPGX 1.81.51FL-JQ:TT010 — Line Drawing PDF Download
