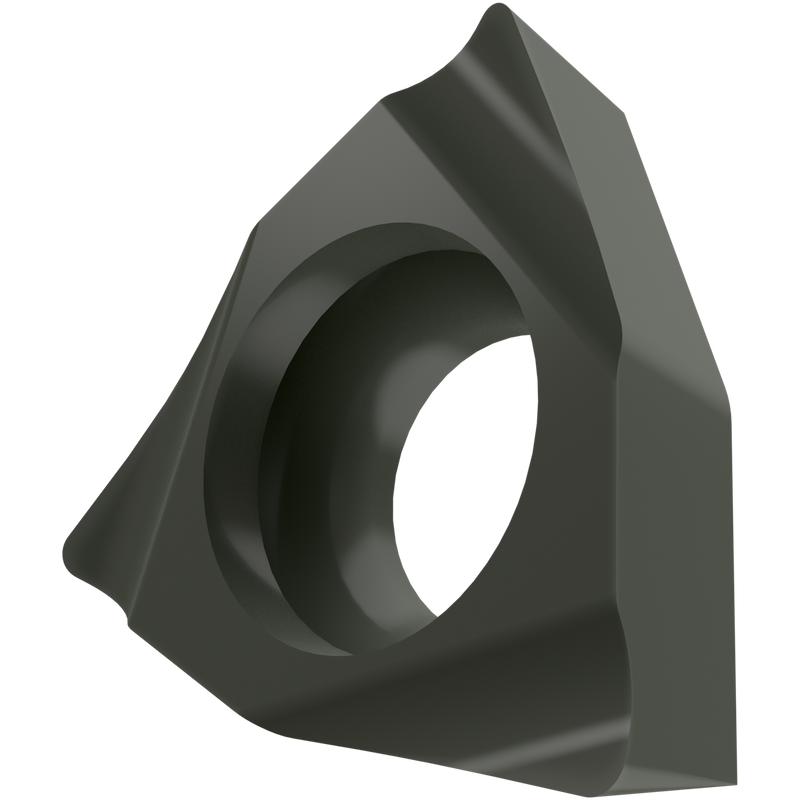

WCGX 1.210.5FL-JZ:TT010
WCGX 1.210.5FL-JZ:TT010

WCGX 1.210.5FL-JZ:TT010

UGC DOR7080640
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.97 CAD - $21.97 CAD
$21.97 CAD
$21.97 CAD - $21.97 CAD
$21.97 CAD

Vendu en lots de : 10

Plaquette positive à coupe spéciale, trigon 80° avec dépouille 7°, diamètre du cercle inscrit de 5/32", épaisseur 1/16", rayon de bec 1/128", précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux JZ à arêtes vives, en nuance TT010, un cermet non revêtu dans la gamme ISO P01-P10, pour la finition des aciers avec un outil à tourner à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)WCGX 1.210.5FL-JZ:TT010
Product Name (ISO)WCGX 020102FL-JZ:TT010
GradeTT010
Chipbreaker (CBMD)JZ
Product Number7080640
Product FamilyWCGX
Insert Geometry
Insert DesignWCGX
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.063"
Insert Thickness — mm (S)1.59 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.02"
Depth of Cut Max — mm (APMX)0.5 mm
Tool Information
Reference Numbers
EDP Number7080640
EAN3603603129351
File Type Download
WCGX 1.210.5FL-JZ:TT010 — Line Drawing PDF Download
