UGC DOR7106955
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.39 CAD - $53.39 CAD
$53.39 CAD
$53.39 CAD - $53.39 CAD
$53.39 CAD

Vendu en lots de : 1

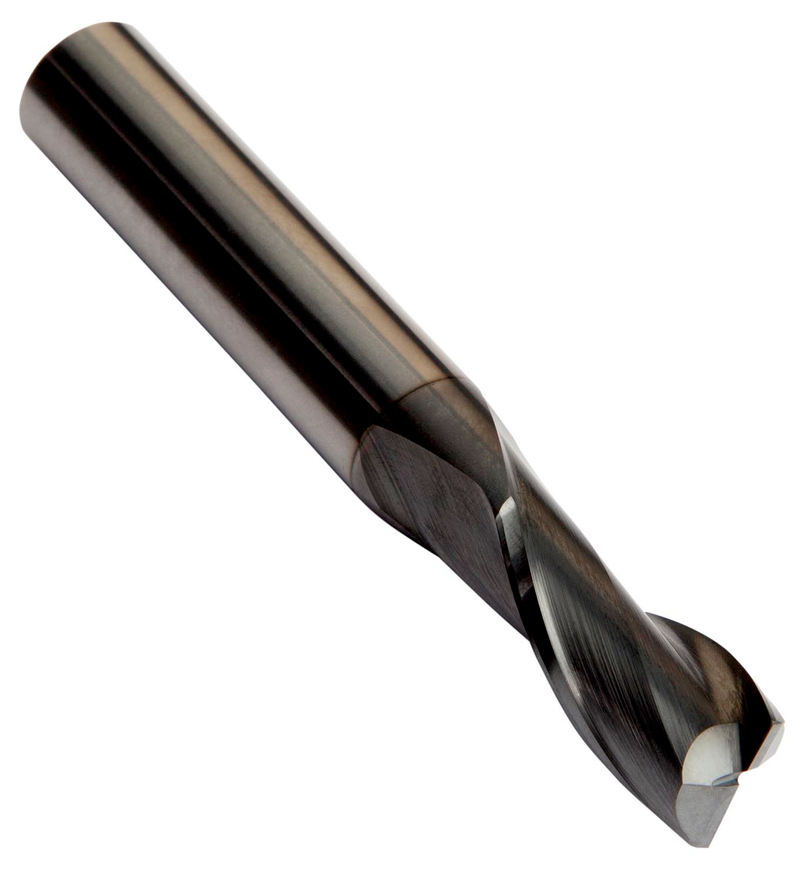

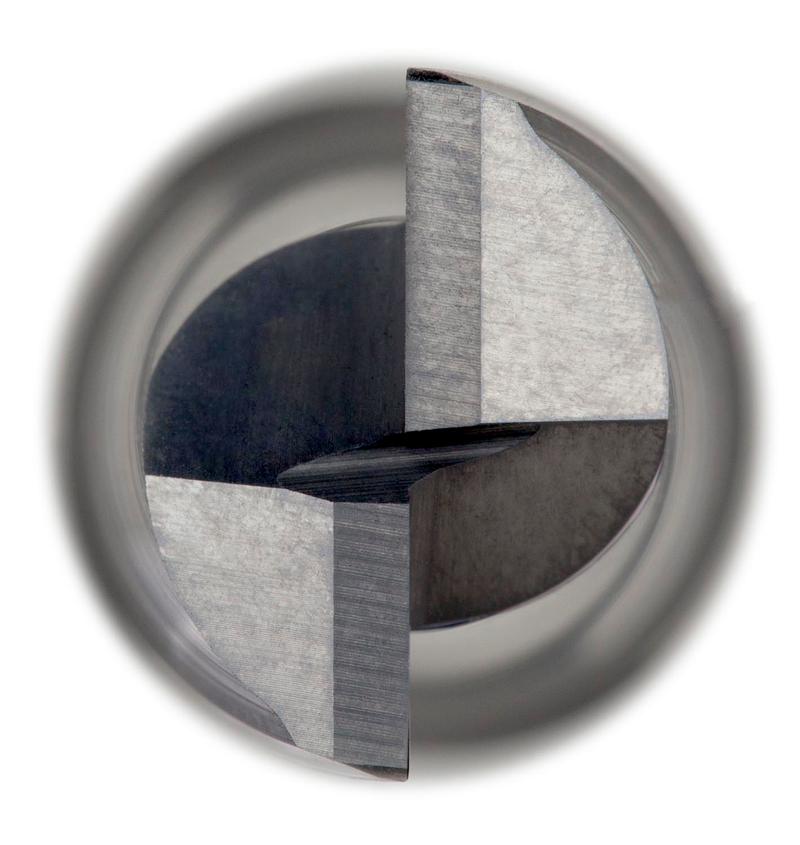

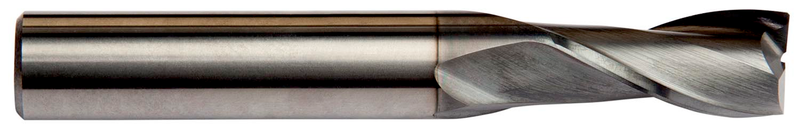

Fraise-2-tailles longue, diamètre 2,5mm avec 12mm de longueur de coupe, 57mm de longueur totale et des bords d'angle chanfreinés de 0,08mm à 45°, selon la norme DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage de rainures et le surfaçage en acier et acier moulé, acier inoxydable, fonte, aluminium forgé, aluminium moulé et cuivre ou alliages de cuivre et alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S8222.5
GradeAlCrN
Product Number7106955
Product FamilyS822

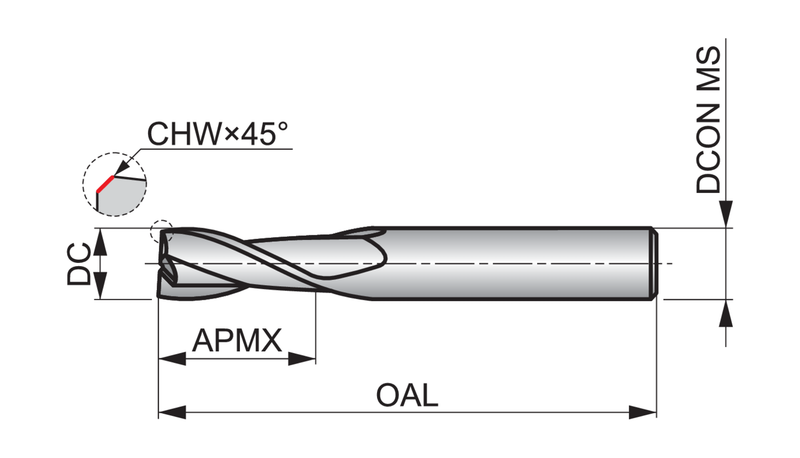

Insert Geometry
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47106955
EAN7320760698440
File Type Download
S8222.5 — Line Drawing PDF Download
