S8229.0
S8229.0
S8229.0
S8229.0

S8229.0

UGC DOR7106962
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$112.06 CAD - $112.06 CAD
$112.06 CAD
$112.06 CAD - $112.06 CAD
$112.06 CAD

Vendu en lots de : 1

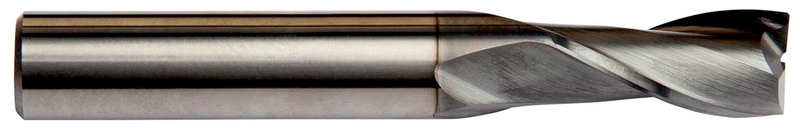

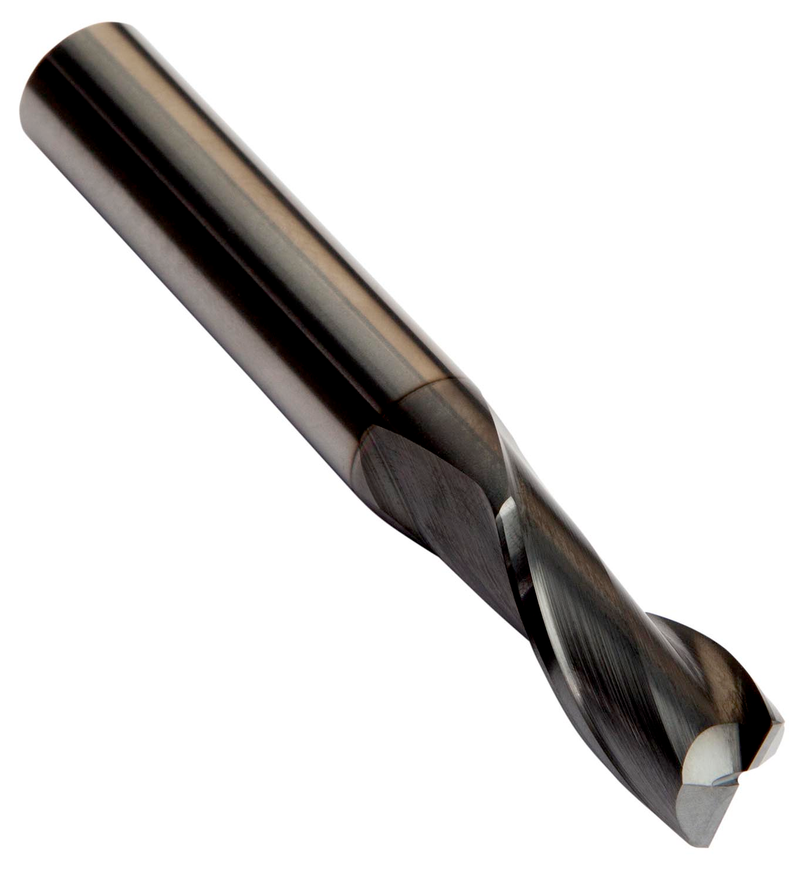

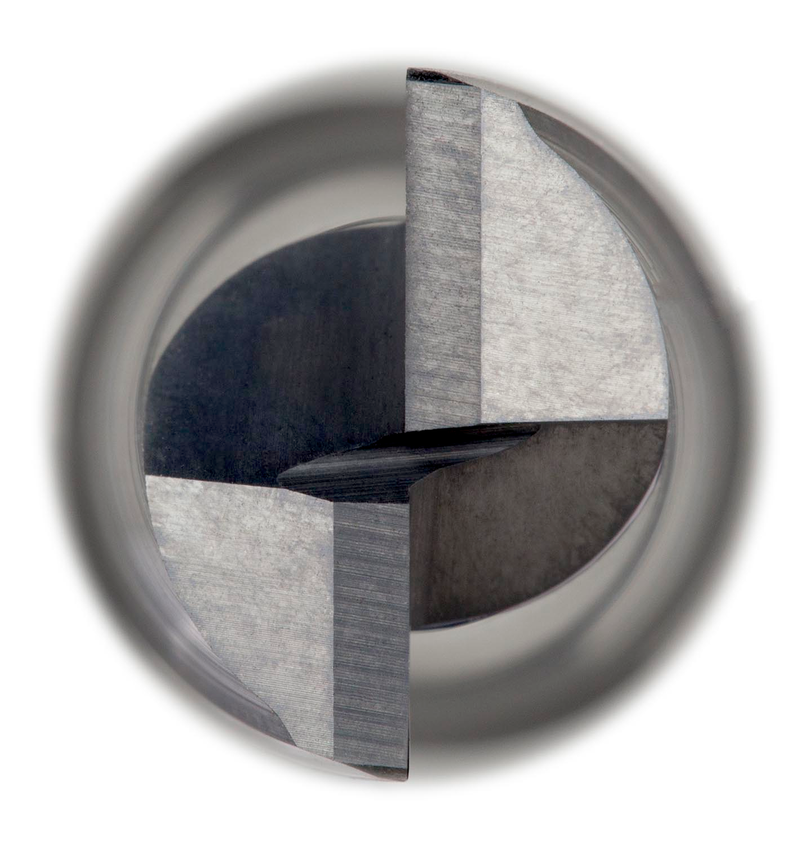

Fraise à rainurer longueur normale, 2 dents, diamètre 9 mm, longueur de coupe 21 mm, longueur totale 72 mm, chanfrein à 45° de 0,2 mm, selon la norme DORMER, avec queue cylindrique de 10 mm, carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour l'usinage de rainures et le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, l'aluminium coulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S8229.0
GradeAlCrN
Product Number7106962
Product FamilyS822
Insert Geometry
Depth of Cut Max — in (APMX)0.8268"
Depth of Cut Max — mm (APMX)21.0 mm

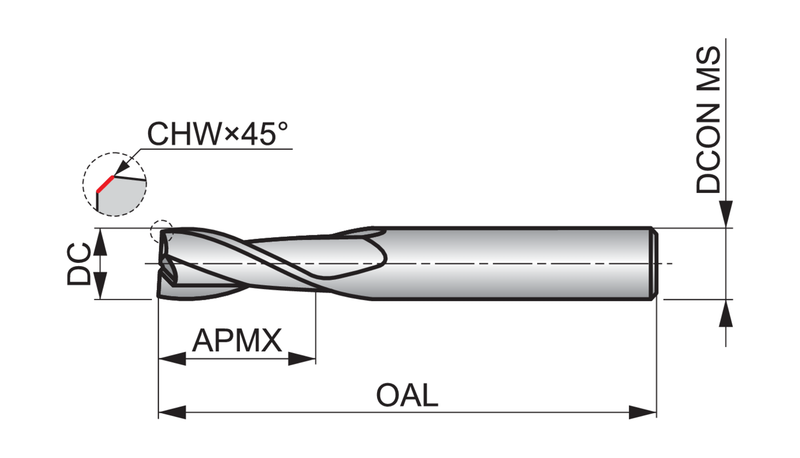

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47106962
EAN7320760698518
File Type Download
S8229.0 — Line Drawing PDF Download
