S82214.0
S82214.0
S82214.0
S82214.0

S82214.0

UGC DOR7106965
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.24 CAD - $180.24 CAD
$180.24 CAD
$180.24 CAD - $180.24 CAD
$180.24 CAD

Vendu en lots de : 1

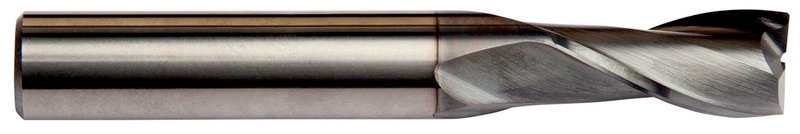

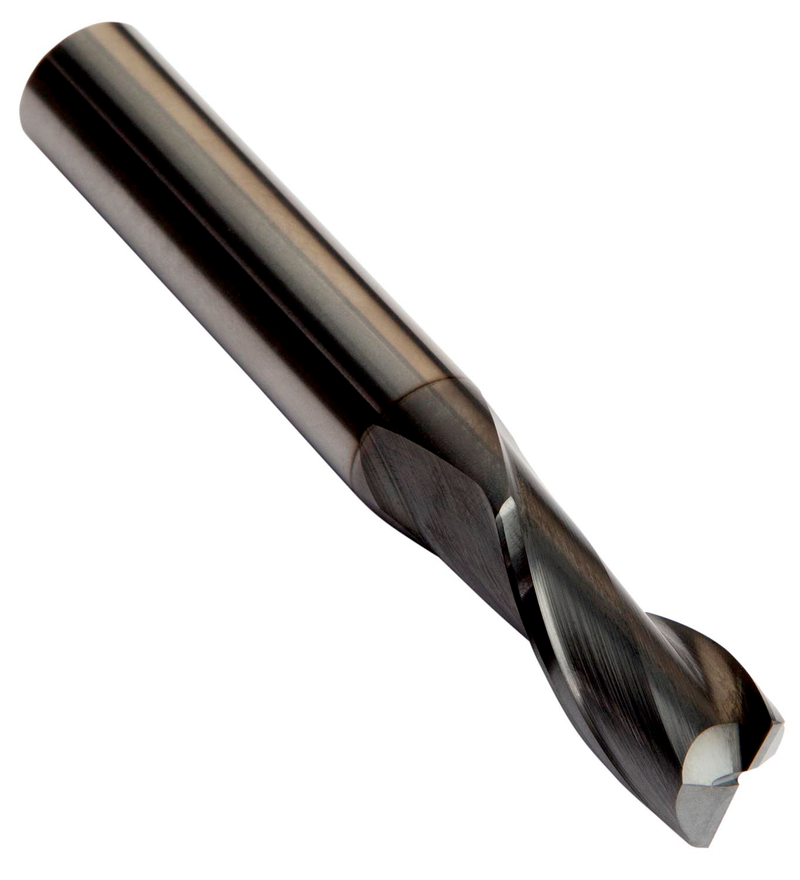

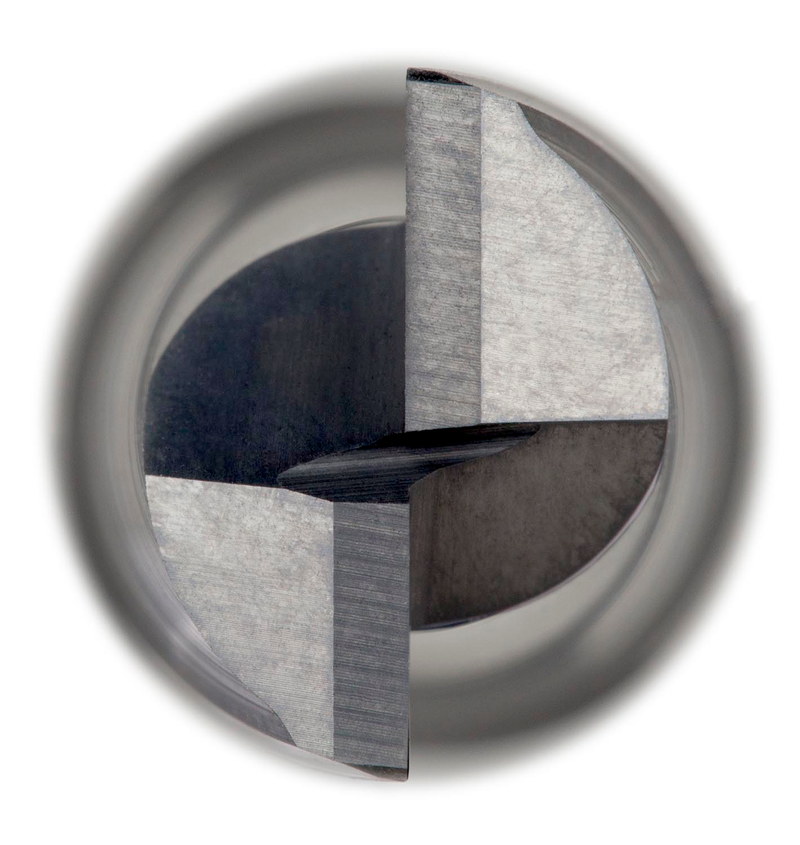

Fraise à rainurer à deux dents, longueur standard, de diamètre 14mm, longueur de coupe de 30mm, longueur totale de 83mm et chanfrein d'angle de 0.2mm à 45°, conforme à la norme DORMER, avec une queue cylindrique de 14mm, en carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de coupe de 9° pour le fraisage de rainures et le surfaçage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, l'aluminium moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S82214.0
GradeAlCrN
Product Number7106965
Product FamilyS822

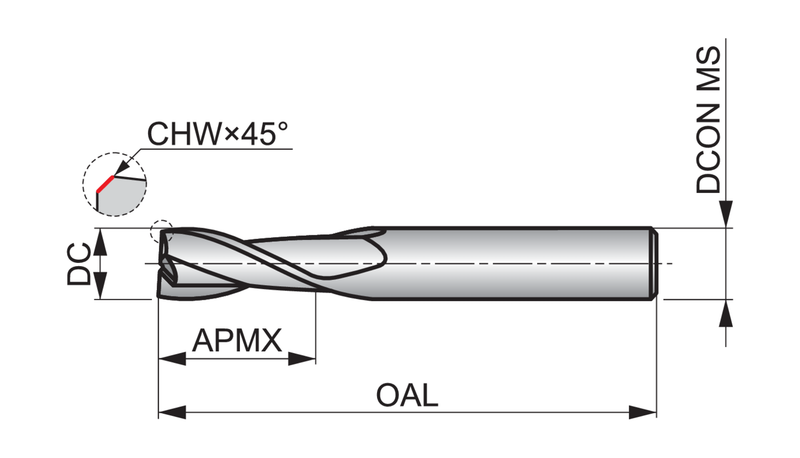

Insert Geometry
Depth of Cut Max — in (APMX)1.1811"
Depth of Cut Max — mm (APMX)30.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47106965
EAN7320760698549
File Type Download
S82214.0 — Line Drawing PDF Download
