UGC DOR7106966
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$235.74 CAD - $235.74 CAD
$235.74 CAD
$235.74 CAD - $235.74 CAD
$235.74 CAD

Vendu en lots de : 1

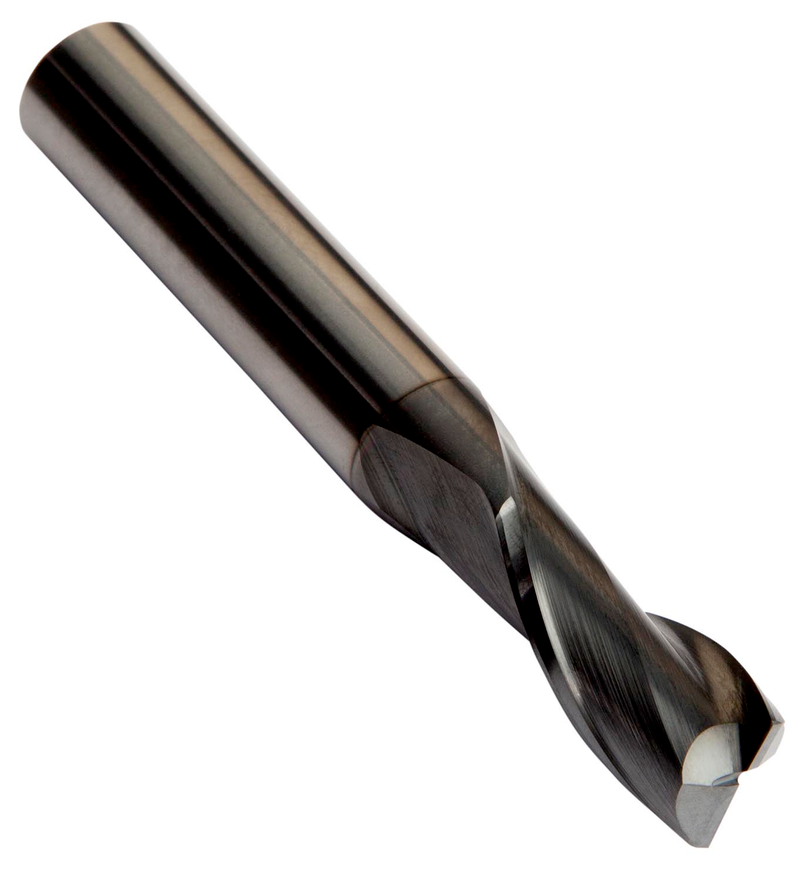

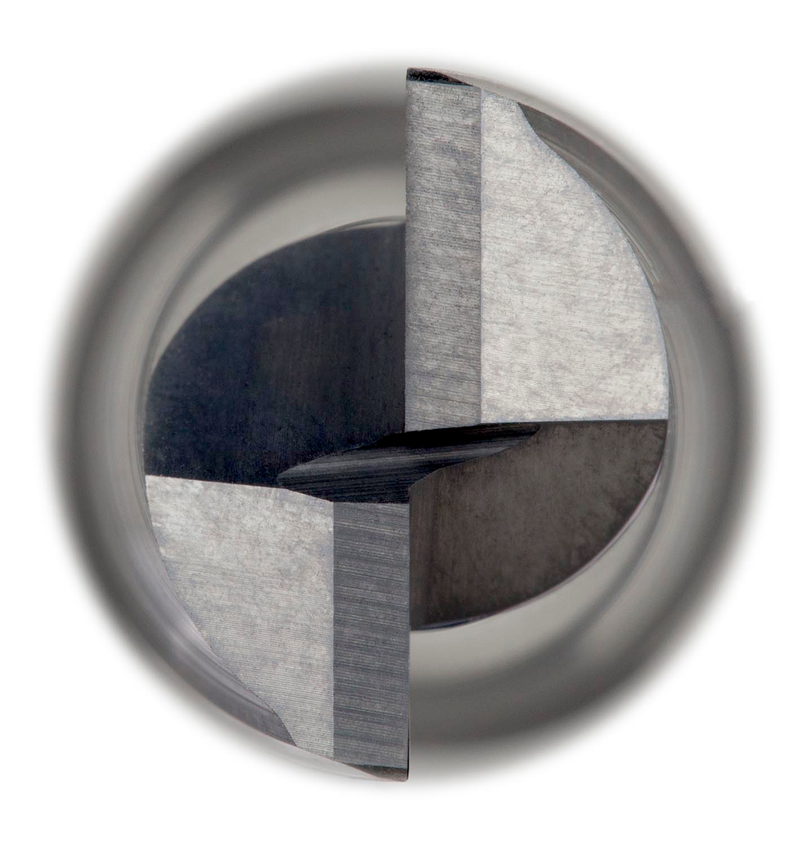

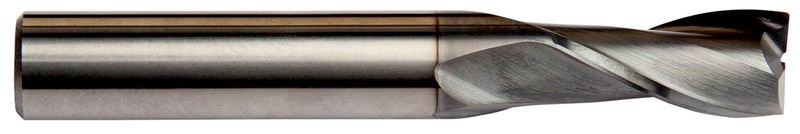

Fraise à rainurer standard 2 dents, diamètre 16 mm avec longueur de coupe 32 mm, longueur totale 92 mm et chanfrein 45° de 0,2 mm sur les arêtes, selon la norme DORMER avec un diamètre de queue cylindrique de 16 mm, en carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour le rainurage et l'usinage en ramping dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S82216.0
GradeAlCrN
Product Number7106966
Product FamilyS822

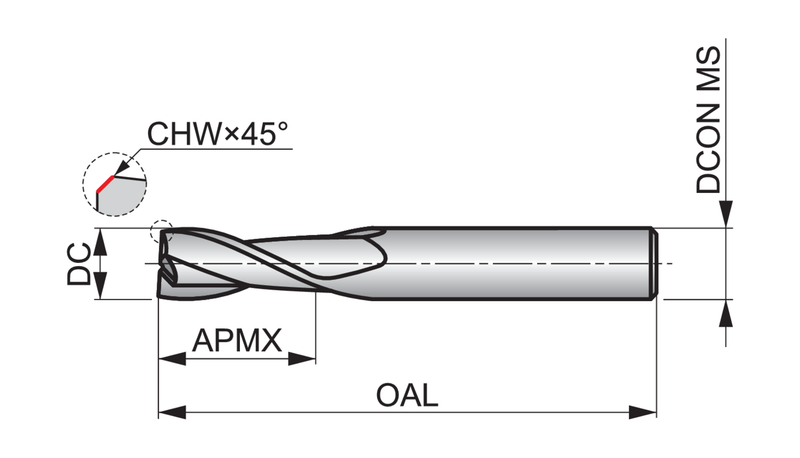

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47106966
EAN7320760698556
File Type Download
S82216.0 — Line Drawing PDF Download
