A1473/16
A1473/16
A1473/16
A1473/16

A1473/16

UGC DOR7146723
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.16 CAD - $10.16 CAD
$10.16 CAD
$10.16 CAD - $10.16 CAD
$10.16 CAD

Vendu en lots de : 10

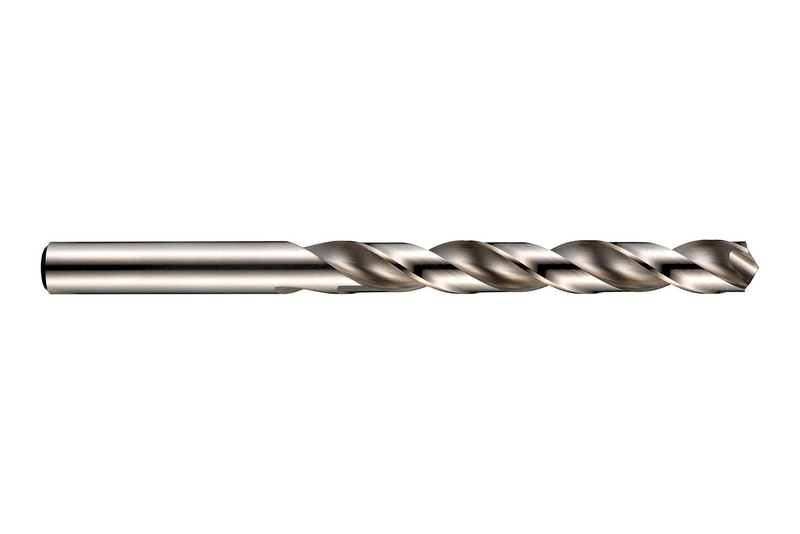

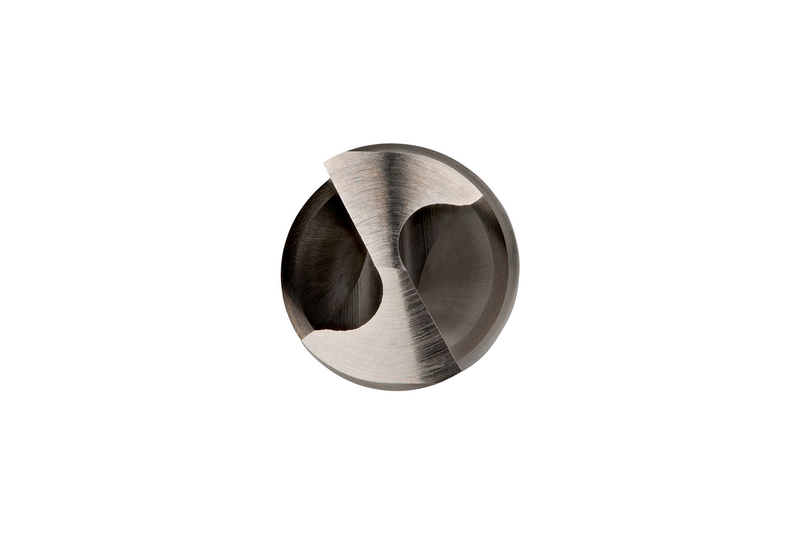

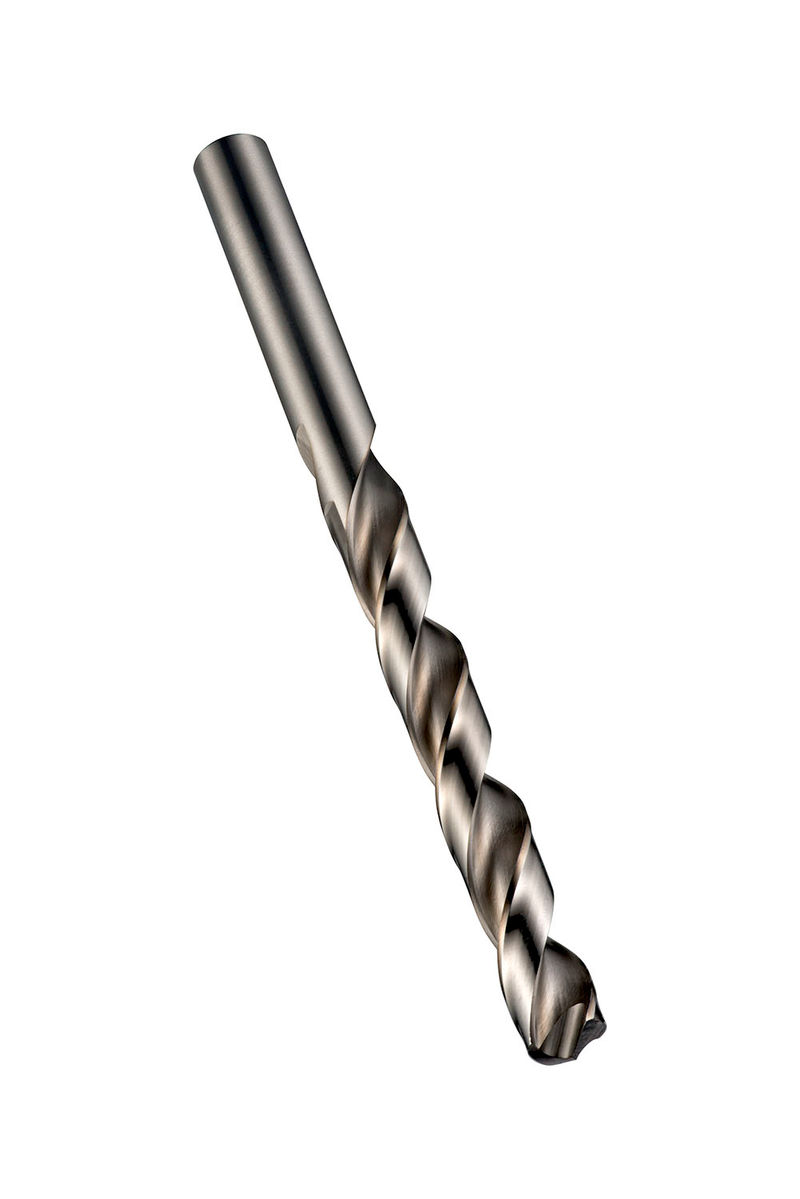

Foret hél. cyl. série courte D. 0,1875" (3/16) L. tot. 86 mm L. util. 52 mm norme DIN 338, pointe conique affûtage en croix 130°, HSS-E cobalt, finition polie, pour perçage 4xD sans débourrage dans les aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1473/16
GradeLumineux
Product Number7146723
Product FamilyA147
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)3.3858"
Overall Length — mm (OAL)86.0 mm
Flute Length — in (LCF)2.0472"
Flute Length — mm (LCF)52.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1874"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number47146723
EAN7320760702444
File Type Download
A1473/16 — 3D Model STP Download
A1473/16 — Line Drawing PDF Download
