A14712.5
A14712.5
A14712.5
A14712.5

A14712.5

UGC DOR7146725
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.26 CAD - $57.26 CAD
$57.26 CAD
$57.26 CAD - $57.26 CAD
$57.26 CAD

Vendu en lots de : 1

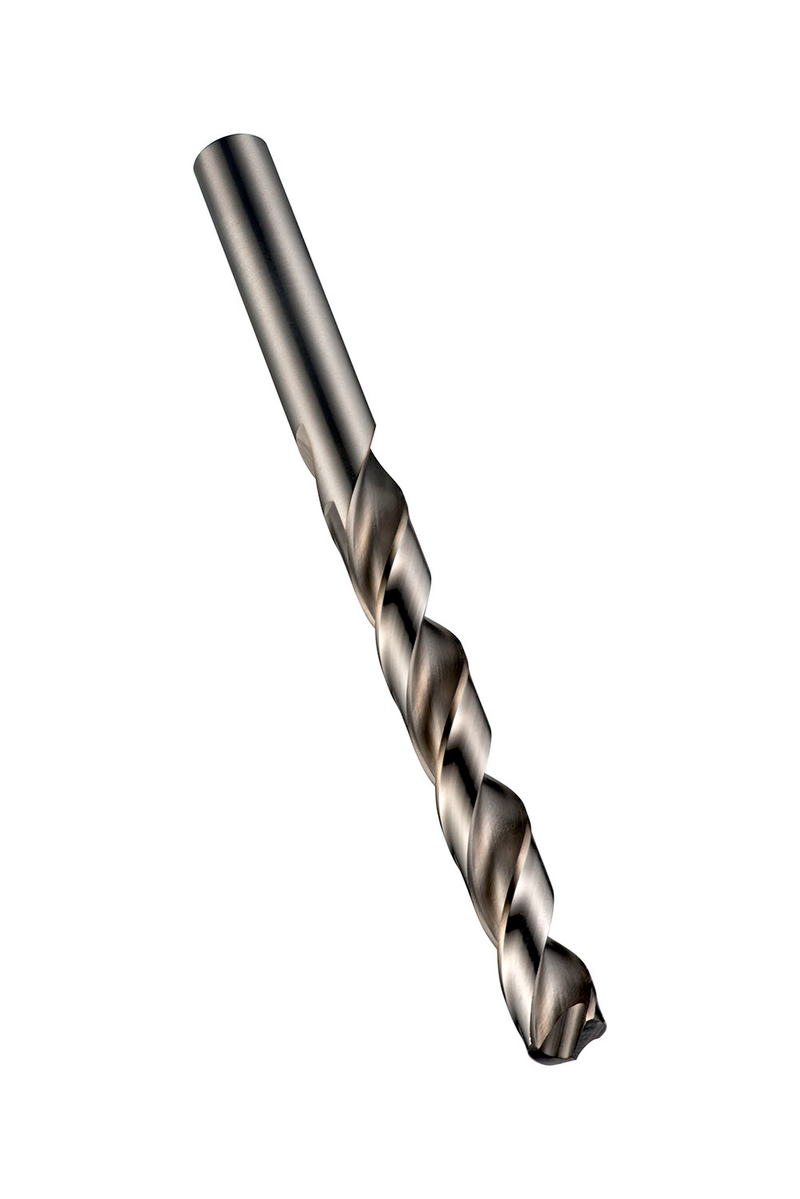

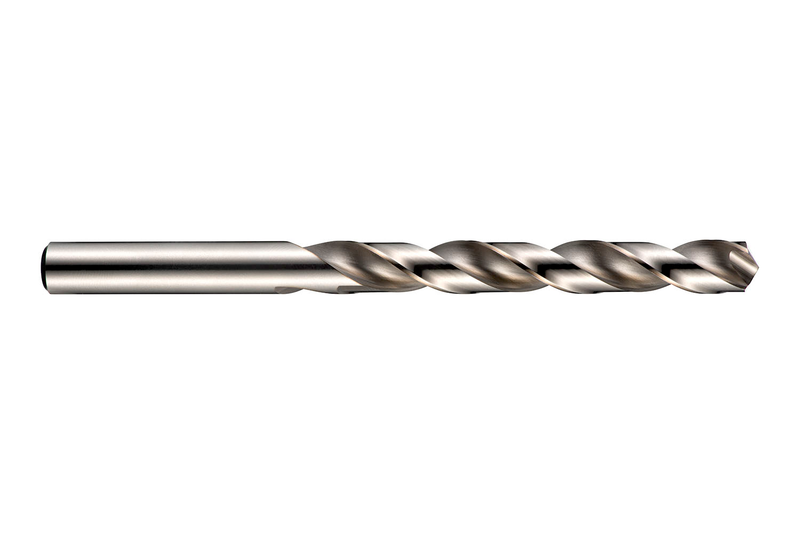

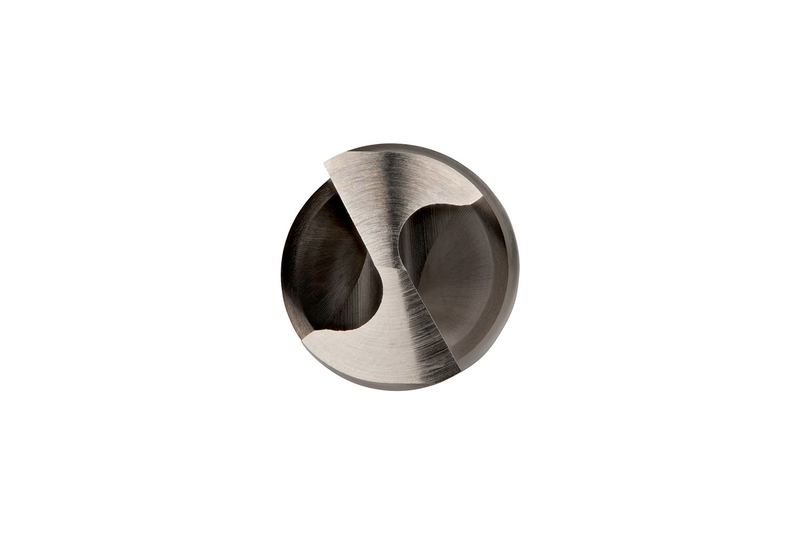

Foret court avec queue cylindrique, diamètre 12,5 mm, longueur totale 151 mm et longueur utile 101 mm, selon la norme DIN 338, à pointe conique amincie à 130° avec listels rectifiés, en HSS-E au cobalt avec finition brillante pour perçage 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A14712.5
GradeLumineux
Product Number7146725
Product FamilyA147
Dimensions
Cutting Diameter — in (DC)0.4921"
Cutting Diameter — mm (DC)12.5 mm
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Flute Length — in (LCF)3.9764"
Flute Length — mm (LCF)101.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number47146725
EAN7320760702468
File Type Download
A14712.5 — 3D Model STP Download
A14712.5 — Line Drawing PDF Download
