UGC DOR7147790
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$377.40 CAD - $377.40 CAD
$377.40 CAD
$377.40 CAD - $377.40 CAD
$377.40 CAD

Vendu en lots de : 1

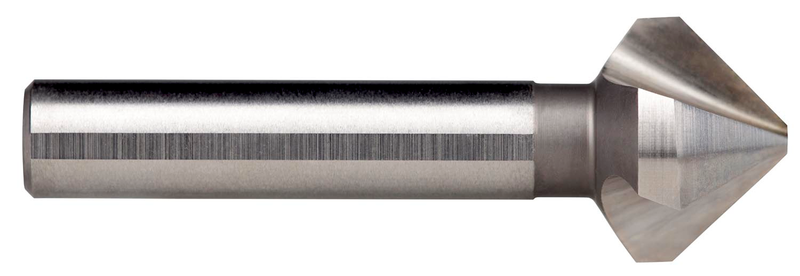

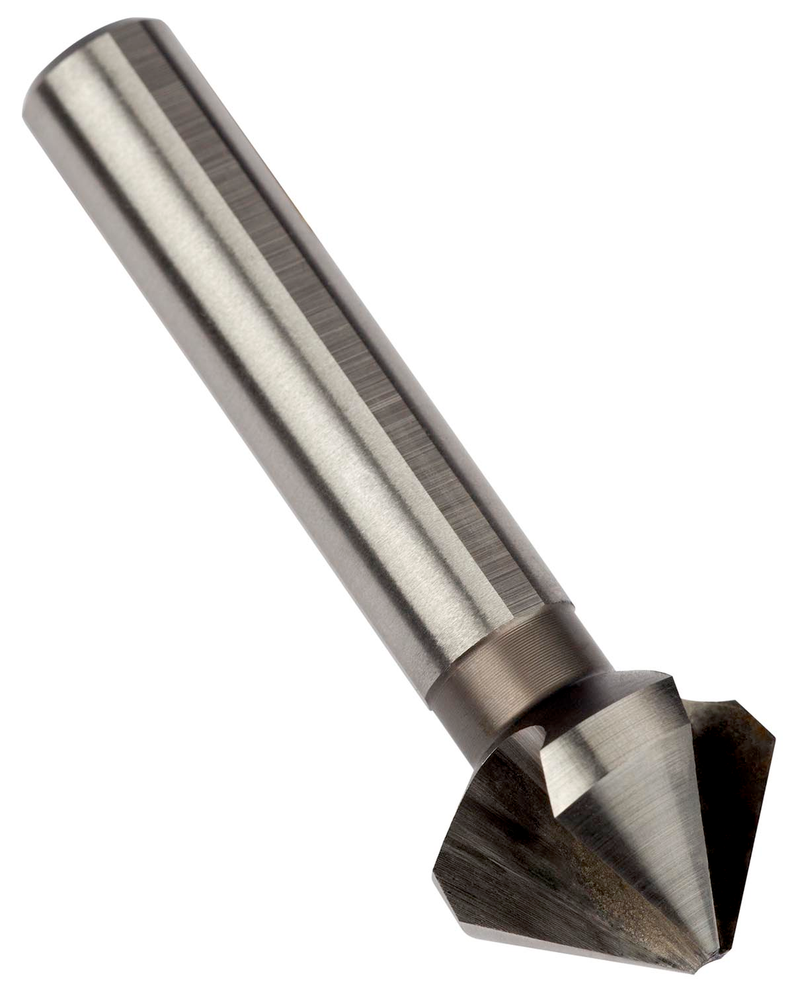

Fraise à chanfreiner trois tailles, angle de chanfreinage 90°, diamètre maximal 40,00 mm, longueur totale 118 mm, longueur de la tête 20 mm et queue à trois pans de 16 mm, conforme à la norme DIN 335 C pour produire un logement conique pour les vis à tête fraisée ISO métriques avec un diamètre de trou minimum de 4,50 mm, HSS avec finition brillante standard pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés, de la fonte grise, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G10640.0
GradeLumineux
Product Number7147790
Product FamilyG106

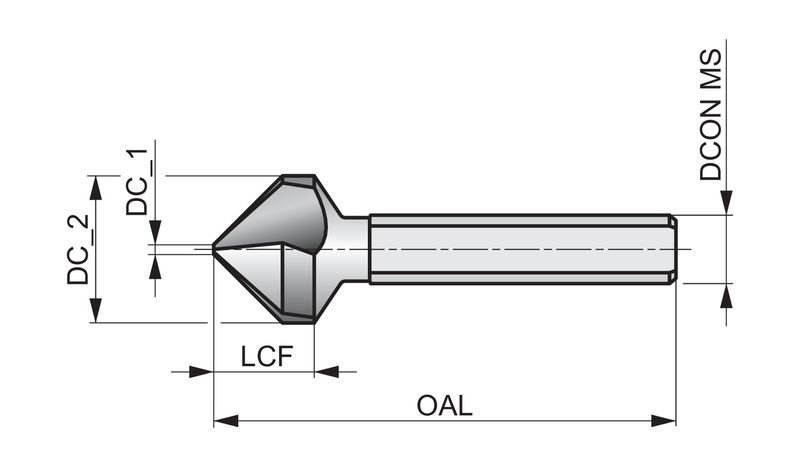

Dimensions
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Flute Length — mm (LCF)20.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm

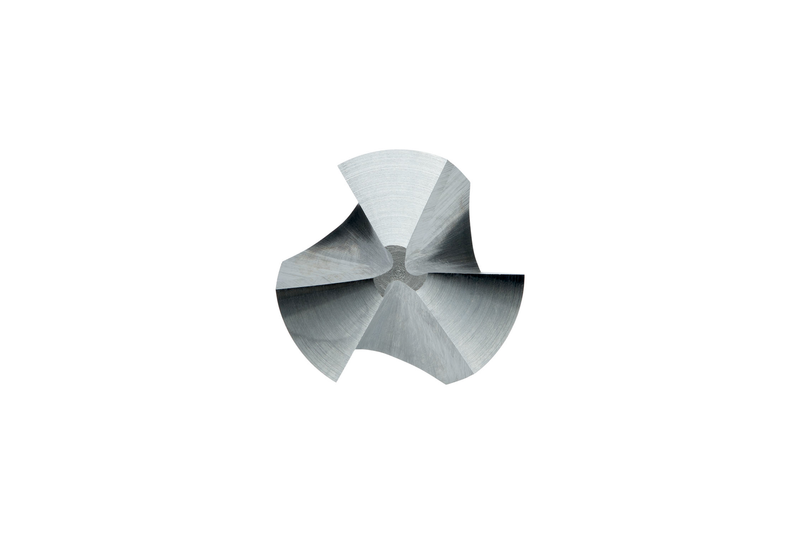

Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankTige cylindrique avec 3 méplats
Direction of ToolD'accord
StandardDIN 335 C
Reference Numbers
EDP Number47147790
EAN7320760702673
File Type Download
G10640.0 — Line Drawing PDF Download
