G10720.5
G10720.5
G10720.5
G10720.5

G10720.5

UGC DOR7147811
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$103.60 CAD - $103.60 CAD
$103.60 CAD
$103.60 CAD - $103.60 CAD
$103.60 CAD

Vendu en lots de : 1

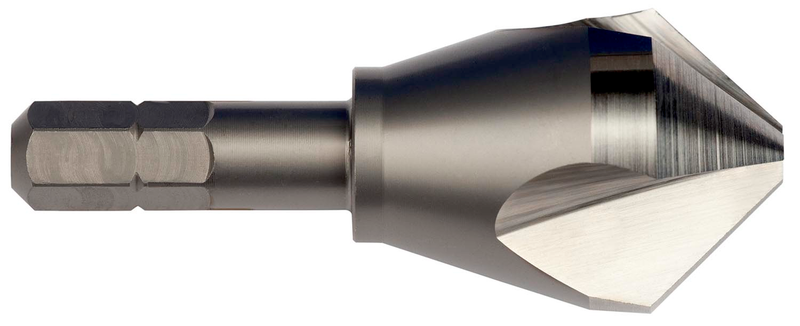

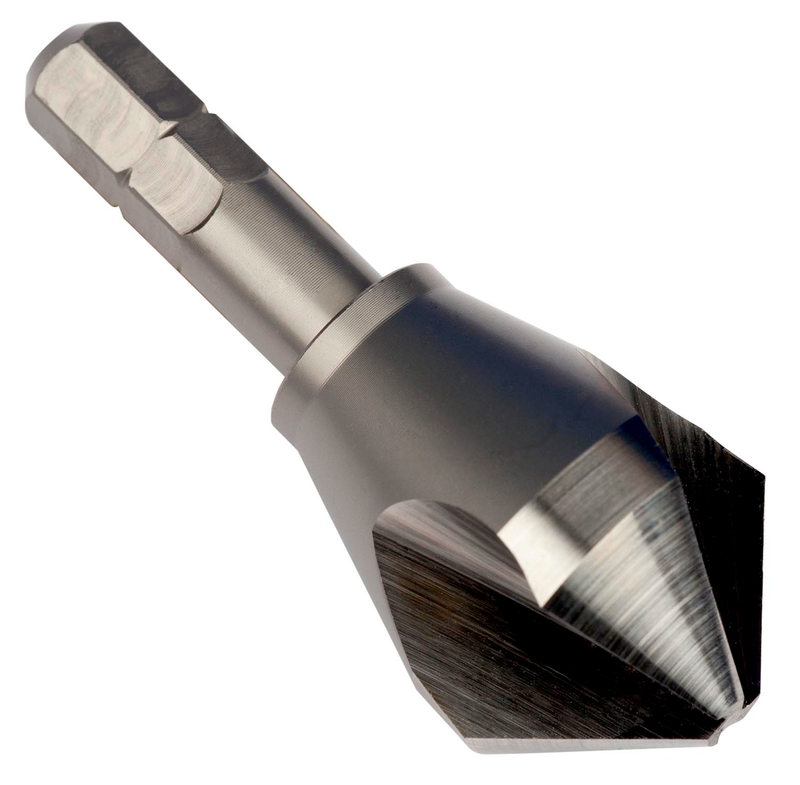

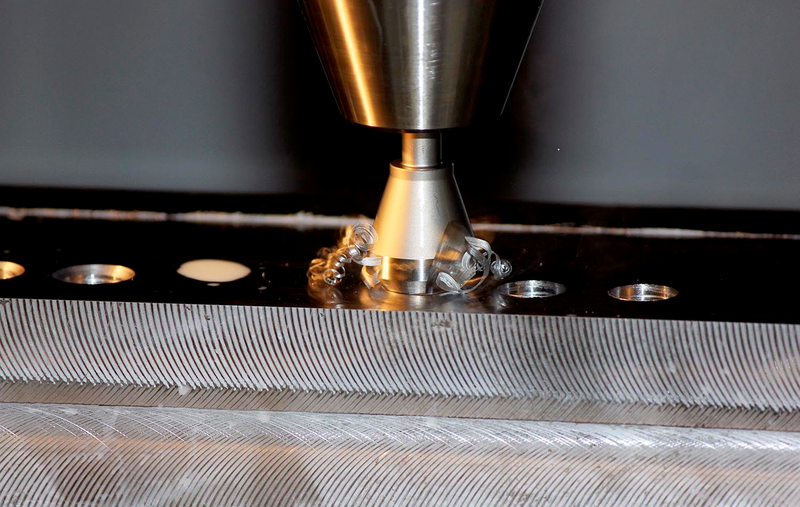

Embout fraise conique à 3 tranchants, angle de chanfreinage 90°, diamètre maximum 20.50mm, longueur totale 50mm et entraînement hexagonal 1/4", selon la norme DORMER pour réaliser un logement conique pour vis à tête fraisée métrique ISO avec un diamètre de trou minimum de 3.50mm, en HSS-E à base de cobalt avec finition brillante standard pour l'usinage de l'acier et de l'acier moulé, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G10720.5
GradeLumineux
Product Number7147811
Product FamilyG107

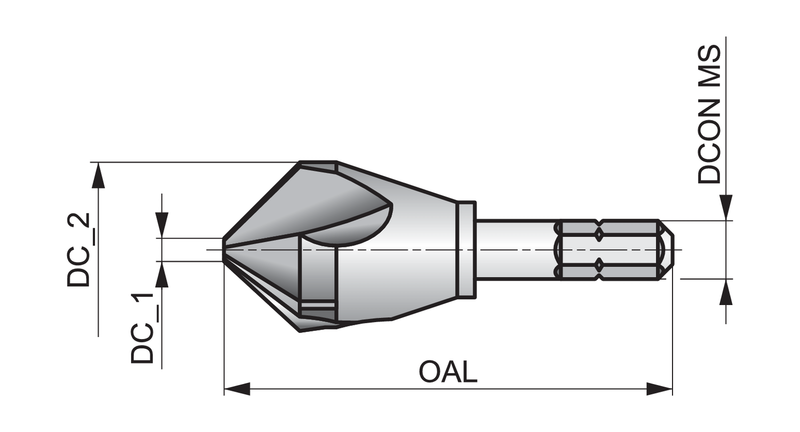

Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Flute Length — mm (LCF)11.3 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankTige cylindrique avec six pans
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number47147811
EAN7320760702888
File Type Download
G10720.5 — Line Drawing PDF Download
