50A04R-SMORC12-C
50A04R-SMORC12-C
50A04R-SMORC12-C

50A04R-SMORC12-C

UGC DOR7155896
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$506.00 CAD - $506.00 CAD
$506.00 CAD
$506.00 CAD - $506.00 CAD
$506.00 CAD

Vendu en lots de : 1

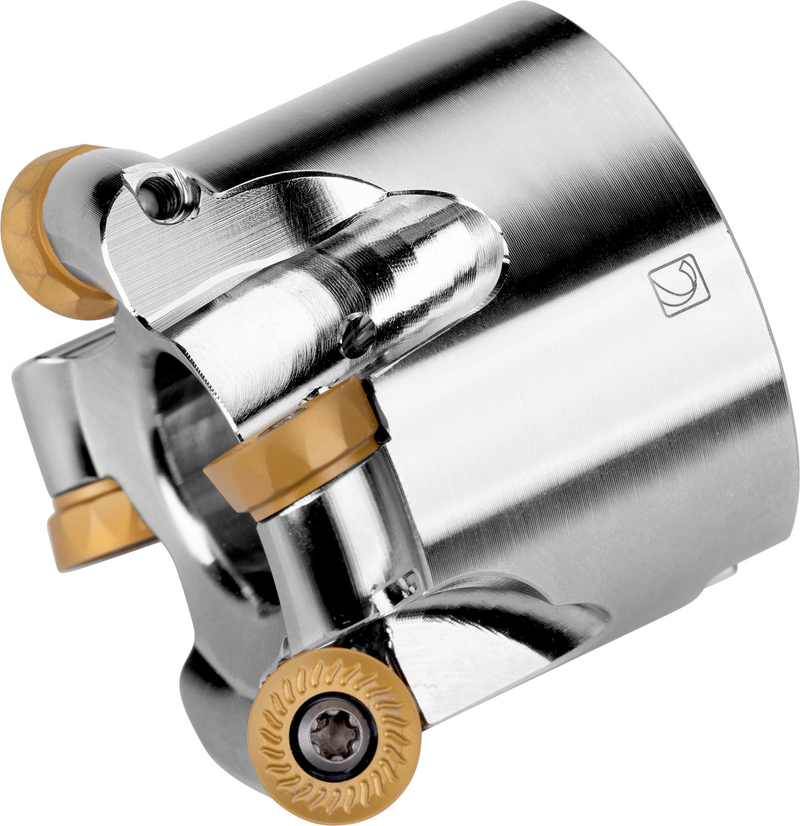

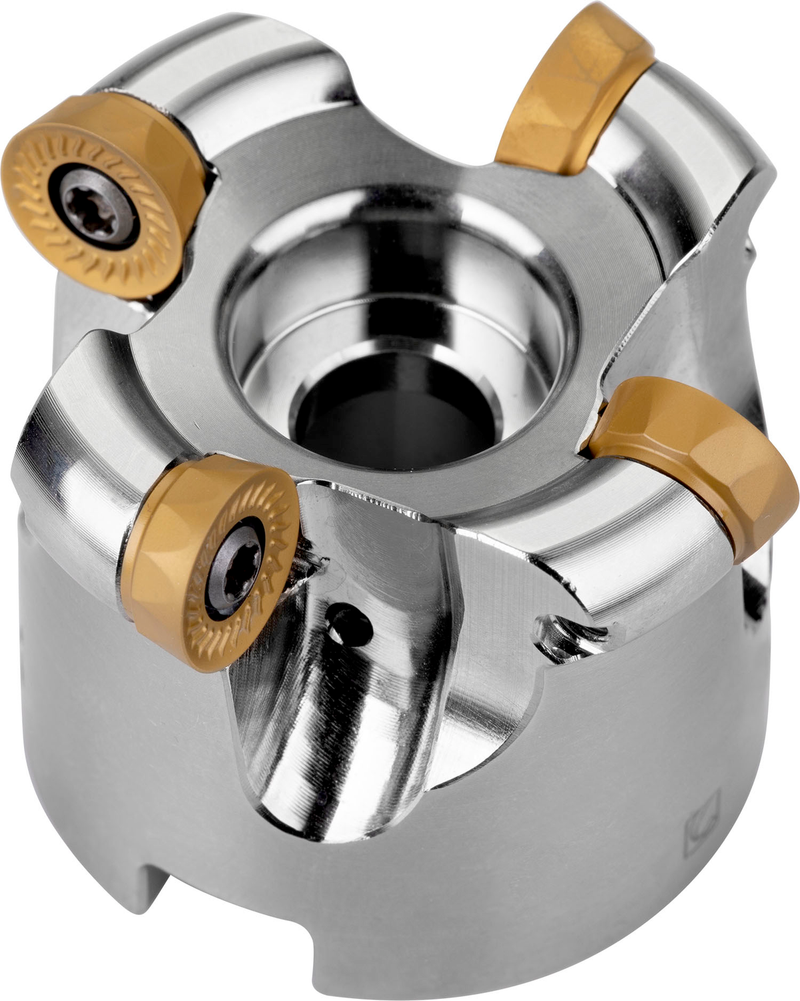

Fraise à surfacer à copier à géométrie double négative qui utilise 4 plaquettes simple face RCMT 1204MO, diamètre de coupe de 50 mm avec alésage de connexion de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage central pour surfaçage, fraisage de copiage, fraisage en rampe, fraisage hélicoïdal et fraisage en plongée progressive avec une profondeur de coupe maximale de 6,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A04R-SMORC12-C
Product Number7155896
Product FamilySRC12
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

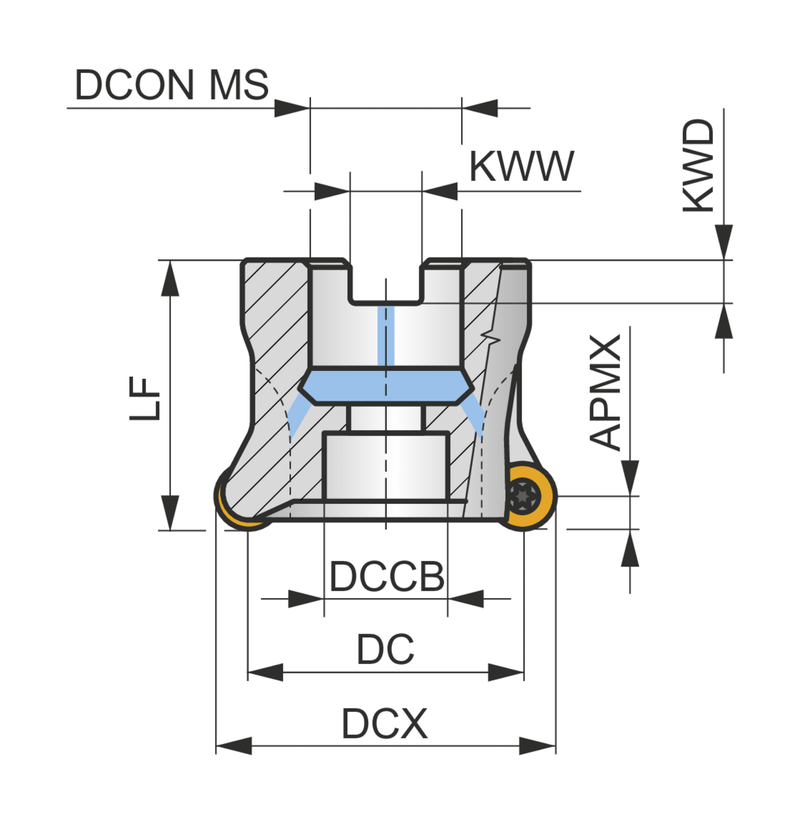

Dimensions
Cutting Diameter — in (DC)1.496"
Cutting Diameter — mm (DC)38.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSRC12
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7155896
EAN3603603162020
File Type Download
50A04R-SMORC12-C — 3D Model STP Download
50A04R-SMORC12-C — 2D Model DXF Download
50A04R-SMORC12-C — Line Drawing PDF Download
