63A05R-SMORC12-C
63A05R-SMORC12-C
63A05R-SMORC12-C

63A05R-SMORC12-C

UGC DOR7155897
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$603.00 CAD - $603.00 CAD
$603.00 CAD
$603.00 CAD - $603.00 CAD
$603.00 CAD

Vendu en lots de : 1

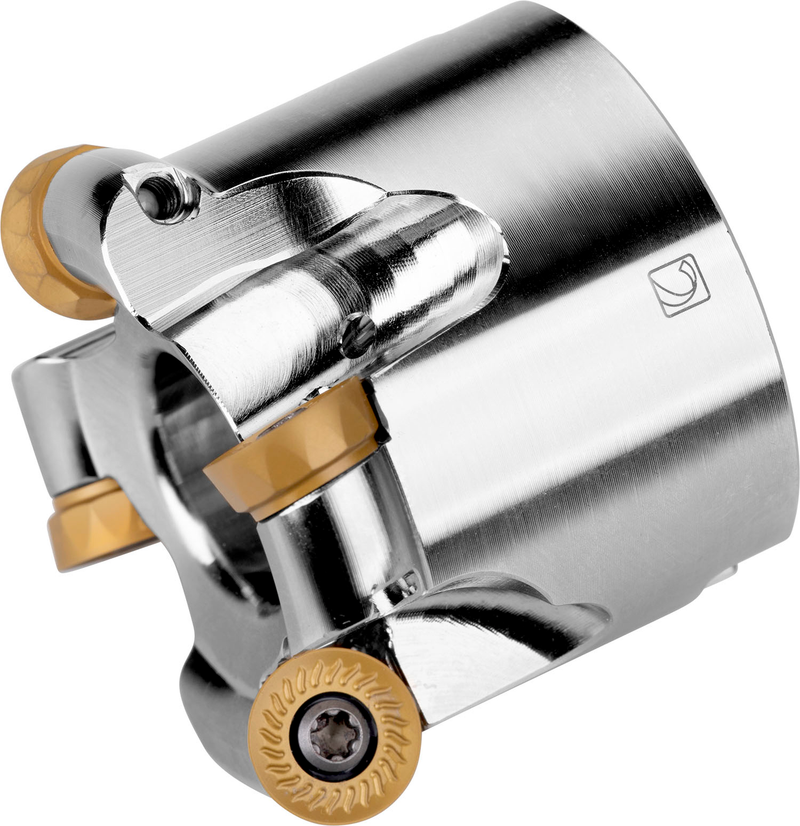

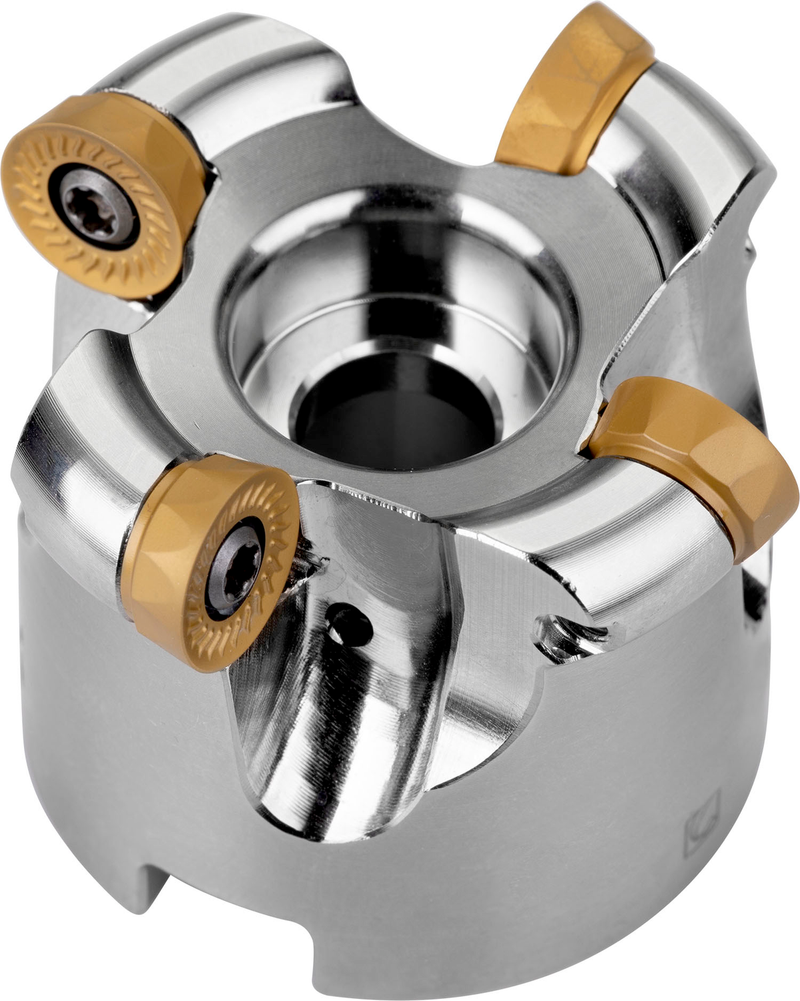

Fraise à copier avec géométrie double négative qui utilise 5 plaquettes simple-face RCMT 1204MO.., diamètre de coupe 63mm avec alésage de connexion de 22mm selon DIN 8030-A, longueur de dépassement de 40mm, arrosage par l'intérieur pour le surfaçage, le copiage, la plongée progressive, le fraisage hélicoïdal et le fraisage en rampe avec une profondeur de coupe maximale de 6,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A05R-SMORC12-C
Product Number7155897
Product FamilySRC12
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

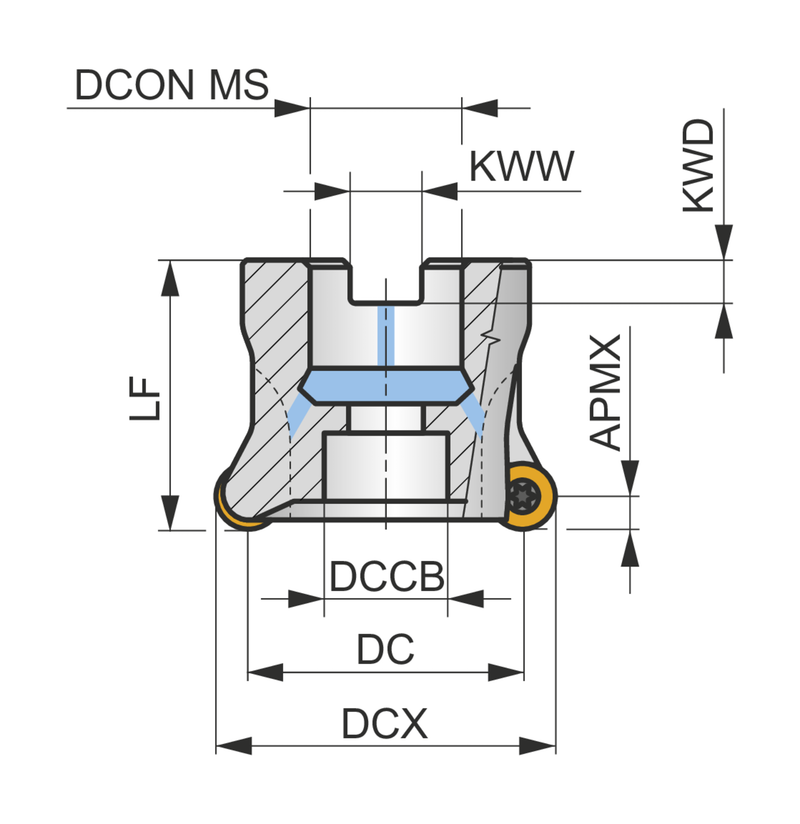

Dimensions
Cutting Diameter — in (DC)2.008"
Cutting Diameter — mm (DC)51.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSRC12
ShankFraise à surfacer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7155897
EAN3603603162037
File Type Download
63A05R-SMORC12-C — 3D Model STP Download
63A05R-SMORC12-C — 2D Model DXF Download
63A05R-SMORC12-C — Line Drawing PDF Download
