100A06R-SMORC12-C
100A06R-SMORC12-C
100A06R-SMORC12-C

100A06R-SMORC12-C

UGC DOR7155899
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$728.00 CAD - $728.00 CAD
$728.00 CAD
$728.00 CAD - $728.00 CAD
$728.00 CAD

Vendu en lots de : 1

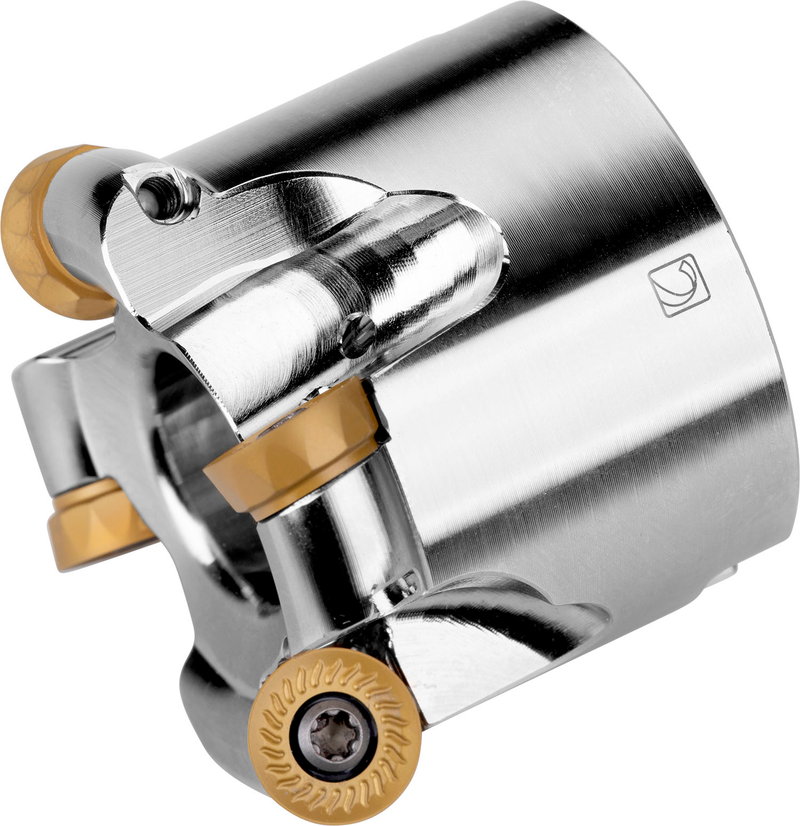

Fraise à copier avec une géométrie double négative utilisant 6 plaquettes simple face RCMT 1204MO..., diamètre de coupe de 100 mm avec alésage de connexion de 32 mm selon DIN 8030-A, longueur de dépassement de 50 mm, lubrification interne pour le surfaçage, le fraisage en plongée, le fraisage en hélice et le fraisage en plongée progressive avec une profondeur de coupe maximale de 6,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A06R-SMORC12-C
Product Number7155899
Product FamilySRC12
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

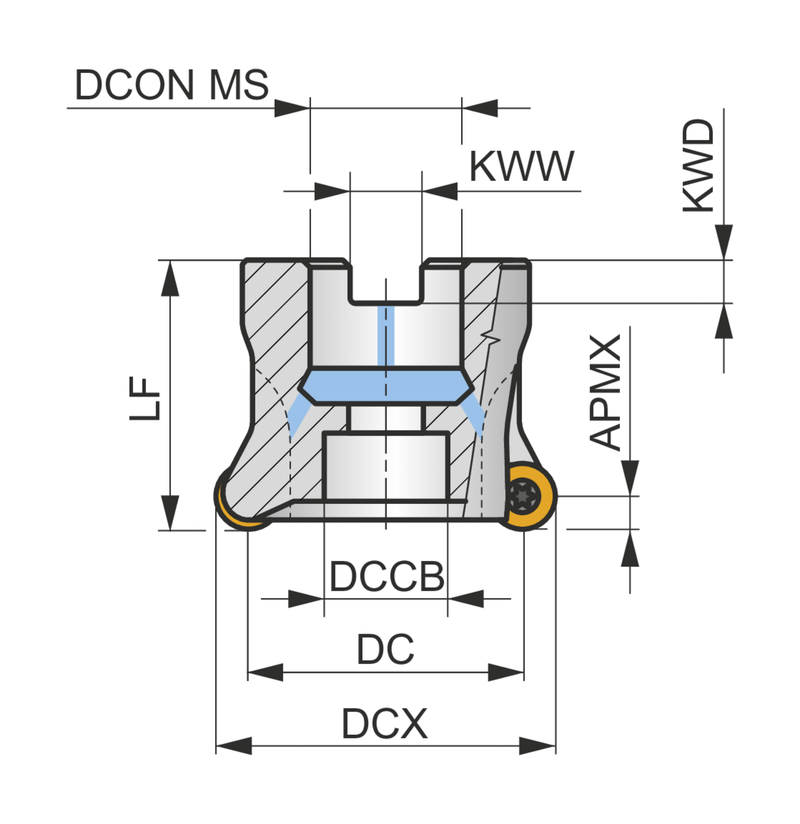

Dimensions
Cutting Diameter — in (DC)3.465"
Cutting Diameter — mm (DC)88.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSRC12
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7155899
EAN3603603162051
File Type Download
100A06R-SMORC12-C — 3D Model STP Download
100A06R-SMORC12-C — 2D Model DXF Download
100A06R-SMORC12-C — Line Drawing PDF Download
