160C07R-SMORC20-C
160C07R-SMORC20-C
160C07R-SMORC20-C

160C07R-SMORC20-C

UGC DOR7155926
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,098.00 CAD - $1,098.00 CAD
$1,098.00 CAD
$1,098.00 CAD - $1,098.00 CAD
$1,098.00 CAD

Vendu en lots de : 1

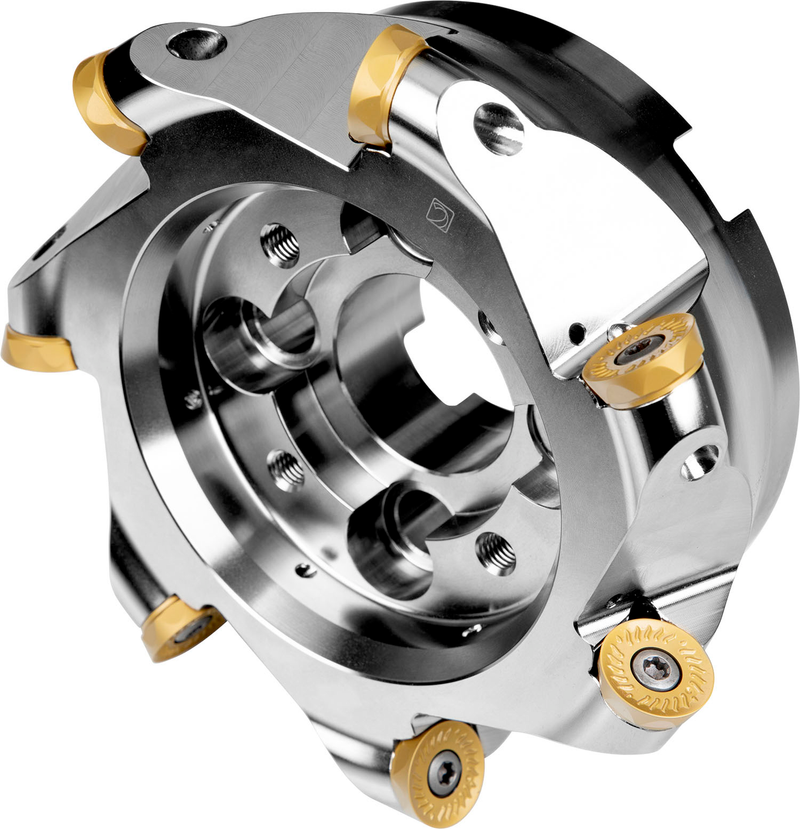

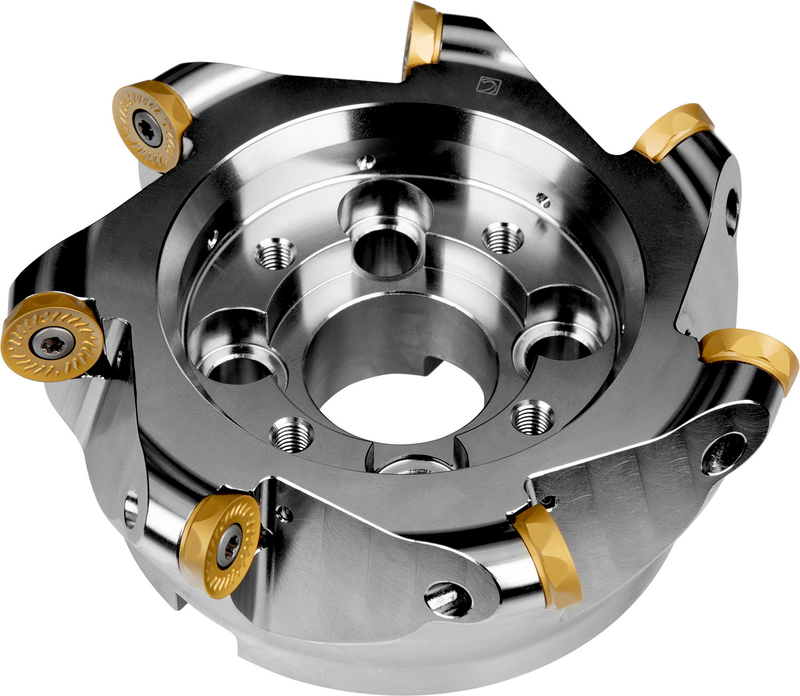

Fraise à copier avec géométrie double négative qui utilise 7 plaquettes simple face RCMT 2006MO.., diamètre de coupe 160mm avec alésage de connexion 40mm selon DIN 8030-C, longueur de saillie 63mm, arrosage par l'outil pour le surfaçage, le copiage, la plongée en rampe, le fraisage hélicoïdal et le fraisage en plongée progressive avec une profondeur de coupe maximale de 10,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160C07R-SMORC20-C
Product Number7155926
Product FamilySRC20
Insert Geometry
Depth of Cut Max — mm (APMX)2.9 mm
Dimensions
Cutting Diameter — in (DC)5.512"
Cutting Diameter — mm (DC)140.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSRC20
ShankFraise à surfacer-dresser DIN 8030 C
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7155926
EAN3603603162129
File Type Download
160C07R-SMORC20-C — 3D Model STP Download
160C07R-SMORC20-C — 2D Model DXF Download
160C07R-SMORC20-C — Line Drawing PDF Download
