160C12R-S45HN09C-CF
160C12R-S45HN09C-CF
160C12R-S45HN09C-CF

160C12R-S45HN09C-CF

UGC DOR7155952
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,993.00 CAD - $1,993.00 CAD
$1,993.00 CAD
$1,993.00 CAD - $1,993.00 CAD
$1,993.00 CAD

Vendu en lots de : 1

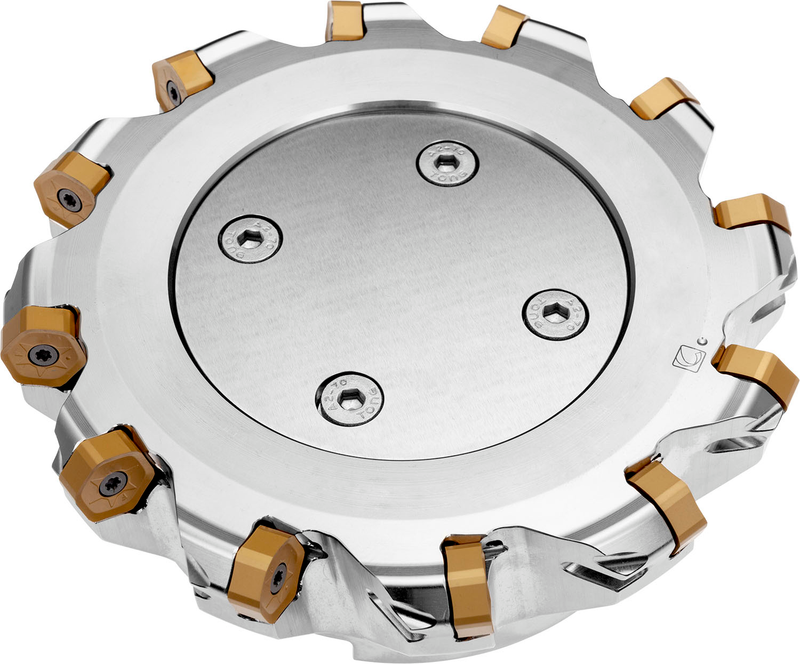

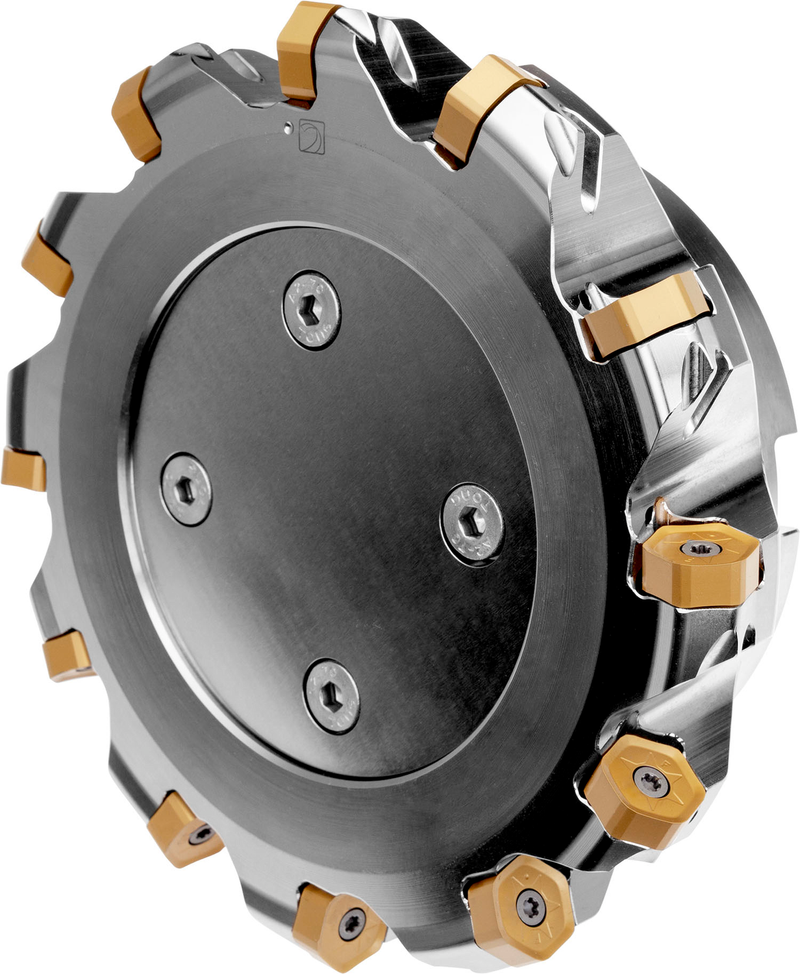

Fraise à surfacer avec géométrie double négative qui utilise 12 plaquettes double face HNGX 0906AN... ou XNGX 0906AN..., diamètre de coupe de 160 à 171,7 mm maximum avec un angle d'attaque de 45° et un alésage de raccordement de 40 mm selon la norme DIN 8030-C, longueur de saillie de 63 mm, arrosage central et pas différentiel pour le surfaçage, l'usinage en rampe, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160C12R-S45HN09C-CF
Product Number7155952
Product FamilySHN09C
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

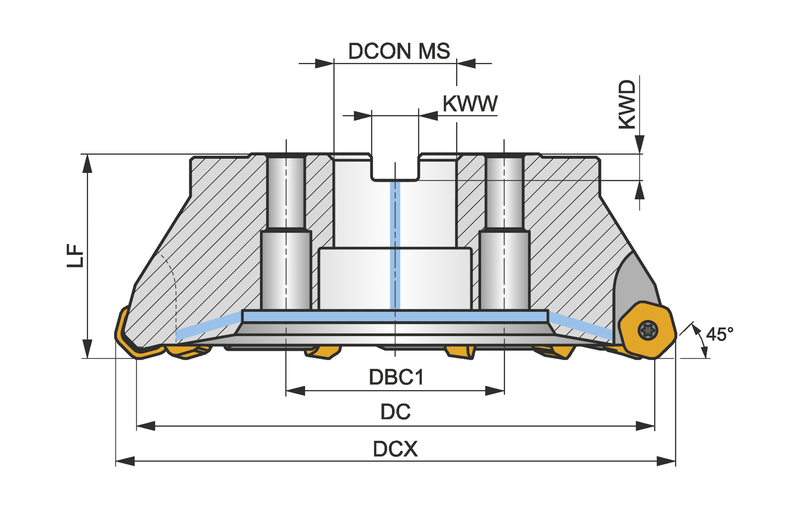

Dimensions
Cutting Diameter — in (DC)6.299"
Cutting Diameter — mm (DC)160.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignSHN09C
ShankFraise-mère DIN 8030 C
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7155952
EAN3603603162167
File Type Download
160C12R-S45HN09C-CF — 3D Model STP Download
160C12R-S45HN09C-CF — 2D Model DXF Download
160C12R-S45HN09C-CF — Line Drawing PDF Download
