200C10R-S45HN09C-CF
200C10R-S45HN09C-CF
200C10R-S45HN09C-CF

200C10R-S45HN09C-CF

UGC DOR7155954
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,607.00 CAD - $2,607.00 CAD
$2,607.00 CAD
$2,607.00 CAD - $2,607.00 CAD
$2,607.00 CAD

Vendu en lots de : 1

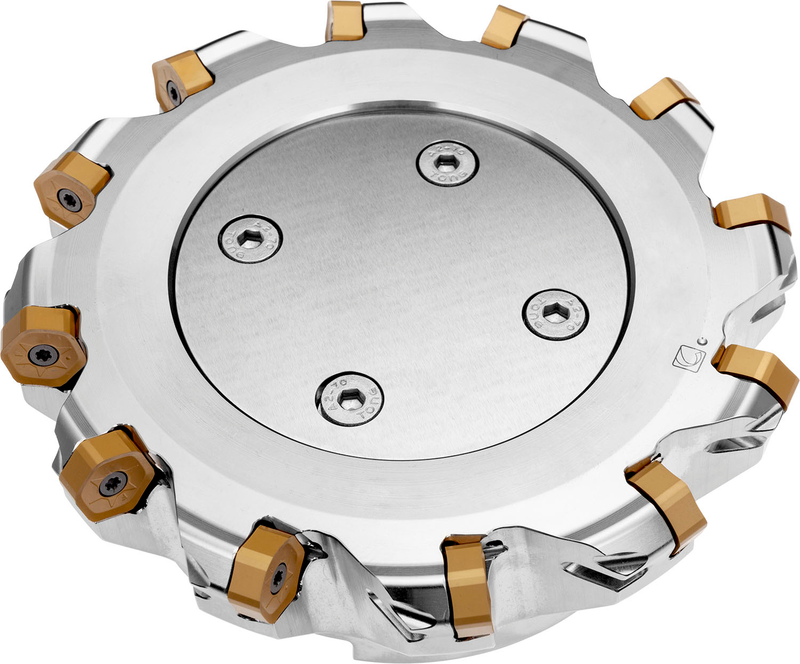

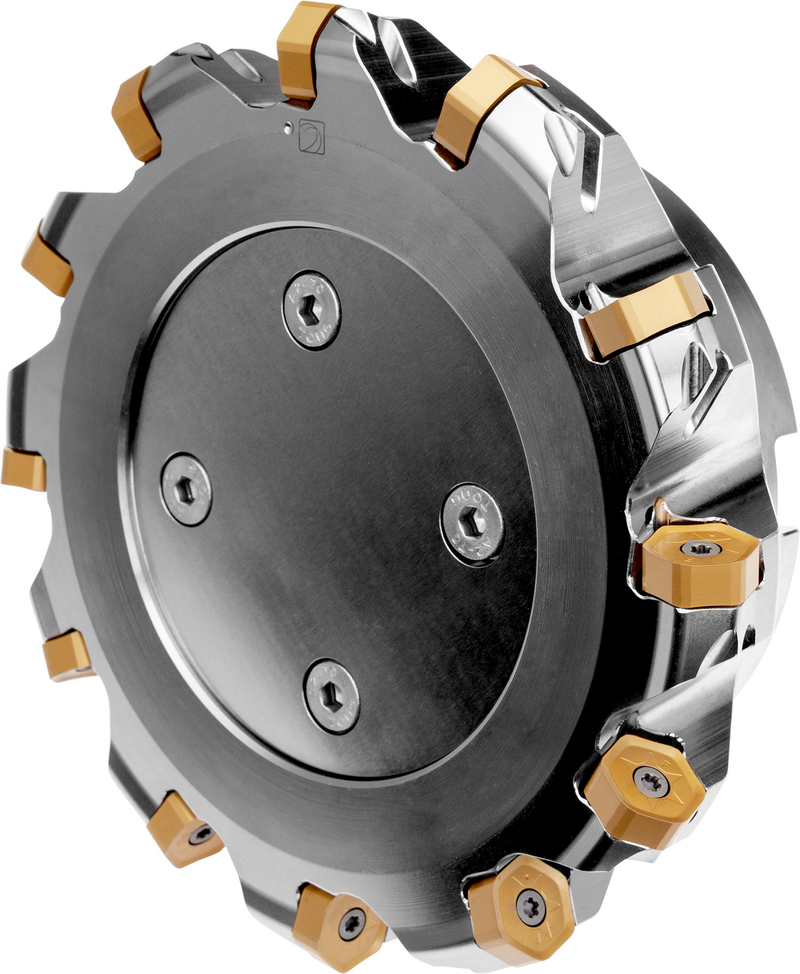

Fraise à surfacer avec géométrie double négative qui utilise 10 plaquettes double face HNGX 0906AN... ou XNGX 0906AN..., diamètre de coupe 200 à 211,7 mm maximum avec angle d'attaque de 45° et alésage de raccordement de 60 mm selon DIN 8030-C, longueur de saillie de 63 mm, arrosage central et pas différentiel pour le surfaçage, l'usinage en rampe, le fraisage par plongées progressives et le chanfreinage avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200C10R-S45HN09C-CF
Product Number7155954
Product FamilySHN09C
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

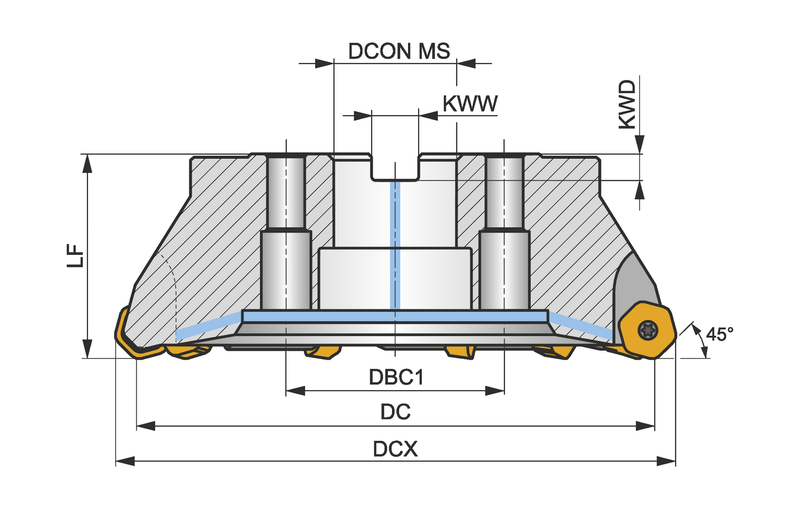

Dimensions
Cutting Diameter — in (DC)7.874"
Cutting Diameter — mm (DC)200.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignSHN09C
ShankFraise coquille DIN 8030 C
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7155954
EAN3603603162181
File Type Download
200C10R-S45HN09C-CF — 3D Model STP Download
200C10R-S45HN09C-CF — 2D Model DXF Download
200C10R-S45HN09C-CF — Line Drawing PDF Download
