160C08R-S90LN16-C
160C08R-S90LN16-C
160C08R-S90LN16-C

160C08R-S90LN16-C

UGC DOR7156001
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,651.00 CAD - $1,651.00 CAD
$1,651.00 CAD
$1,651.00 CAD - $1,651.00 CAD
$1,651.00 CAD

Vendu en lots de : 1

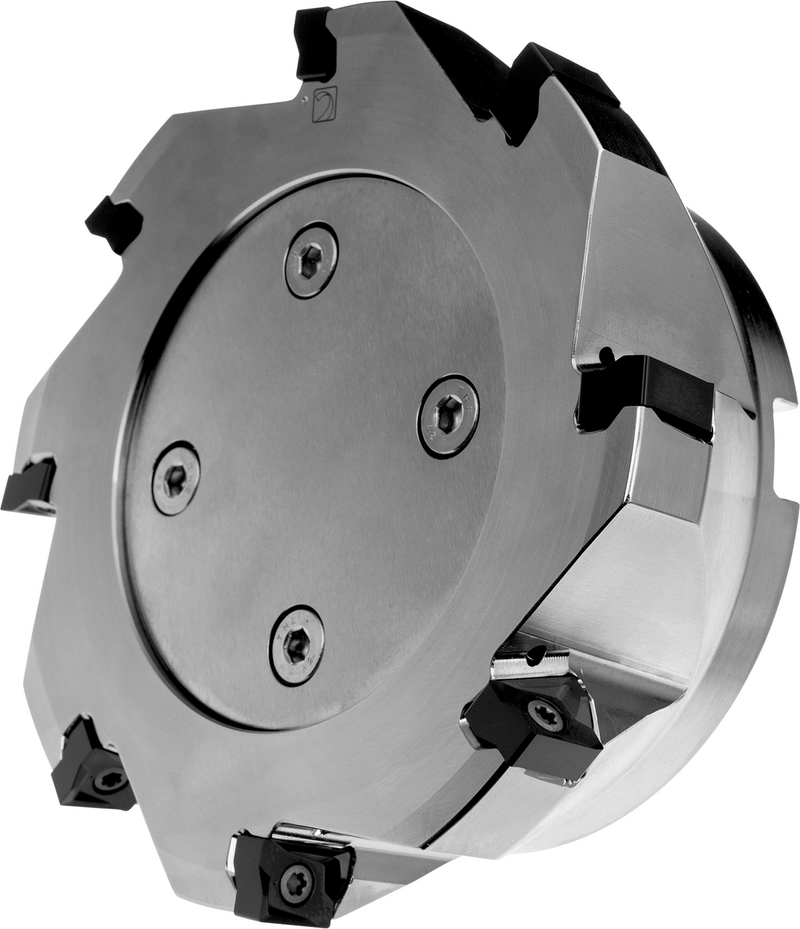

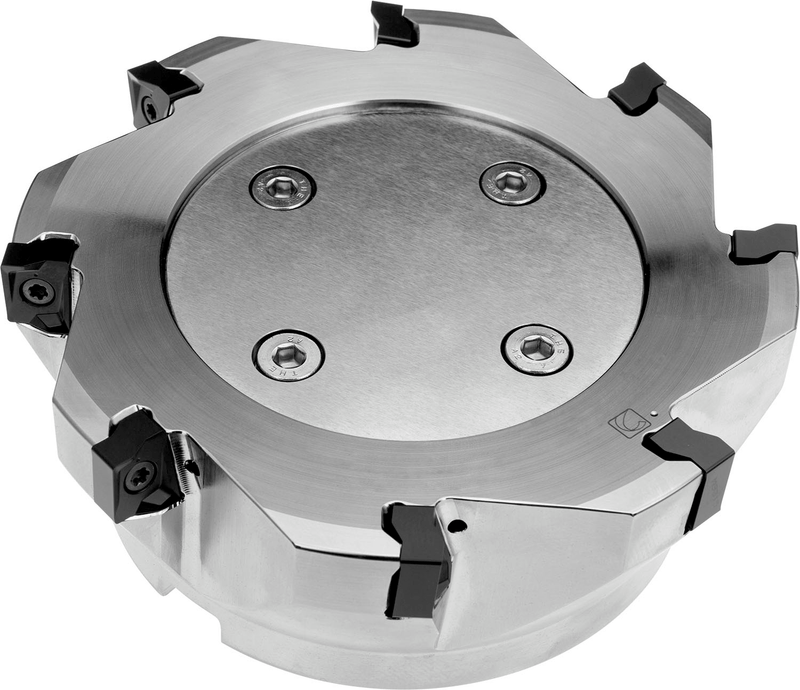

Fraise à épaule avec géométrie négative double, utilisant 8 plaquettes double face LNMU 1607... ou LNGU 1607..., diamètre de coupe 160 mm avec un angle d'attaque de 90° et un alésage de raccordement de 40 mm conforme à la norme DIN 8030-C, longueur de saillie de 63 mm, arrosage central et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 13,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160C08R-S90LN16-C
Product Number7156001
Product FamilySLN16
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

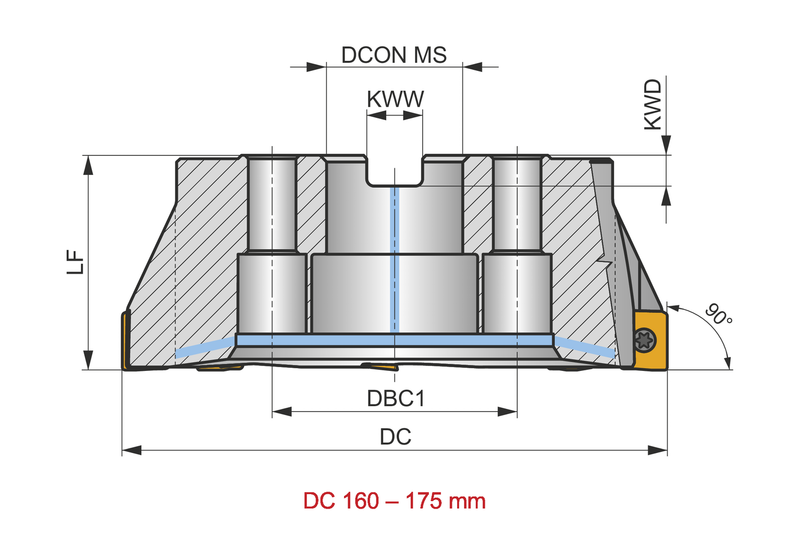

Dimensions
Cutting Diameter — in (DC)6.299"
Cutting Diameter — mm (DC)160.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSLN16
ShankFraise à surfacer-dresser DIN 8030 C
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7156001
EAN3603603162235
File Type Download
160C08R-S90LN16-C — 3D Model STP Download
160C08R-S90LN16-C — 2D Model DXF Download
160C08R-S90LN16-C — Line Drawing PDF Download
