PPH 2500-CL1:2003
PPH 2500-CL1:2003

PPH 2500-CL1:2003

UGC DOR7156085
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.29 CAD - $88.29 CAD
$88.29 CAD
$88.29 CAD - $88.29 CAD
$88.29 CAD

Vendu en lots de : 10

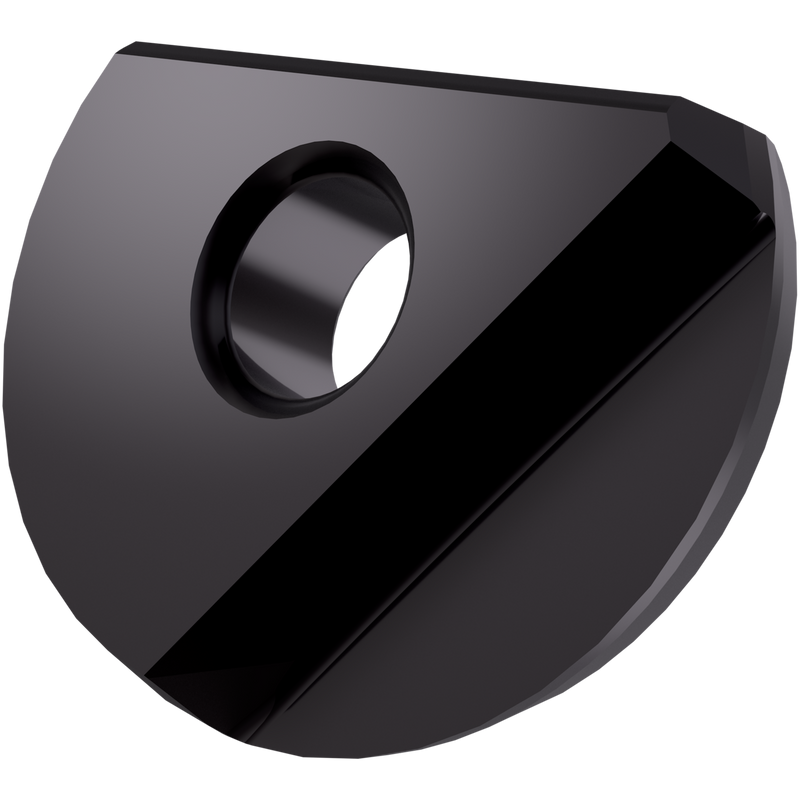

Plaquette fraise boule à copier d'un diamètre de 24,99 mm pour une profondeur de coupe maximale de 2,5 mm, géométrie CL1 et carbure WC-Co à grain fin revêtu PVD 2003 dans les gammes de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH 2500-CL1:2003
Grade2003
Chipbreaker (CBMD)CL1
Product Number7156085
Product FamilyPPH
Insert Geometry
Insert DesignHPP
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.236"
Insert Thickness — mm (S)6.0 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7156085
EAN3603603162419
File Type Download

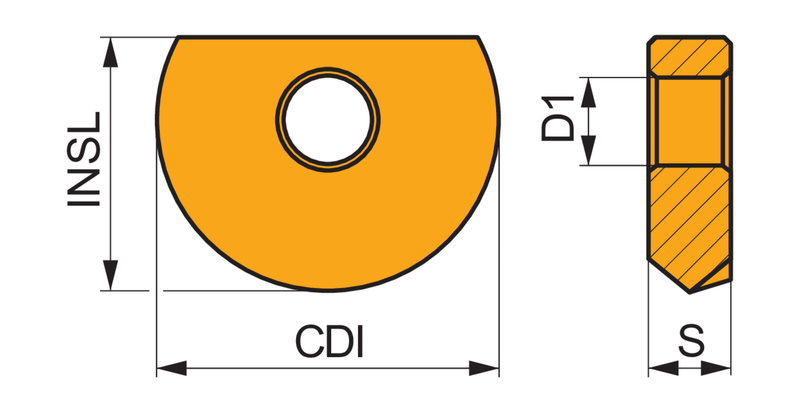

PPH 2500-CL1:2003 — Line Drawing PDF Download
