PPH 3000-CL1:2003
PPH 3000-CL1:2003

PPH 3000-CL1:2003

UGC DOR7156086
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.43 CAD - $105.43 CAD
$105.43 CAD
$105.43 CAD - $105.43 CAD
$105.43 CAD

Vendu en lots de : 5

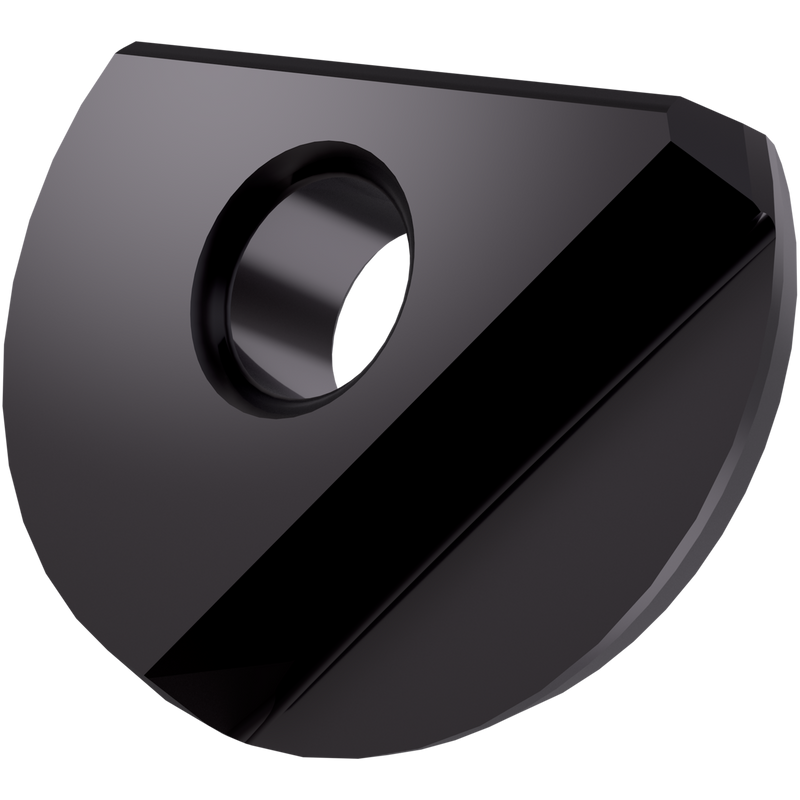

Plaquette de fraisage à copier à bout sphérique d'un diamètre de 1.1811" pour une profondeur de coupe maximale de .1181", géométrie CL1 et carbure WC-Co à grains fins revêtu PVD 2003 dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec des fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH 3000-CL1:2003
Grade2003
Chipbreaker (CBMD)CL1
Product Number7156086
Product FamilyHPP
Insert Geometry
Insert DesignHPP
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.276"
Insert Thickness — mm (S)7.0 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7156086
EAN3603603162426
File Type Download

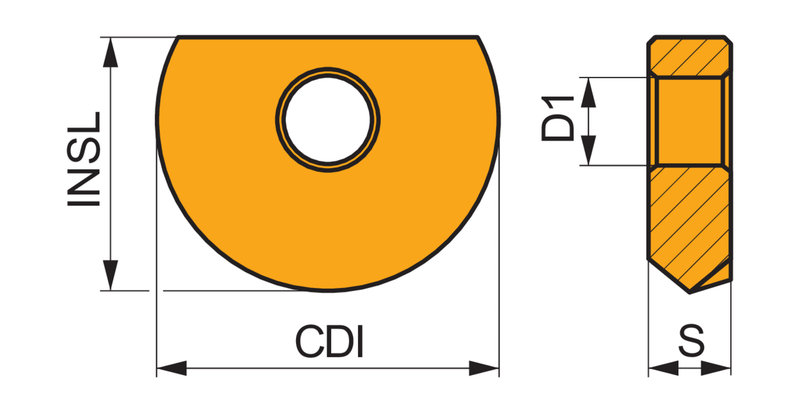

PPH 3000-CL1:2003 — Line Drawing PDF Download
