PPH 0800-CL4:8215
PPH 0800-CL4:8215

PPH 0800-CL4:8215

UGC DOR7156088
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.03 CAD - $46.03 CAD
$46.03 CAD
$46.03 CAD - $46.03 CAD
$46.03 CAD

Vendu en lots de : 10

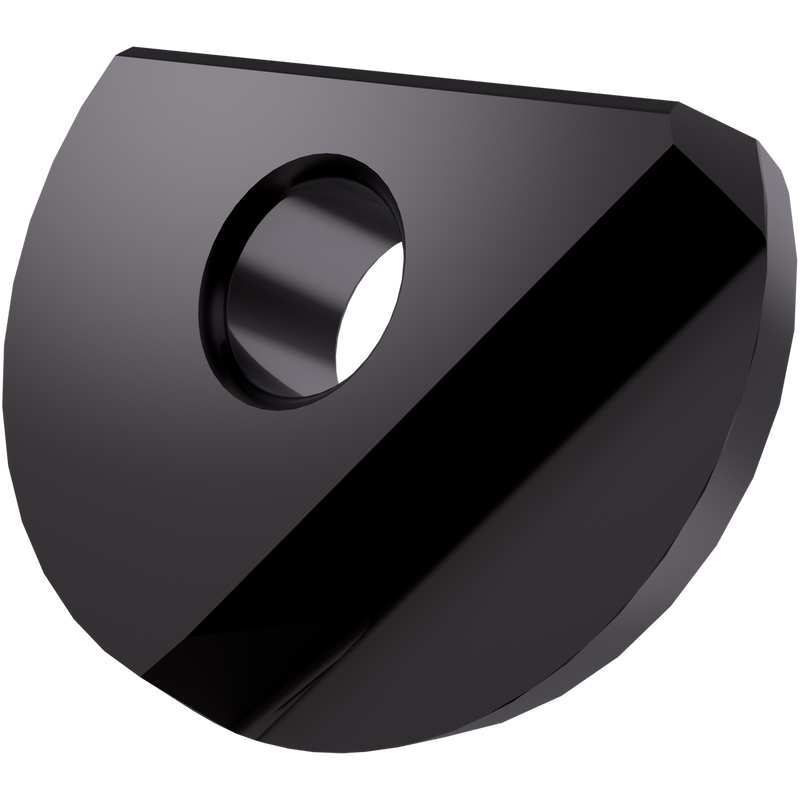

Plaquette à copier torique d'un diamètre de 0,315" pour une profondeur de coupe maximale de 0,0315", géométrie CL4 et carbure WC-Co à grain fin revêtu PVD 8215 dans les plages de grades ISO P10-P20 et K10-K25 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH 0800-CL4:8215
Grade8215
Chipbreaker (CBMD)CL4
Product Number7156088
Product FamilyHPP
Insert Geometry
Insert DesignHPP
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.4 mm
Depth of Cut Max — in (APMX)0.031"
Depth of Cut Max — mm (APMX)0.8 mm
Tool Information
Reference Numbers
EDP Number7156088
EAN3603603162440
File Type Download

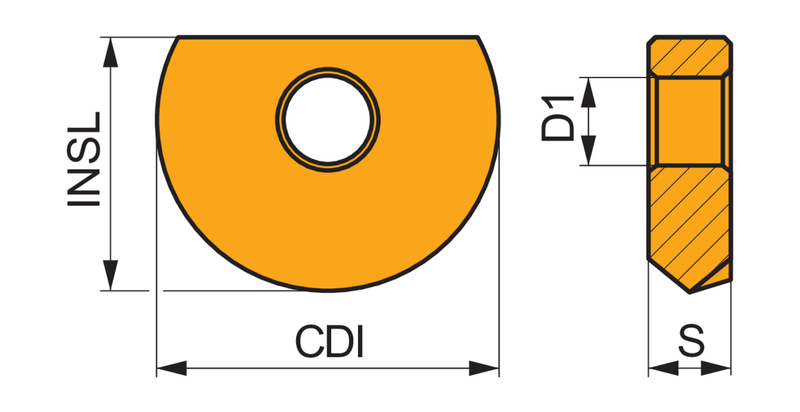

PPH 0800-CL4:8215 — Line Drawing PDF Download
