PPH 1000-CL4:8215
PPH 1000-CL4:8215

PPH 1000-CL4:8215

UGC DOR7156089
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.31 CAD - $47.31 CAD
$47.31 CAD
$47.31 CAD - $47.31 CAD
$47.31 CAD

Vendu en lots de : 10

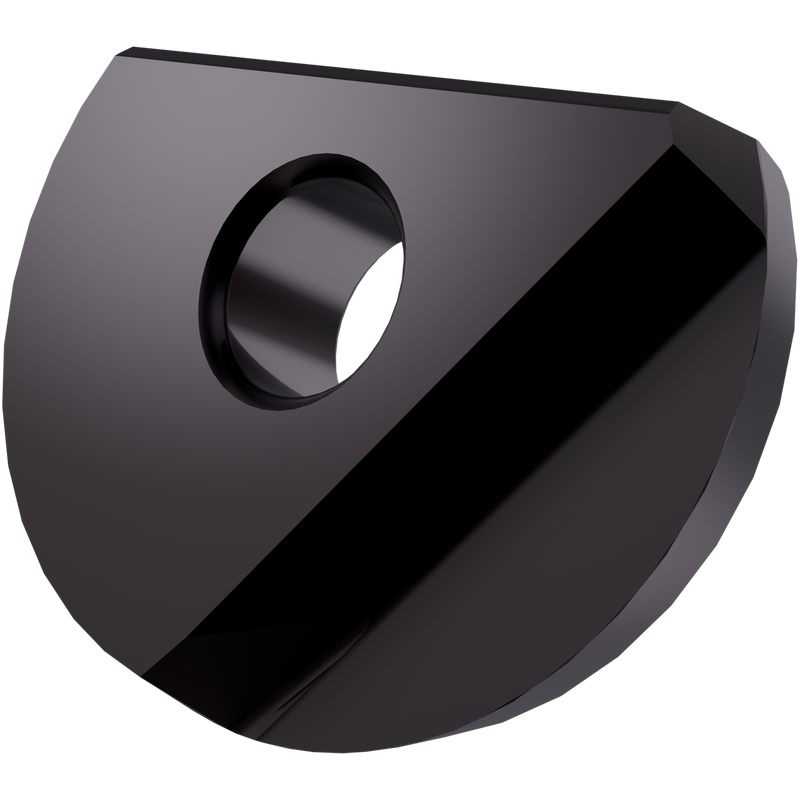

Plaquette à copier à rayon de nez de 10 mm de diamètre pour une profondeur de coupe maximale de 1 mm, géométrie CL4 et carbure WC-Co à grains fins revêtu PVD 8215 dans les plages de nuances ISO P10-P20 et K10-K25 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH 1000-CL4:8215
Grade8215
Chipbreaker (CBMD)CL4
Product Number7156089
Product FamilyHPP
Insert Geometry
Insert DesignPPH
Insert Shape Code (SC)P - pentagonale
Insert Thickness — in (S)0.102"
Insert Thickness — mm (S)2.6 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7156089
EAN3603603162457
File Type Download

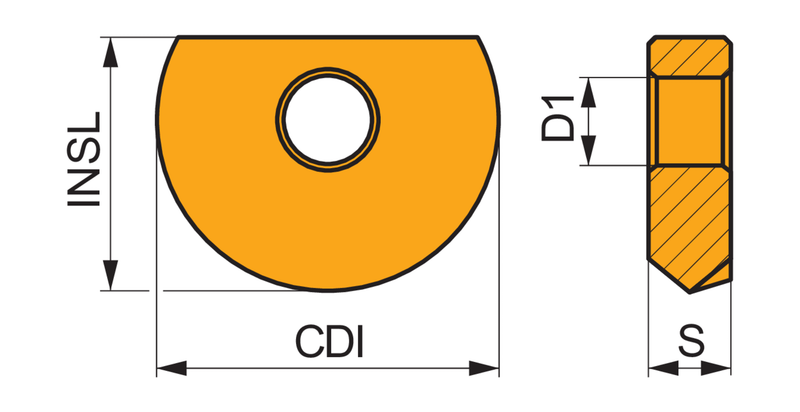

PPH 1000-CL4:8215 — Line Drawing PDF Download
