PPH 1200-CL4:8215
PPH 1200-CL4:8215

PPH 1200-CL4:8215

UGC DOR7156090
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.57 CAD - $50.57 CAD
$50.57 CAD
$50.57 CAD - $50.57 CAD
$50.57 CAD

Vendu en lots de : 10

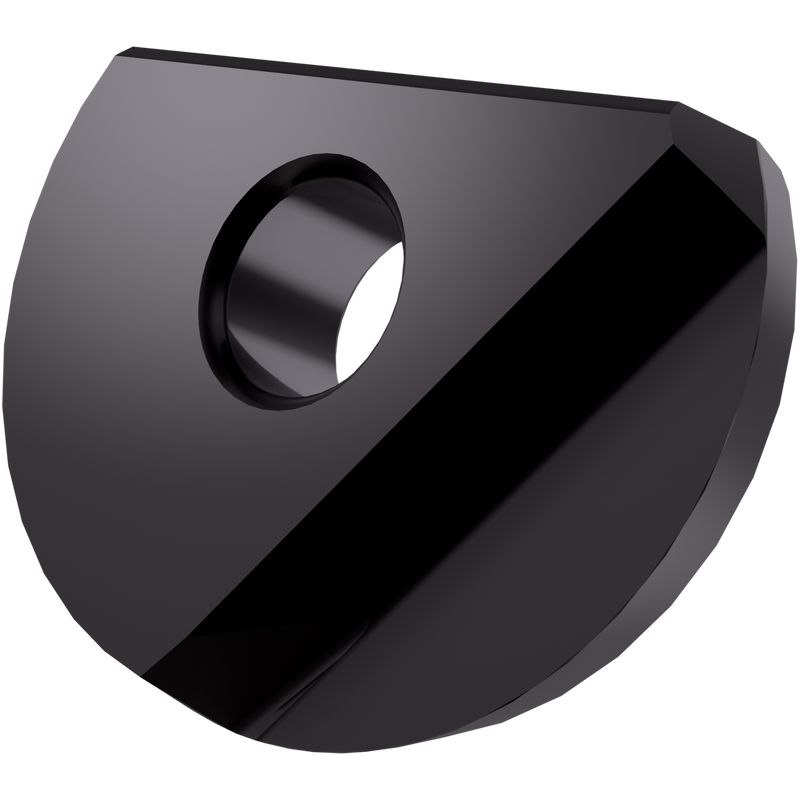

Plaquette de fraisage-copiage à bout sphérique d'un diamètre de 0,4724" pour une profondeur de coupe maximale de 0,0472", géométrie CL4 et carbure WC-Co à grain fin revêtu PVD 8215 dans les plages de nuances ISO P10-P20 et K10-K25 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH 1200-CL4:8215
Grade8215
Chipbreaker (CBMD)CL4
Product Number7156090
Product FamilyHPP
Insert Geometry
Insert DesignHPP
Insert Shape Code (SC)P - pentagonale
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Depth of Cut Max — in (APMX)0.047"
Depth of Cut Max — mm (APMX)1.2 mm
Tool Information
Reference Numbers
EDP Number7156090
EAN3603603162464
File Type Download

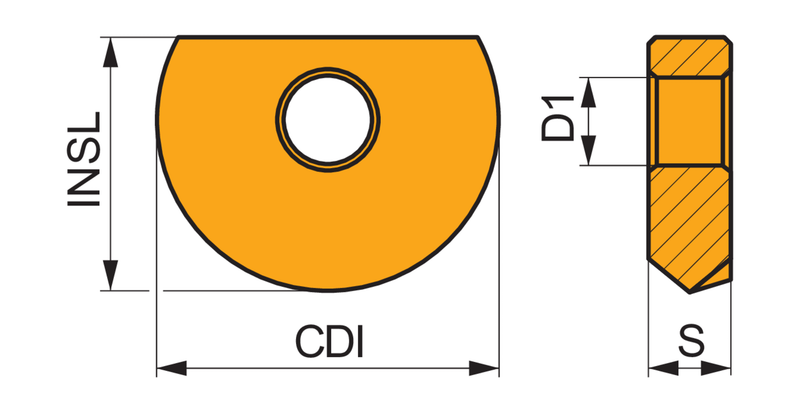

PPH 1200-CL4:8215 — Line Drawing PDF Download
