PPH 2000-CL4:8215
PPH 2000-CL4:8215

PPH 2000-CL4:8215

UGC DOR7156092
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.09 CAD - $60.09 CAD
$60.09 CAD
$60.09 CAD - $60.09 CAD
$60.09 CAD

Vendu en lots de : 10

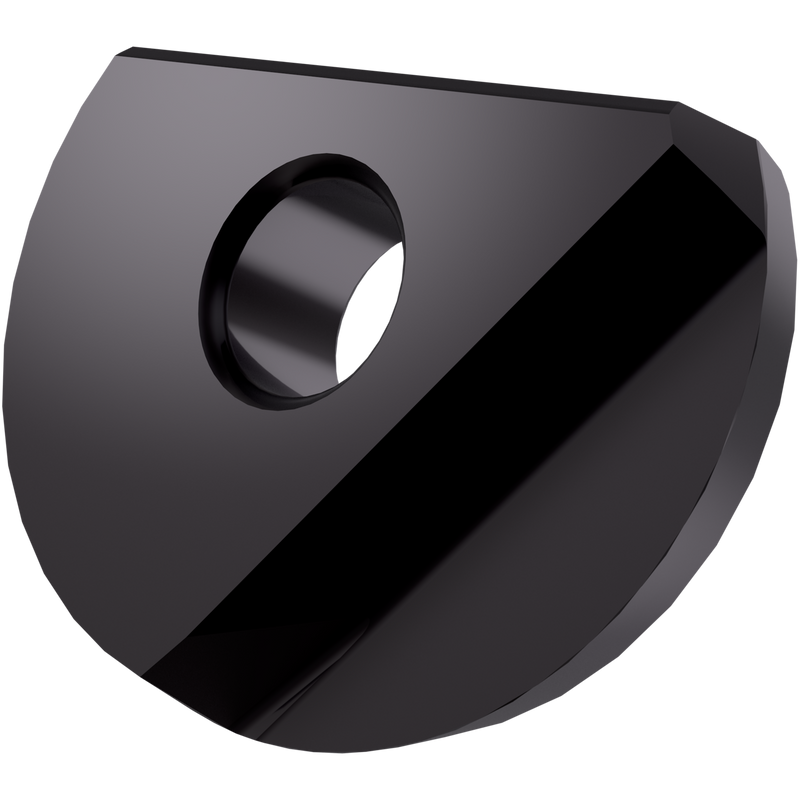

Plaquette fraise boule à copier d'un diamètre de 19,99 mm pour une profondeur de coupe maximale de 1,99 mm, géométrie CL4 et carbure WC-Co à grain fin revêtu PVD 8215, dans les plages de nuances ISO P10-P20 et K10-K25 pour l'usinage d'acier, de fonte et de matériaux trempés avec des fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH 2000-CL4:8215
Grade8215
Chipbreaker (CBMD)CL4
Product Number7156092
Product FamilyHTAP
Insert Geometry
Insert DesignHPP
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7156092
EAN3603603162488
File Type Download

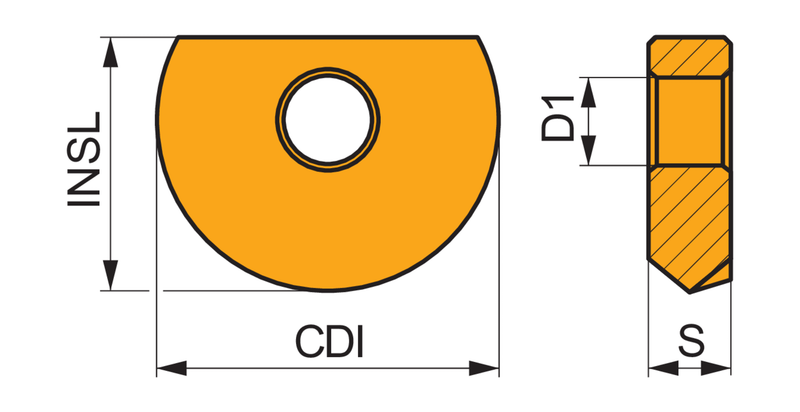

PPH 2000-CL4:8215 — Line Drawing PDF Download
