PPHE 1200-SM1:8215
PPHE 1200-SM1:8215

PPHE 1200-SM1:8215

UGC DOR7156097
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.17 CAD - $36.17 CAD
$36.17 CAD
$36.17 CAD - $36.17 CAD
$36.17 CAD

Vendu en lots de : 10

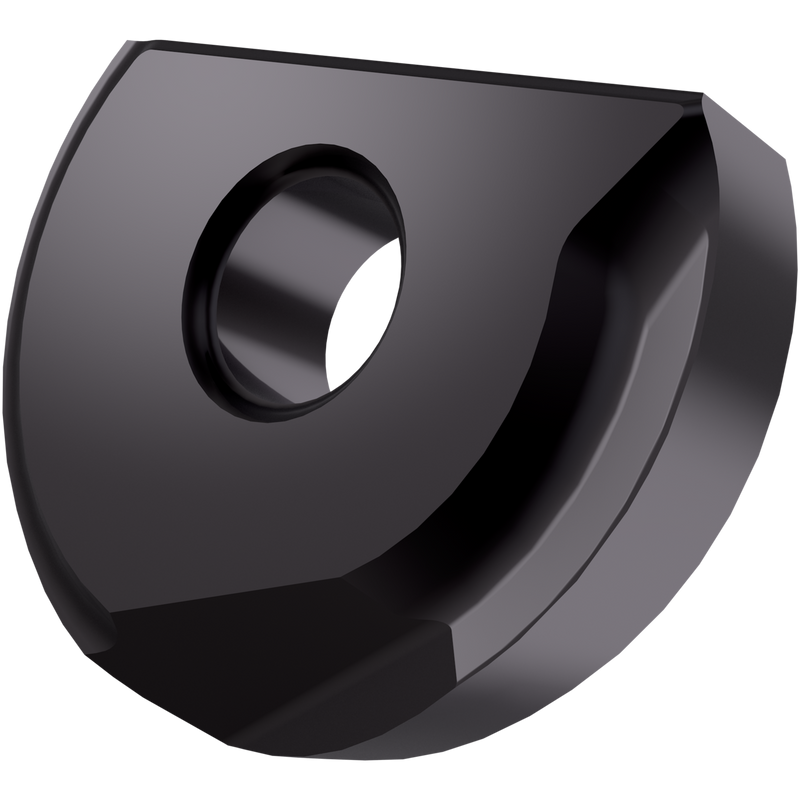

Fraise-copie à bout sphérique d'un diamètre de 12 mm pour une profondeur de coupe maximale de 1,2 mm, géométrie SM1 et carbure de WC-Co à grain fin revêtu PVD 8215, dans les plages de nuances ISO P10-P20 et K10-K25 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises-copies K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHE 1200-SM1:8215
Grade8215
Chipbreaker (CBMD)SM1
Product Number7156097
Product FamilyHTP
Insert Geometry
Insert DesignHPP
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Depth of Cut Max — in (APMX)0.047"
Depth of Cut Max — mm (APMX)1.2 mm
Tool Information
Reference Numbers
EDP Number7156097
EAN3603603162532
File Type Download

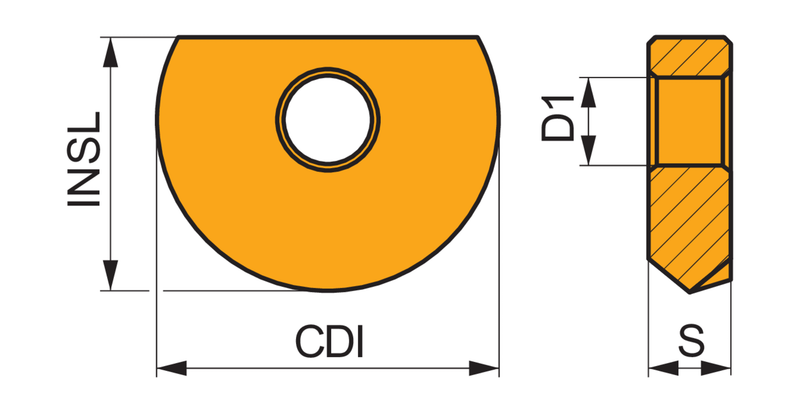

PPHE 1200-SM1:8215 — Line Drawing PDF Download
