PPHE 1600-SM1:8215
PPHE 1600-SM1:8215

PPHE 1600-SM1:8215

UGC DOR7156098
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.29 CAD - $37.29 CAD
$37.29 CAD
$37.29 CAD - $37.29 CAD
$37.29 CAD

Vendu en lots de : 10

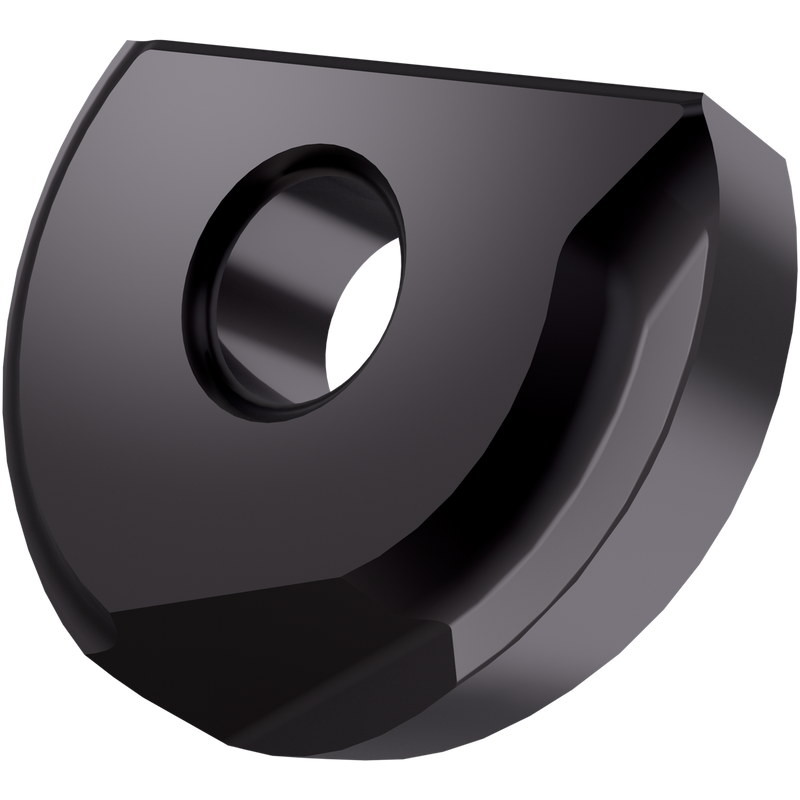

Plaquette fraise boule à copier d'un diamètre de 0,6299" pour une profondeur de coupe maximale de 0,063", géométrie SM1 et carbure WC-Co à grains fins revêtu PVD 8215 dans les classes ISO P10-P20 et K10-K25 pour l'usinage de l'acier, de la fonte et de matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHE 1600-SM1:8215
Grade8215
Chipbreaker (CBMD)SM1
Product Number7156098
Product FamilyHPP
Insert Geometry
Insert DesignHPP
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.157"
Insert Thickness — mm (S)4.0 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7156098
EAN3603603162549
File Type Download

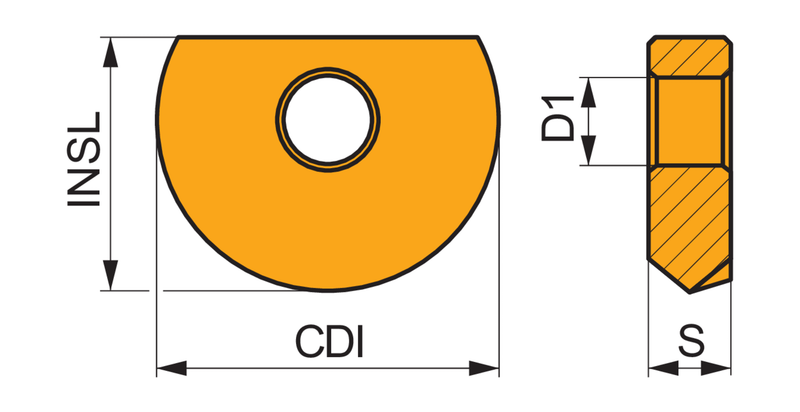

PPHE 1600-SM1:8215 — Line Drawing PDF Download
