PPHE 2000-SM1:8215
PPHE 2000-SM1:8215

PPHE 2000-SM1:8215

UGC DOR7156099
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.09 CAD - $51.09 CAD
$51.09 CAD
$51.09 CAD - $51.09 CAD
$51.09 CAD

Vendu en lots de : 10

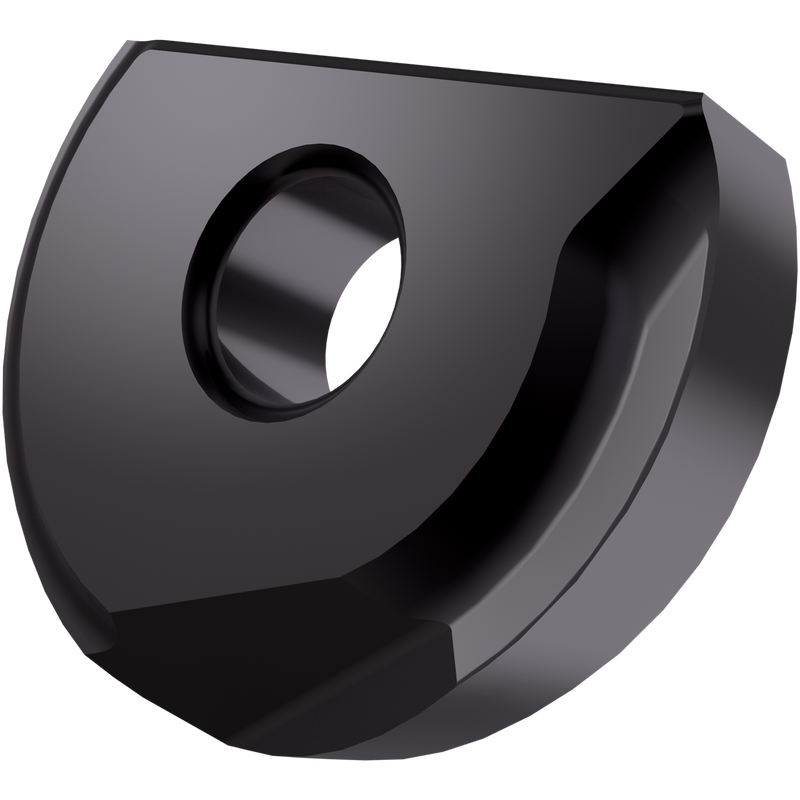

Plaquette à copier rayon de bout avec un diamètre de 20 mm pour une profondeur de coupe maximale de 2 mm, géométrie SM1 et carbure WC-Co à grains fins revêtu PVD 8215, dans les plages de nuances ISO P10-P20 et K10-K25 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHE 2000-SM1:8215
Grade8215
Chipbreaker (CBMD)SM1
Product Number7156099
Product FamilyPPH
Insert Geometry
Insert DesignHTAP
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7156099
EAN3603603162556
File Type Download

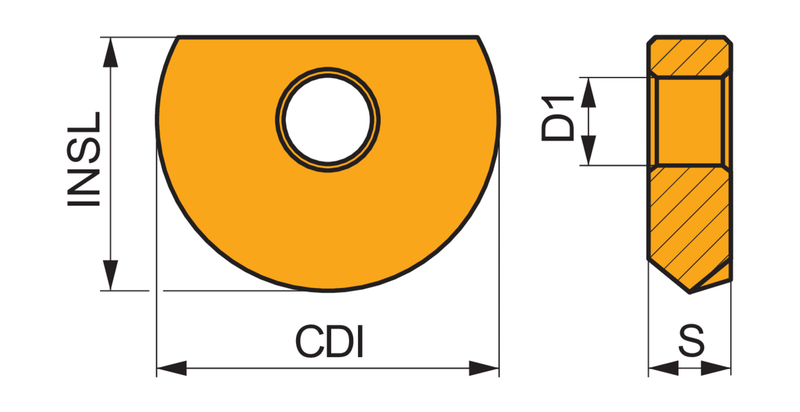

PPHE 2000-SM1:8215 — Line Drawing PDF Download
