PPHT 100005-A2:2003
PPHT 100005-A2:2003

PPHT 100005-A2:2003

UGC DOR7156110
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.14 CAD - $59.14 CAD
$59.14 CAD
$59.14 CAD - $59.14 CAD
$59.14 CAD

Vendu en lots de : 10

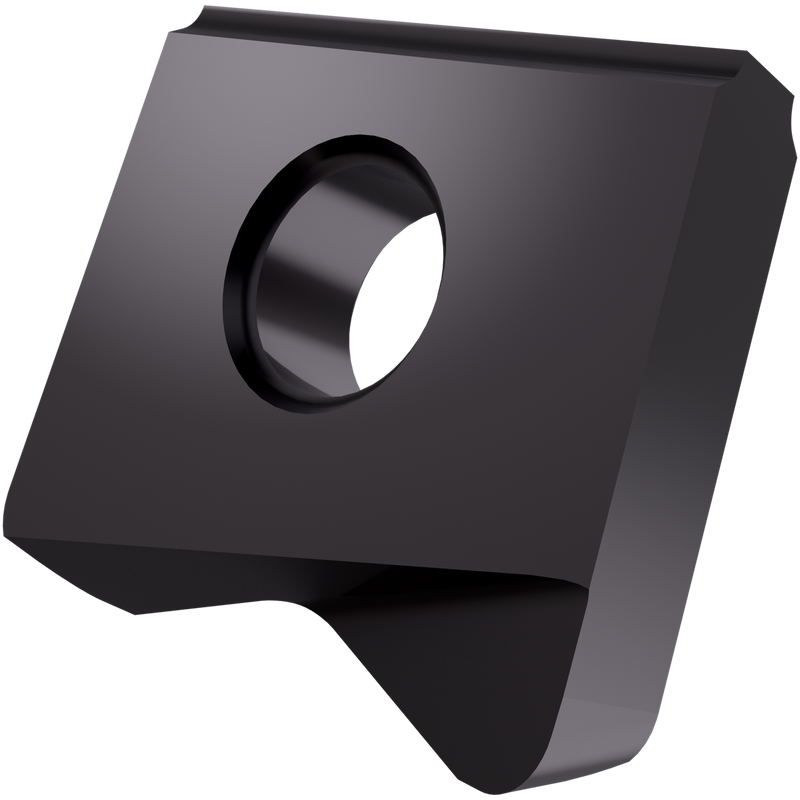

Plaquette toroïdale à copier d'un diamètre de 10 mm et d'un rayon de pointe de 0,5 mm pour une profondeur de coupe maximale de 0,5 mm, géométrie A2 et carbure WC-Co à grains fins revêtu PVD 2003 dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec des fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHT 100005-A2:2003
Grade2003
Chipbreaker (CBMD)A2
Product Number7156110
Product FamilyPPHT
Insert Geometry
Insert DesignPPHT
Insert Shape Code (SC)P - pentagonale
Insert Thickness — in (S)0.102"
Insert Thickness — mm (S)2.6 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.02"
Depth of Cut Max — mm (APMX)0.5 mm
Tool Information
Reference Numbers
EDP Number7156110
EAN3603603162662
File Type Download

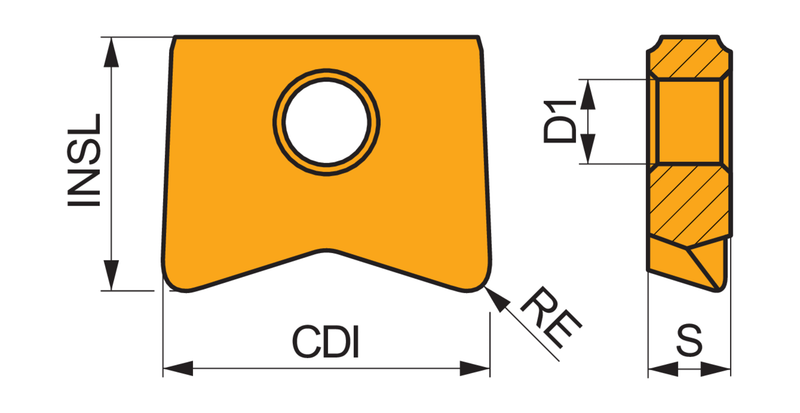

PPHT 100005-A2:2003 — Line Drawing PDF Download
