PPHT 100008-A2:2003
PPHT 100008-A2:2003

PPHT 100008-A2:2003

UGC DOR7156111
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.14 CAD - $59.14 CAD
$59.14 CAD
$59.14 CAD - $59.14 CAD
$59.14 CAD

Vendu en lots de : 10

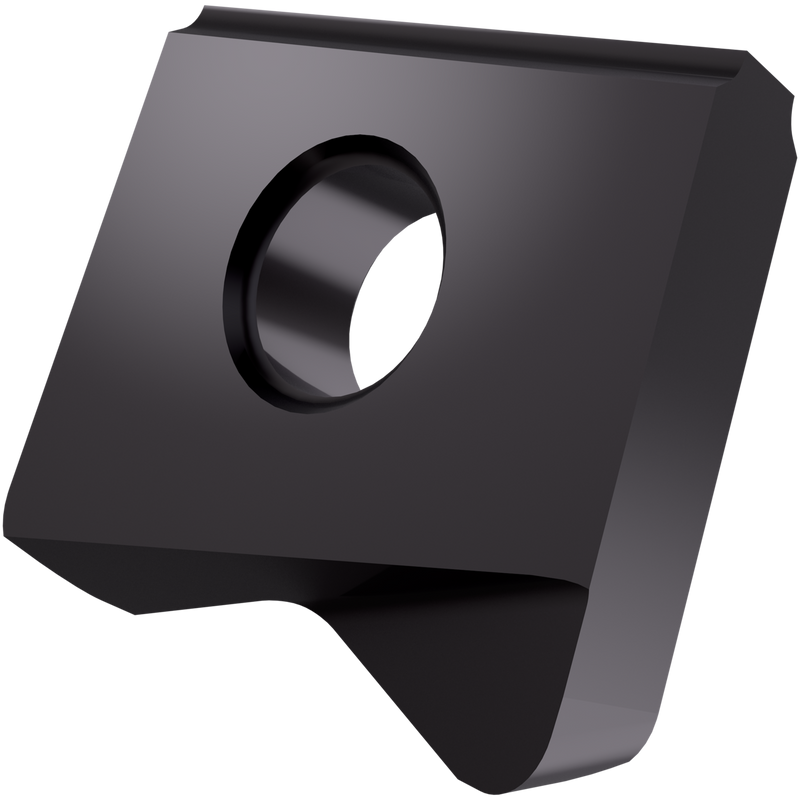

Plaquette torique à copier d’un diamètre de 10 mm et d’un rayon de pointe de 0,8 mm pour une profondeur de coupe maximale de 0,8 mm, une géométrie A2 et une nuance de carbure à grain fin WC-Co 2003 PVD dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l’usinage de l’acier, de la fonte et des matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHT 100008-A2:2003
Grade2003
Chipbreaker (CBMD)A2
Product Number7156111
Product FamilyPPHT
Insert Geometry
Insert DesignPPHT
Insert Shape Code (SC)P - pentagonale
Insert Thickness — in (S)0.102"
Insert Thickness — mm (S)2.6 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.031"
Depth of Cut Max — mm (APMX)0.8 mm
Tool Information
Reference Numbers
EDP Number7156111
EAN3603603162679
File Type Download

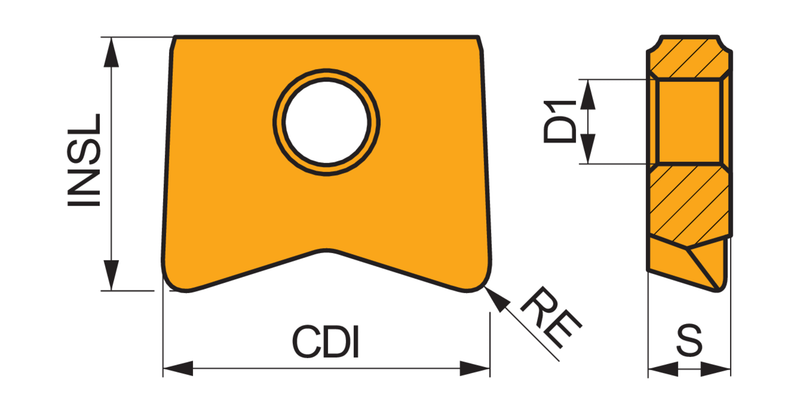

PPHT 100008-A2:2003 — Line Drawing PDF Download
