PPHT 120005-A2:2003
PPHT 120005-A2:2003

PPHT 120005-A2:2003

UGC DOR7156113
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.26 CAD - $63.26 CAD
$63.26 CAD
$63.26 CAD - $63.26 CAD
$63.26 CAD

Vendu en lots de : 10

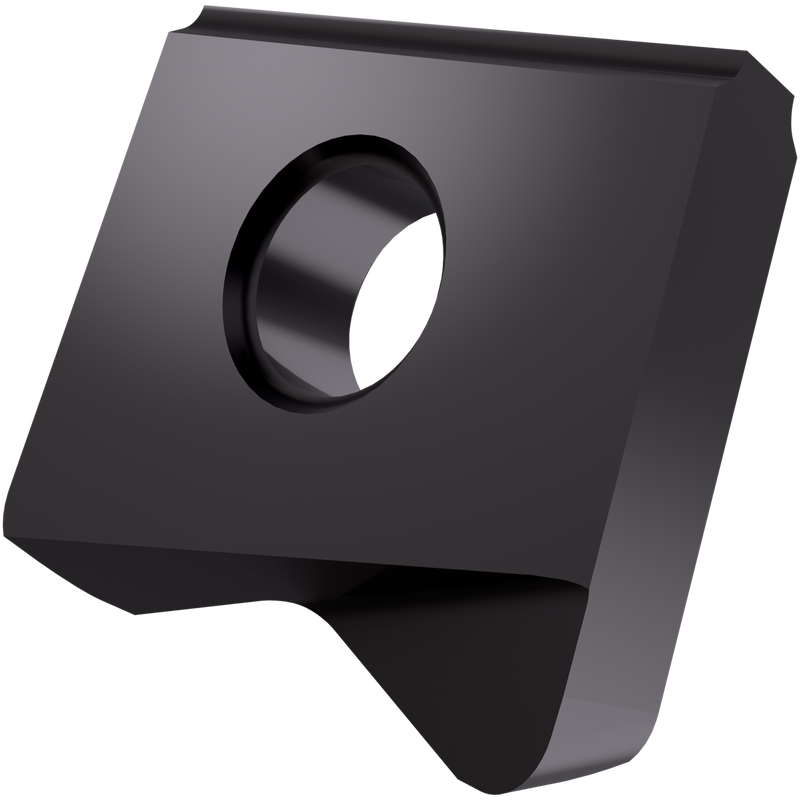

Plaquette de fraisage par copiage torique d'un diamètre de 12 mm et d'un rayon de coin de 0,5 mm pour une profondeur de coupe maximale de 0,5 mm, géométrie A2 et carbure WC-Co à grains fins revêtu PVD 2003 dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec des fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHT 120005-A2:2003
Grade2003
Chipbreaker (CBMD)A2
Product Number7156113
Product FamilyPCHT

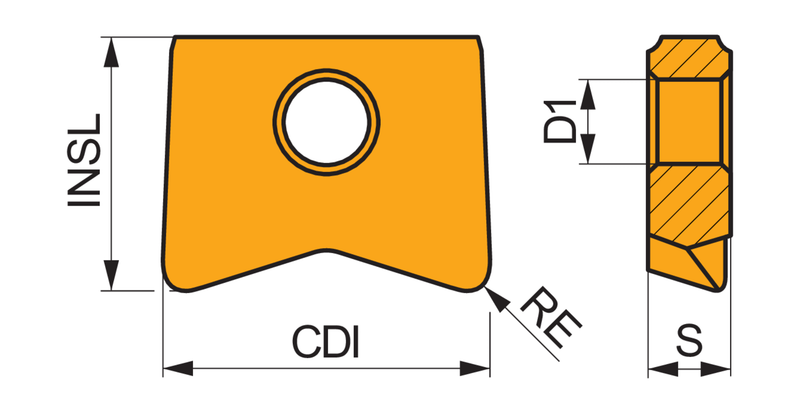

Insert Geometry
Insert DesignPVHT
Insert Shape Code (SC)P - pentagonale
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.02"
Depth of Cut Max — mm (APMX)0.5 mm
Tool Information
Reference Numbers
EDP Number7156113
EAN3603603162693
File Type Download
PPHT 120005-A2:2003 — Line Drawing PDF Download
