PPHT 120010-A2:2003
PPHT 120010-A2:2003

PPHT 120010-A2:2003

UGC DOR7156114
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.26 CAD - $63.26 CAD
$63.26 CAD
$63.26 CAD - $63.26 CAD
$63.26 CAD

Vendu en lots de : 10

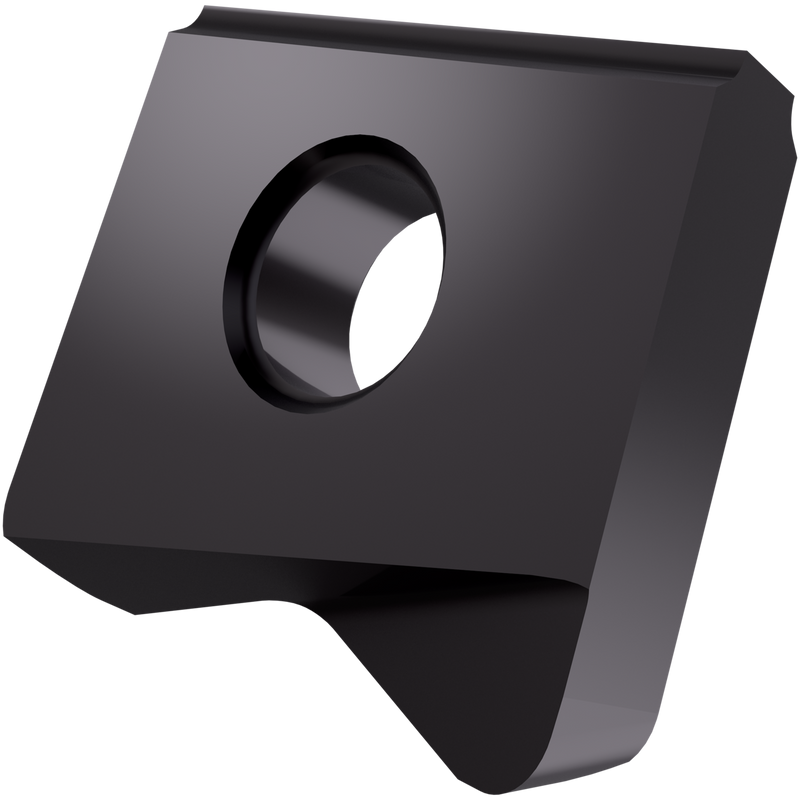

Insert de fraisage à copier toroïdal d'un diamètre de 11,99 mm et des rayons de coin de 1,00 mm pour une profondeur de coupe maximale de 1,00 mm, géométrie A2 et carbure WC-Co à grains fins revêtu PVD 2003 dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHT 120010-A2:2003
Grade2003
Chipbreaker (CBMD)A2
Product Number7156114
Product FamilyPPHT

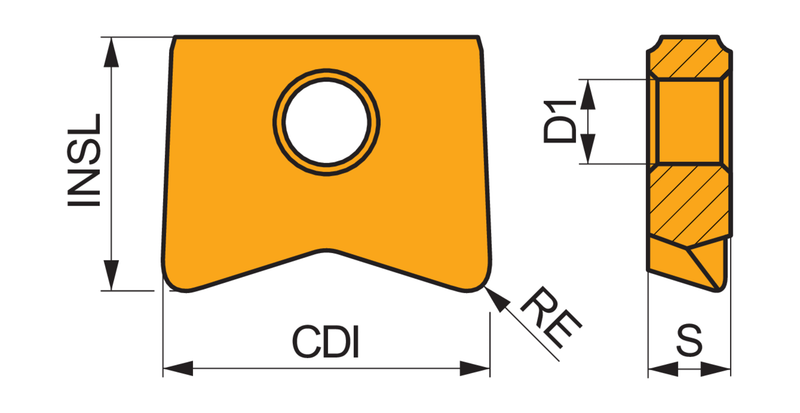

Insert Geometry
Insert DesignVHC (Vente Hors Circuit)
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7156114
EAN3603603162709
File Type Download
PPHT 120010-A2:2003 — Line Drawing PDF Download
